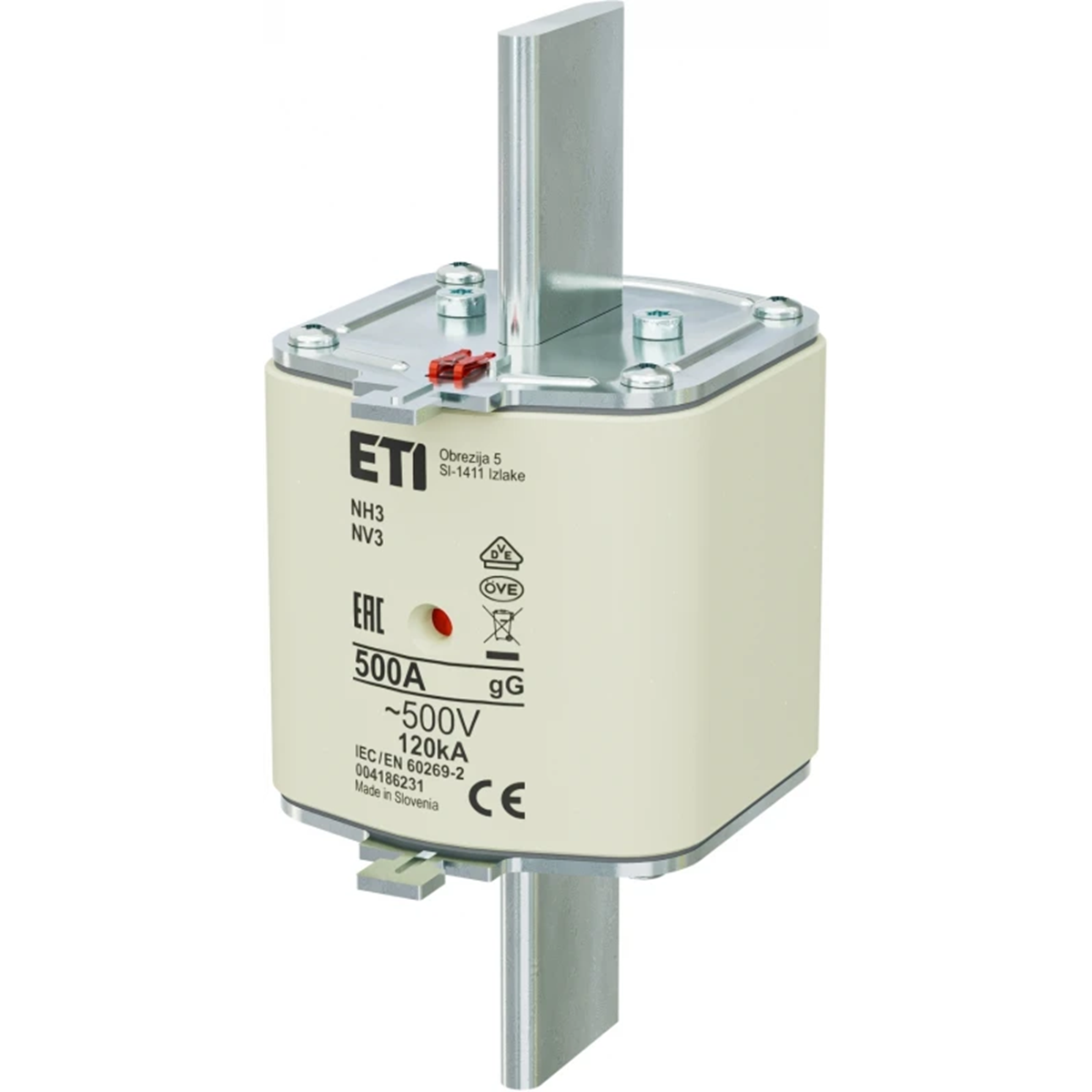

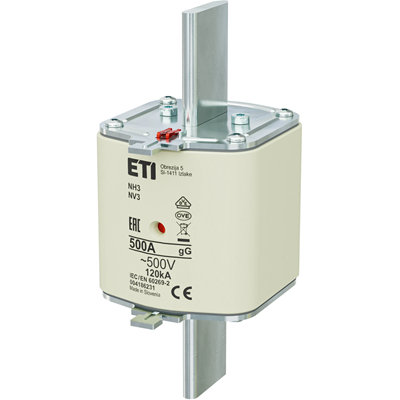

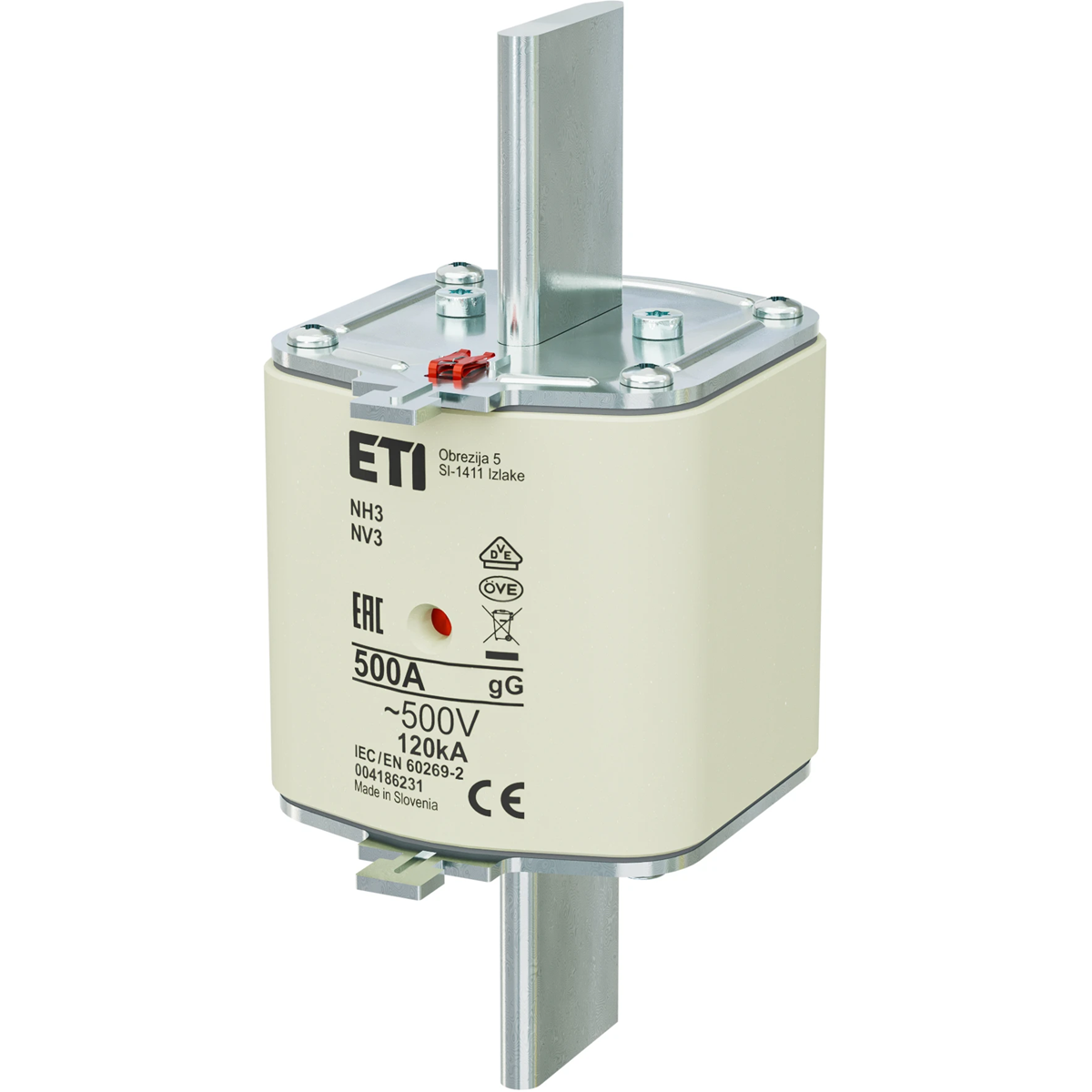

Name: KOMBI WT-3/gG 500A K industrial slow-blow fuse link
Brand: ETI POLAM
SKU: ABM600ETIP
Price: 78.38 PLN

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of high-voltage fuses:
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1, 3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr acc. to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Rated voltage [V]

500
Pieces in the package

3
Rated short-circuit capacity [kA]

120

Rated current [A]

500
Weight [g]

932
PKWIU

27.12.21.0

Other technical data

Voltage type

AC
Rated switching capacity

120 kA
Type of fuse status indicator

Combination fuse status indicator

Rated current

500 A
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

A kind of package	Pudełko	Pudełko
Quantity	1 pkg.	4 pkg.
Weight (kg)	2,500	-
Volume (m3)	0,003	-
Width (m)	0,166	0,295
Length (m)	0,150	0,235
Depth (m)	0,074	0,245
