KOMBI WT-3/gG 425A K industrial slow-blow fuse link 004186230

Name: KOMBI WT-3/gG 425A K industrial slow-blow fuse link
Brand: ETI POLAM
SKU: ABM077ETIP
Price: 78.73 PLN

local index:

ABM077ETIP

Catalog No:

004186230

EAN code:

5904722951853

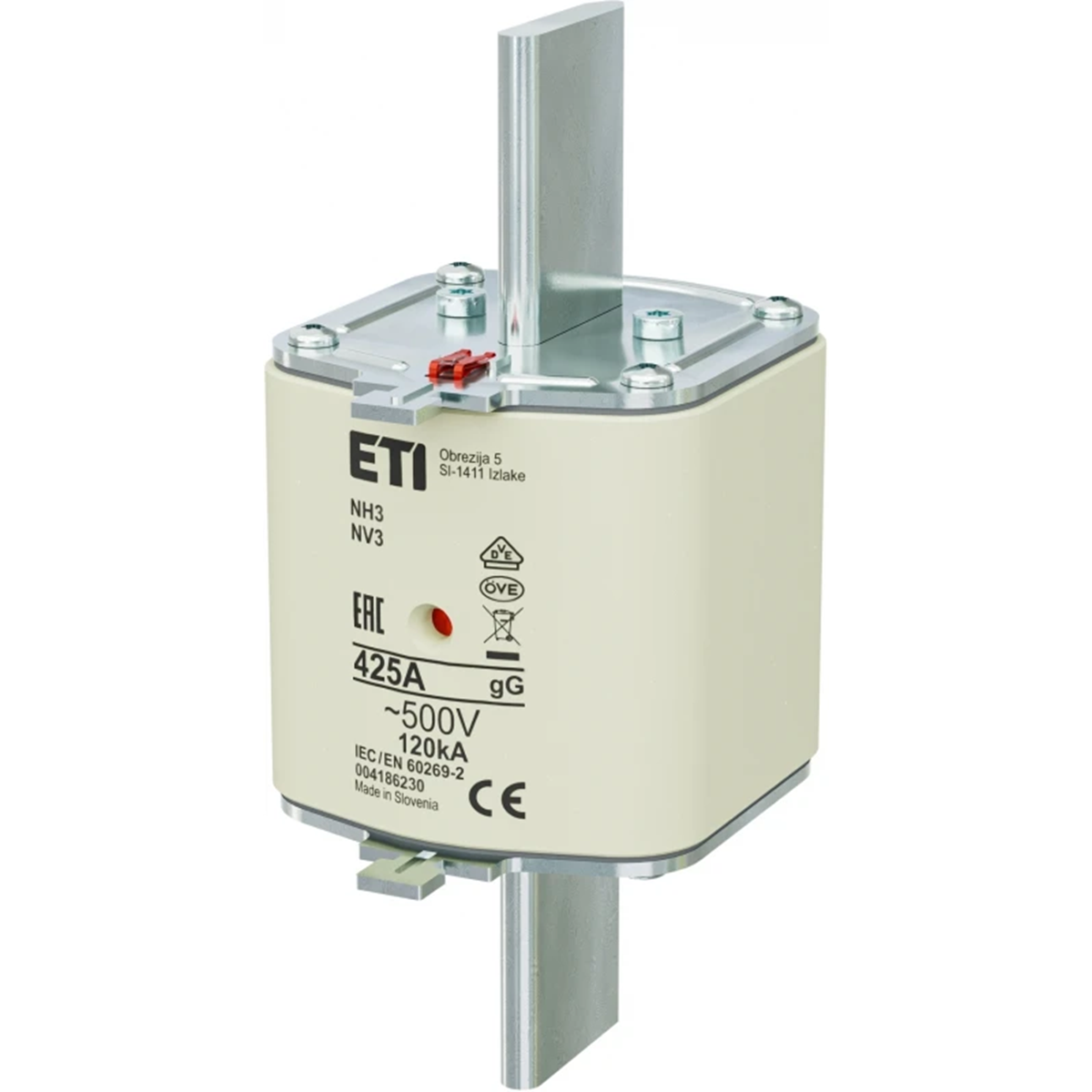

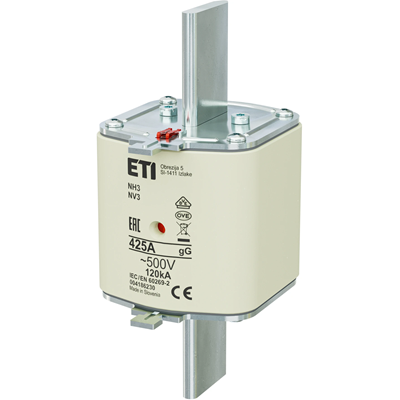

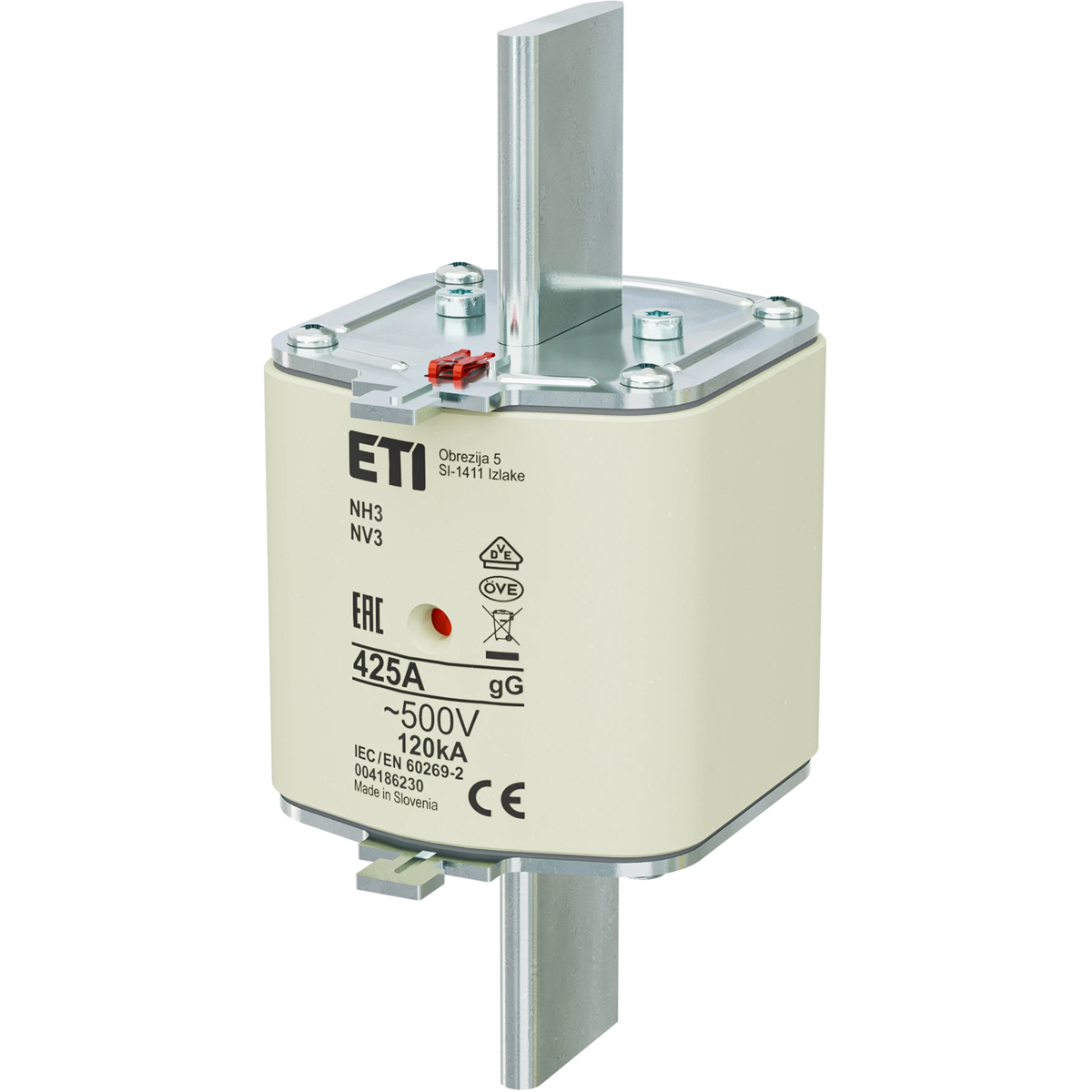

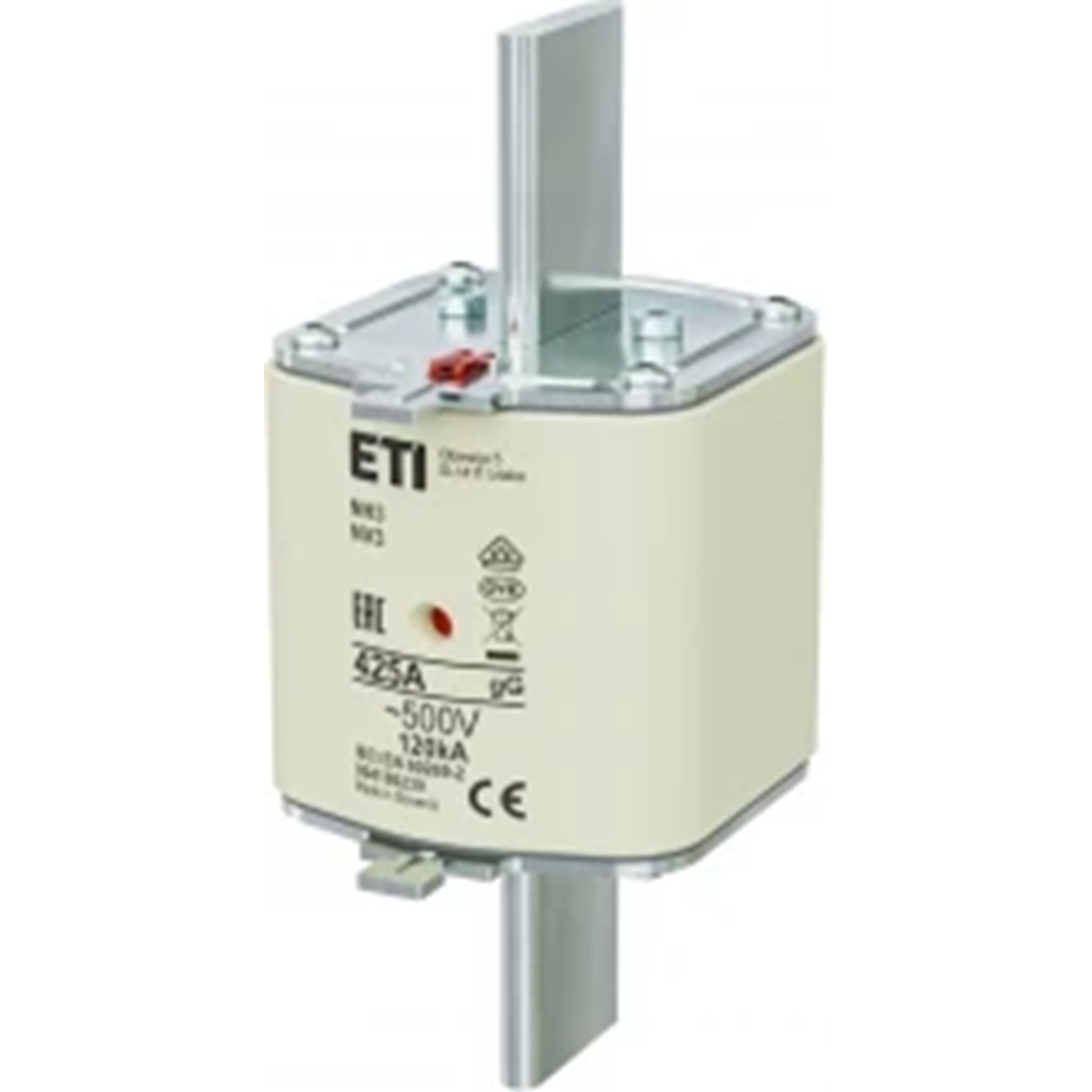

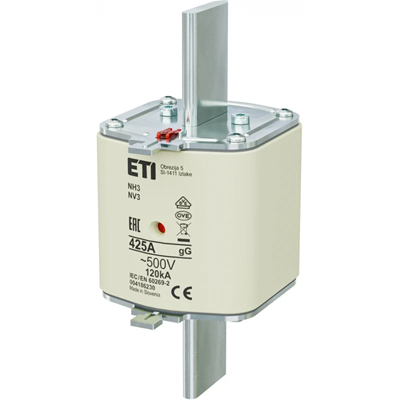

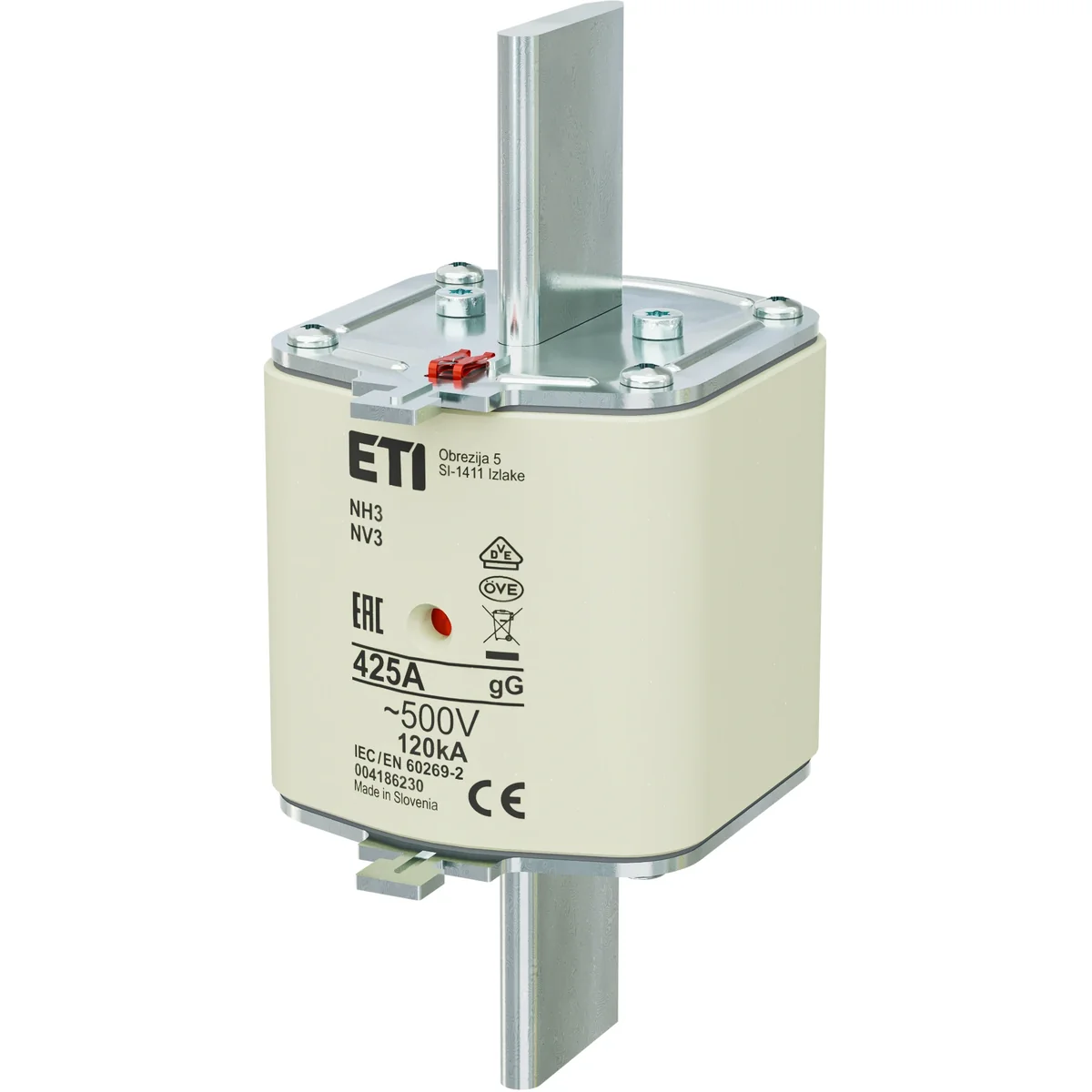

KOMBI WT-3/gG 425A K industrial slow-blow fuse link

Click on the photo to enlarge

Manufacturer: ETI POLAM

Characteristic: gG

Rated current [A]: 425

Pieces in the package: 3

See full description

Price:

78,73 €

gross / pkg.

(including VAT 23%)

26,24 € gross/pcs.

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pkg.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Industrial fuse links are designed to protect power installations against the effects of short circuits and overloads. Their electrical parameters and external dimensions comply with the requirements of the following standards: PN-93/E-06160, PN-IEC-269, VDE 0636. Industrial fuse links are mounted in fuse bases with an insulating holder. short-circuits and overloads - proper protection of motors with low rated current

Technical data

Characteristic

gG
Pieces in the package

3
Size

3
AC rated voltage [V]

500

Rated current [A]

425
Type

NH
Short-circuit breaking capacity [kA]

120(AC)
PKWIU

27.12.21.0

Other technical data

Voltage type

AC
Rated switching capacity

120 kA
Type of fuse status indicator

Combination fuse status indicator

Rated current

425 A
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package	Pudełko	Pudełko
Quantity	1 pkg.	4 pkg.
Weight (kg)	2,500	-
Volume (m3)	0,003	-
Width (m)	0,166	0,295
Length (m)	0,150	0,235
Depth (m)	0,074	0,245
