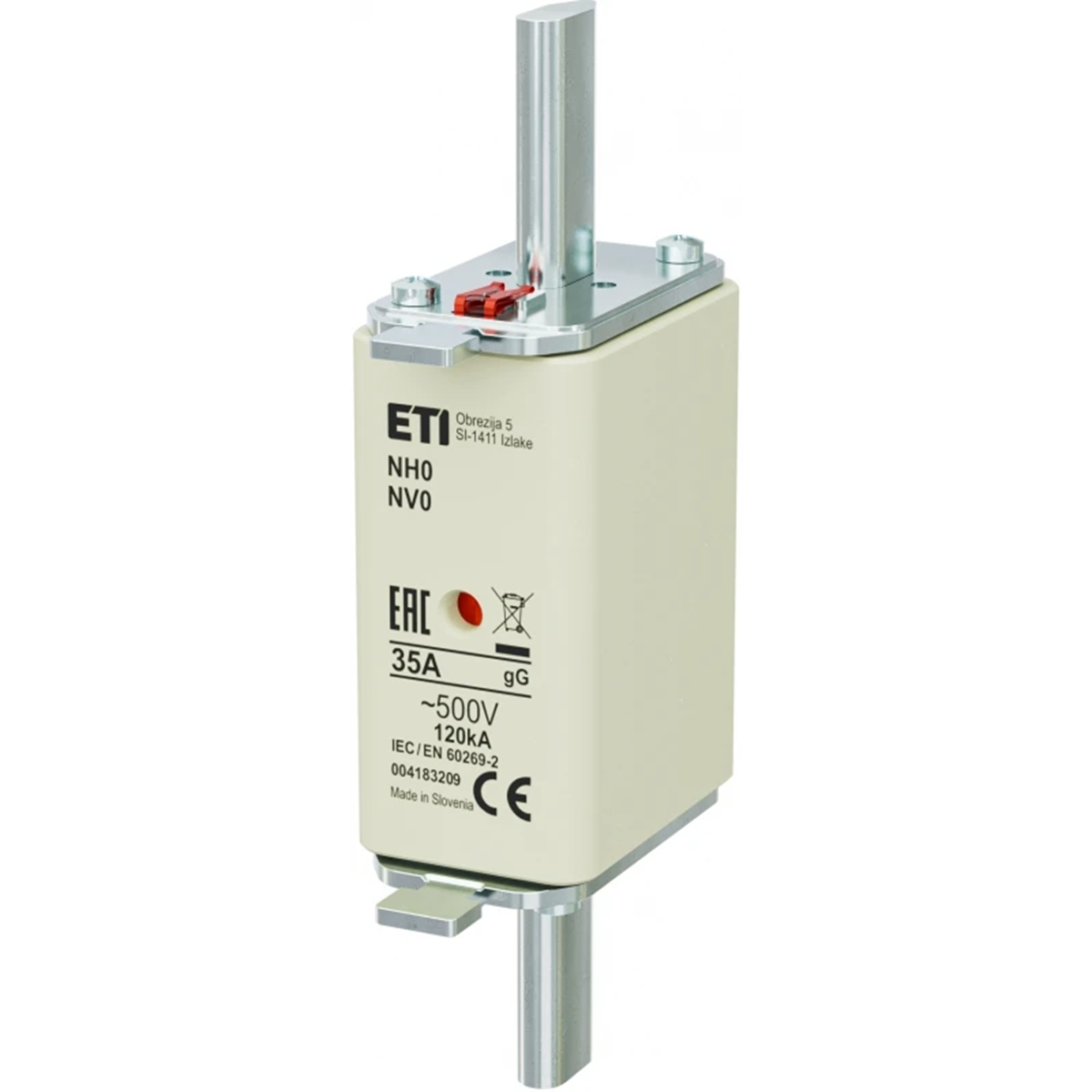

KOMBI WT-0/gG 35A K industrial slow-blow fuse link 004183209

local index:
ABM048ETIP
Catalog No:
004183209
EAN code:
3838895353935
Manufacturer: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 35
Pieces in the package: 3
Price:
35,01 €
gross / pkg.
(including VAT 23%)
11,67 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1.3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Technical data

  • Rated voltage [V]
    500
  • Pieces in the package
    3
  • Rated short-circuit capacity [kA]
    120
  • Rated current [A]
    35
  • Weight [g]
    226
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    35 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 1 pkg. 15 pkg.
Weight (kg) 0,550 -
Volume (m3) 0,001 -
Width (m) 0,139 0,295
Length (m) 0,150 0,235
Depth (m) 0,065 0,245
