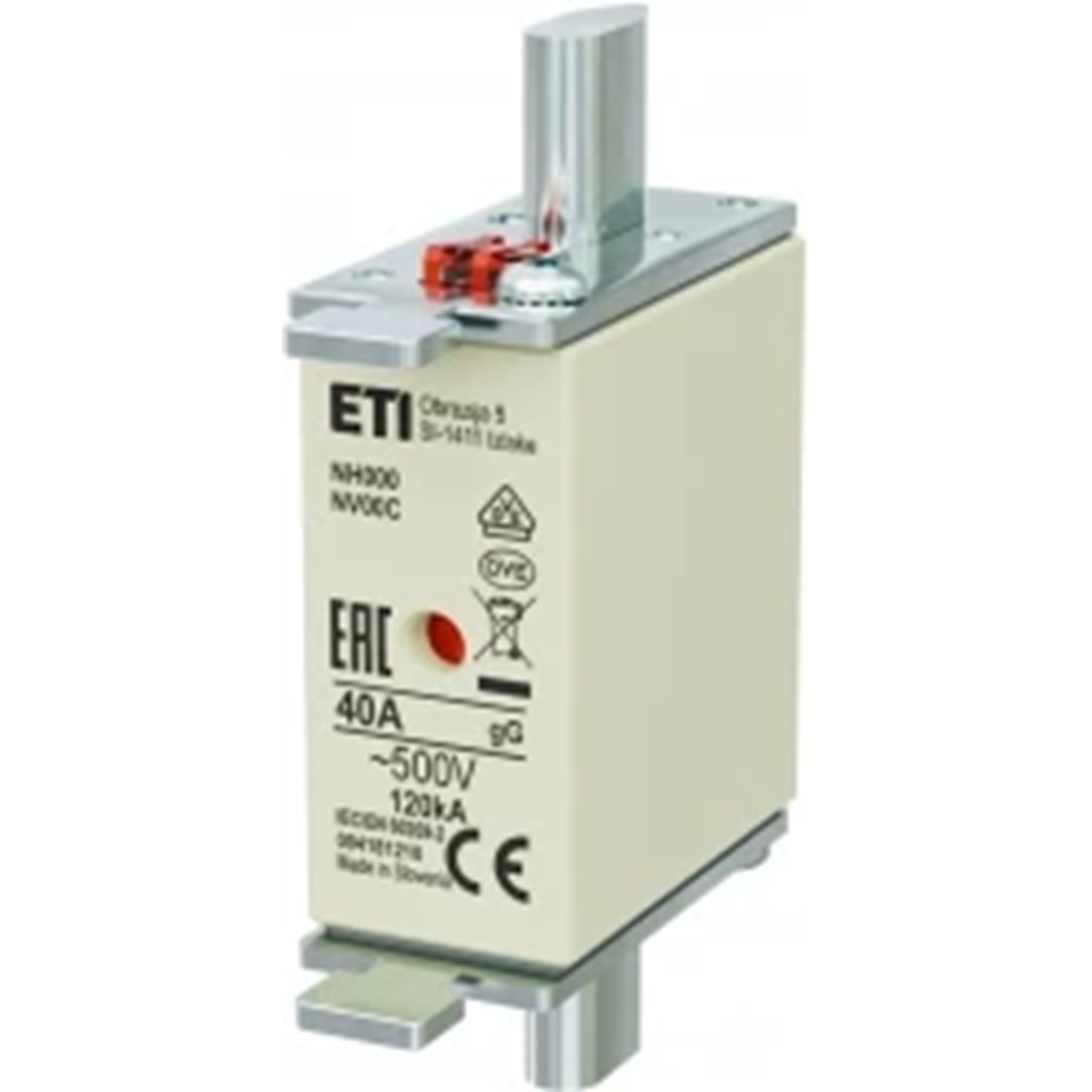

KOMBI WT-00C/gG 40A K industrial slow-blow fuse link 004181210

local index:
ABM068ETIP
Catalog No:
004181210
EAN code:
3838895353348
Manufacturer: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 40
Weight [g]: 125
Price:
4,45 €
gross / pcs.
(including VAT 23%)
35,60 € gross/kg.
Delivery in 3h
Accessible 127 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

WT KOMBI fuse links - is a new series of fuse links with a double activation indicator. The combination of both actuation indicators means that both the front indicator and the indicator located on the top cover will operate simultaneously when the insert burns out. KOMBI provides very good visibility of the operating status of the fuse link, both in fuse bases and fuse switch disconnectors

Technical data

  • Rated voltage [V]
    500
  • Weight [g]
    125
  • PKWIU
    27.12.21.0
  • Rated current [A]
    40
  • Rated short-circuit capacity [kA]
    120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    40 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 120 pcs.
Weight (kg) 0,370 -
Volume (m3) 0,000 -
Width (m) 0,065 0,295
Length (m) 0,085 0,235
Depth (m) 0,058 0,245
