Knob drive with three-position key with spring return nickel-plated ring SP22-SCAC\.

local index:
AKS110SPAM
Catalog No:
SP22-SCAC\.
EAN code:
5907723092013
Manufacturer: SPAMEL
Color: Black
Lens shape: Round
Face ring material: Plastic
Price:
12,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

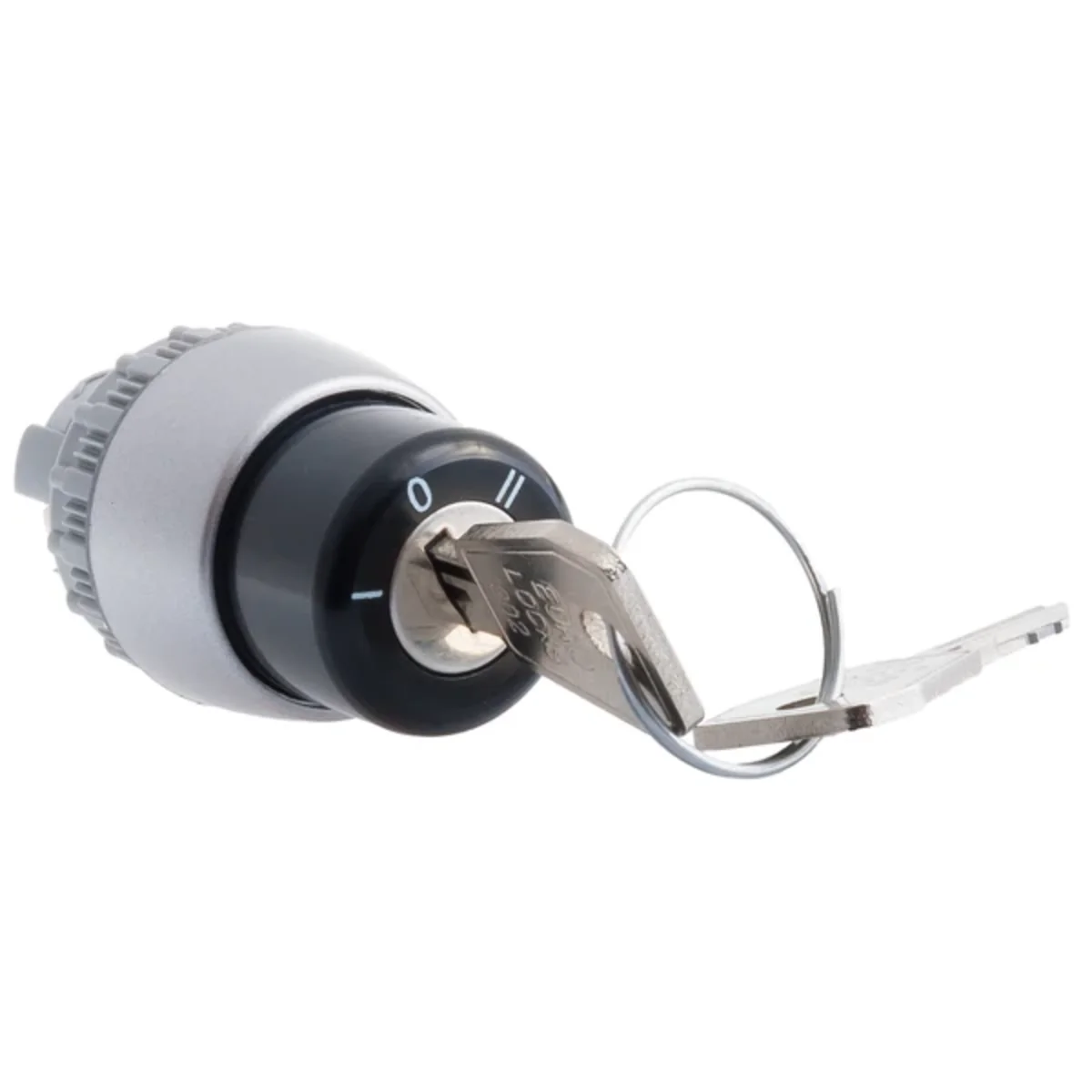

Knob drive with three-position key with spring return nickel-plated ring

Technical data

  • Color
    Black
  • Face ring material
    Plastic
  • Hole diameter [mm]
    22
  • Lens shape
    Round
  • Level of security
    IP65
  • Accurate color
    Black

Other technical data

  • Number of switch positions
    3
  • Suitable for illumination
    No
  • Construction type lens
    Round
  • Width opening
    29 mm
  • Switching function latching
    No
  • With front ring
    Yes
  • Colour front ring
    Grey
  • Type of control element
    Key
  • Colour control element
    Black
  • Hole diameter
    22 mm
  • Height opening
    29 mm
  • Spring-return
    Yes
  • Material front ring
    Plastic
  • Degree of protection (IP), front side
    IP65
