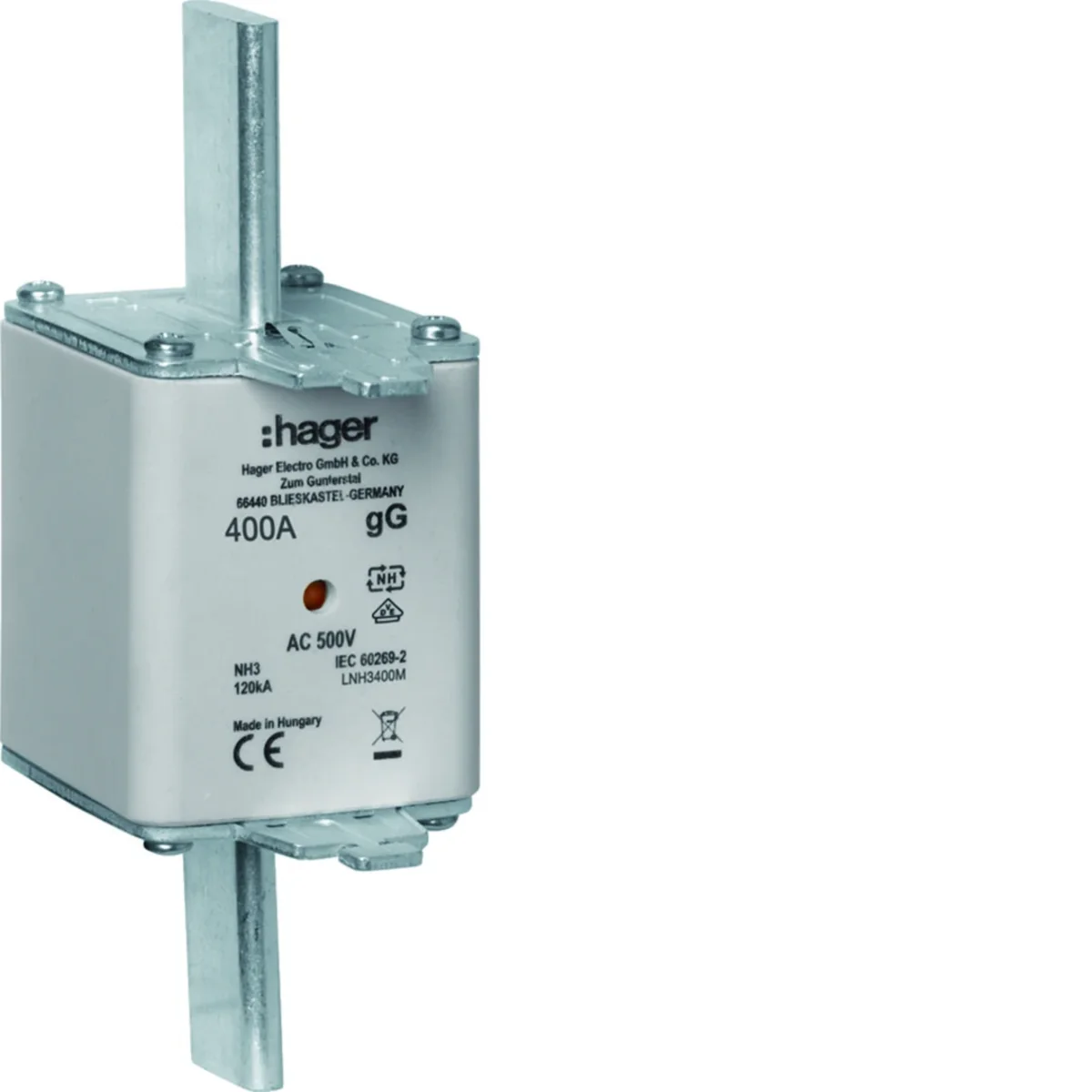

Knife fuse link NH3C gG with center indicator 400A 500V LNH3400M
local index:
ABI558HAGE
Catalog No:
LNH3400M
EAN code:
3250614121142
Price:
20,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
400A blade fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]34
-
Fuse link sizeNH3C
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]80
-
Rated current [A]400
-
Width [mm]66
-
Height [mm]150
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current400 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 384 pcs. |
| Weight (kg) | 0,604 | 0,635 | 7,955 | 277,560 |
| Width (m) | 0,066 | 0,095 | 0,290 | 0,800 |
| Length (m) | 0,150 | 0,060 | 0,140 | 1,500 |
| Depth (m) | 0,080 | 0,160 | 0,400 | 1,200 |
