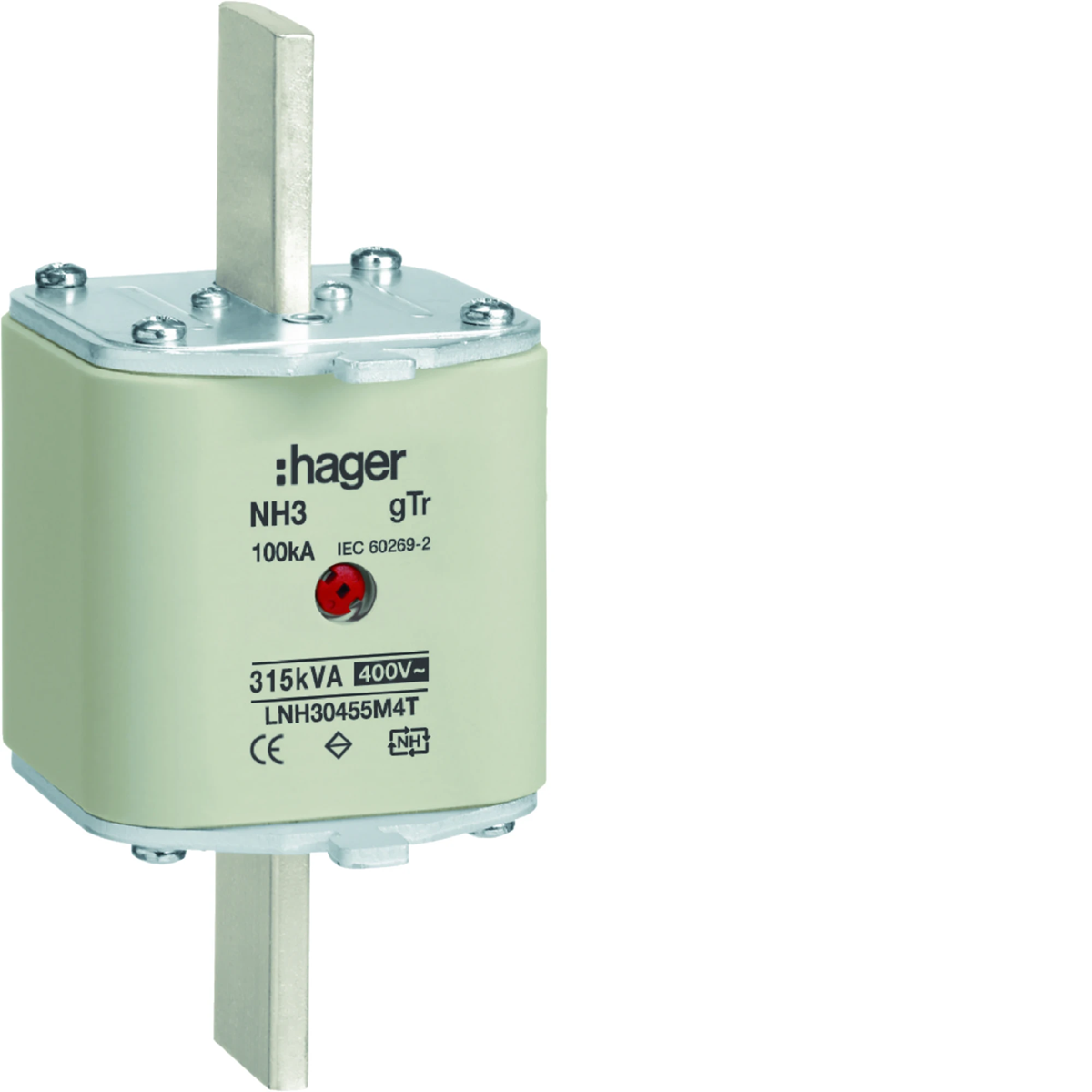

Knife fuse link NH3 gTr 400V 455A LNH30455M4T

local index:
ABI411HAGE
Catalog No:
LNH30455M4T
EAN code:
3250614126277
Manufacturer: HAGER
Characteristic: gTr
Length [mm]: 80
DC operating voltage [V]: 0/400/440
Price:
129,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

455A knife fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gTr,
  • trigger characteristics: gTr.

Technical data

  • Characteristic
    gTr
  • DC operating voltage [V]
    0/400/440
  • power loss [W]
    25
  • Fuse link size
    NH3
  • Rated switching voltage [V]
    0/400/440
  • PKWIU
    27.12.21.0
  • Length [mm]
    80
  • Rated current [A]
    455
  • Width [mm]
    66
  • Height [mm]
    150
  • Rated short-circuit breaking capacity Icn [kA]
    100

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Centre fuse status indicator
  • Rated current
    455 A
  • Utilization category
    gTr (Transformer protection)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Paleta Karton Pakiet
Quantity 224 pcs. 1 pcs. 1 pcs. 7 pcs.
Weight (kg) 277,400 1,084 1,085 7,950
Width (m) 0,800 0,066 0,095 0,290
Length (m) 1,500 0,150 0,075 0,135
Depth (m) 1,200 0,080 0,160 0,400
