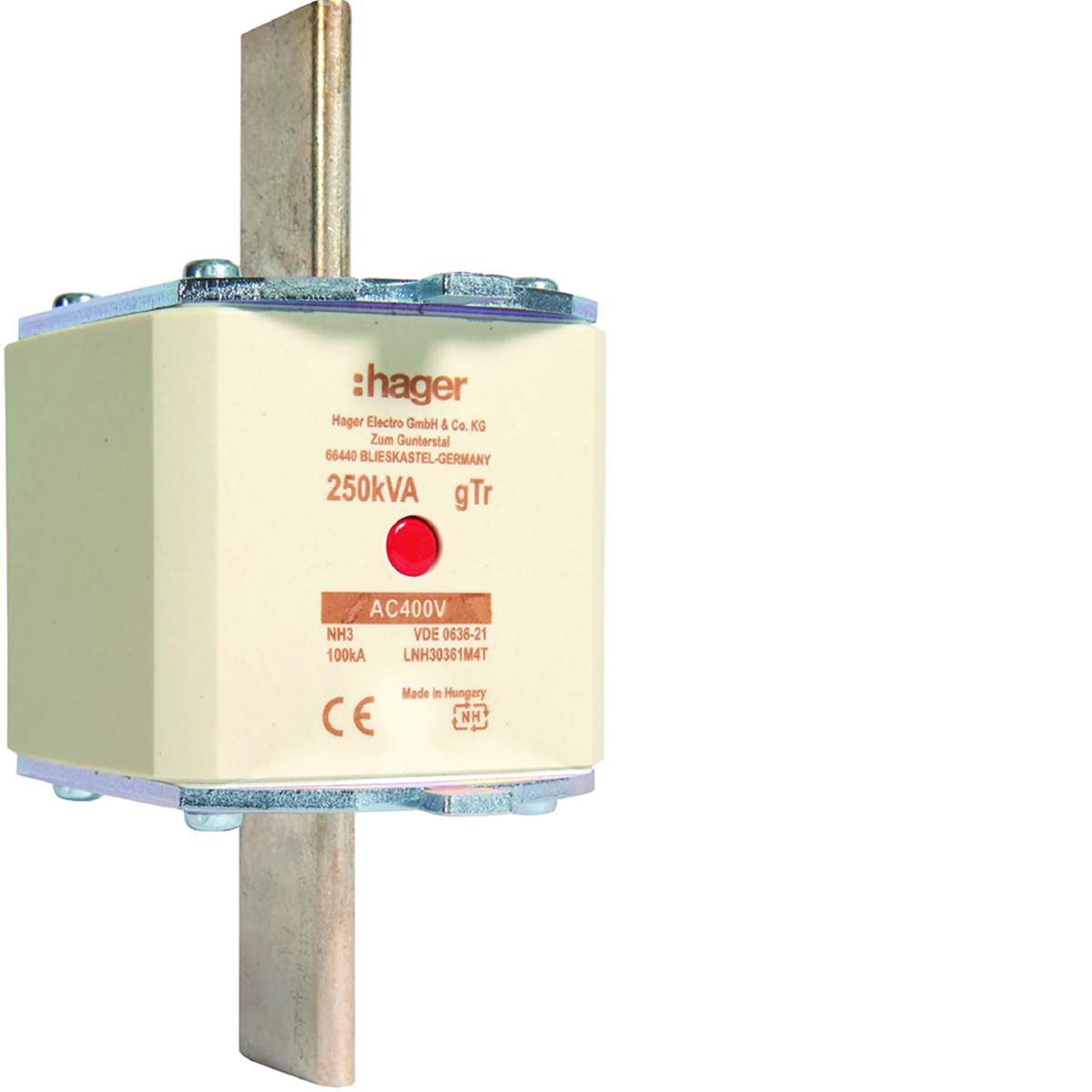

Knife fuse link NH3 gTr 400V 361A LNH30361M4T

local index:
ABI410HAGE
Catalog No:
LNH30361M4T
EAN code:
3250614126260
Manufacturer: HAGER
Characteristic: gTr
Length [mm]: 80
Depth [mm]: 150
Price:
33,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

361A knife fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gTr,
  • trigger characteristics: gTr.

Technical data

  • Characteristic
    gTr
  • Depth [mm]
    150
  • Rated current [A]
    361
  • Width [mm]
    66
  • Height [mm]
    83.5
  • Rated short-circuit breaking capacity Icn [kA]
    100
  • Length [mm]
    80
  • DC operating voltage [V]
    0/400/440
  • power loss [W]
    20.6
  • Fuse link size
    NH3
  • Rated switching voltage [V]
    0/400/440
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    361 A
  • Utilization category
    gTr (Transformer protection)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 7 pcs. 280 pcs.
Weight (kg) 1,099 1,100 8,060 347,400
Width (m) 0,051 0,157 0,300 0,800
Length (m) 0,083 0,095 0,155 0,925
Depth (m) 0,150 0,075 0,400 1,200
