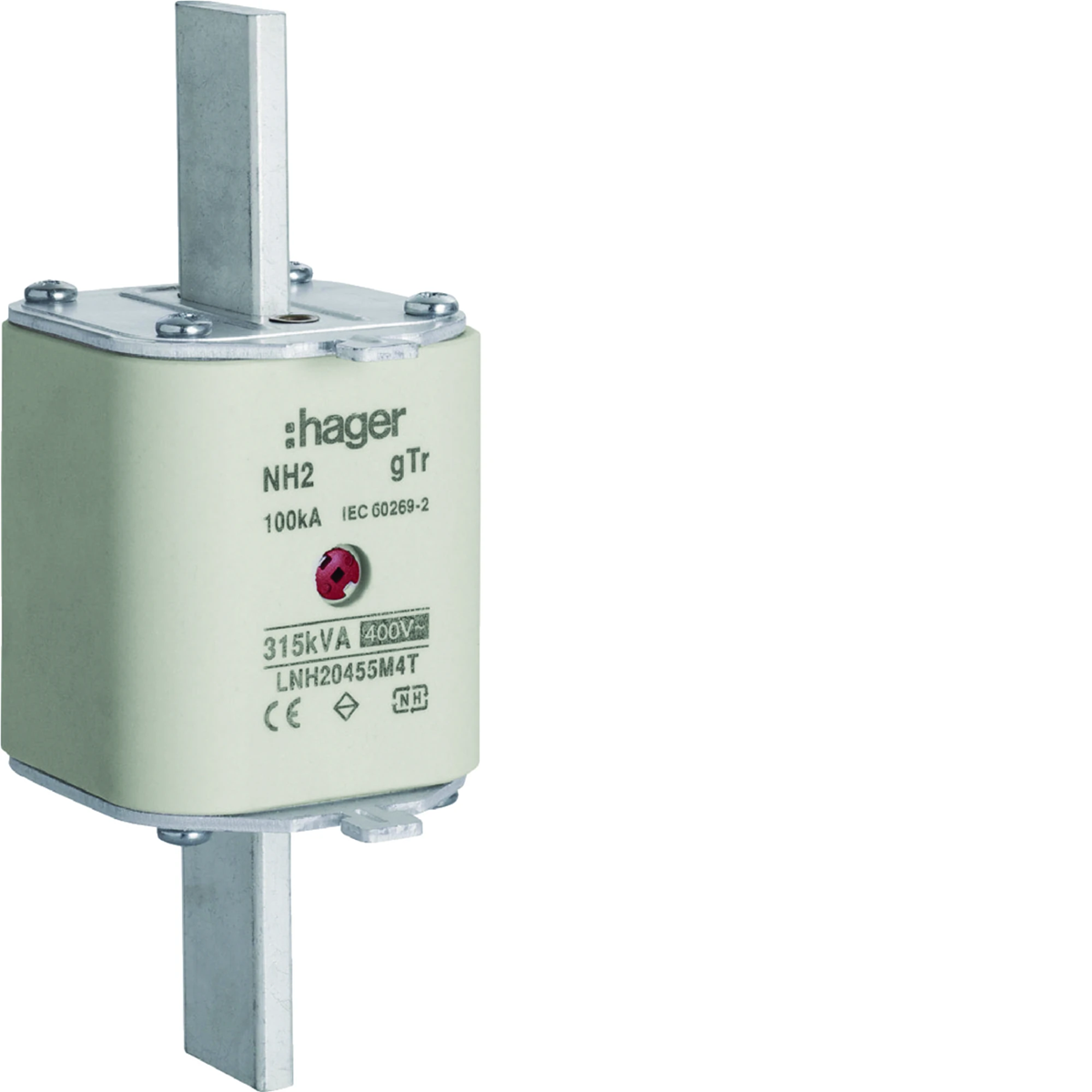

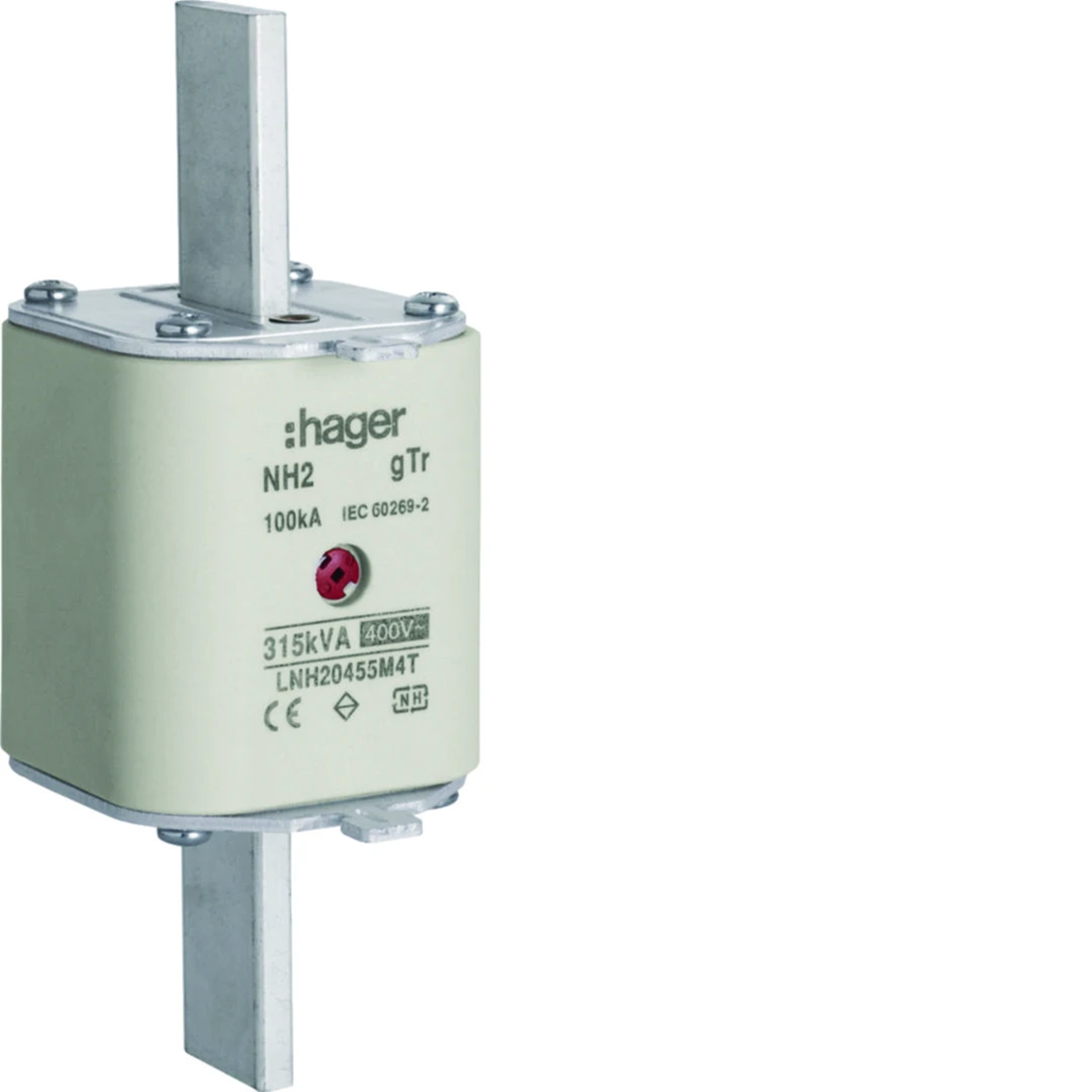

Knife fuse link NH2 gTr 400V 455A LNH20455M4T

local index:
ABI366HAGE
Catalog No:
LNH20455M4T
EAN code:
3250614126215
Manufacturer: HAGER
Characteristic: gTr
Length [mm]: 62
DC operating voltage [V]: 0/400/440
Price:
22,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

455A knife fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gTr,
  • trigger characteristics: gTr.

Technical data

  • Characteristic
    gTr
  • DC operating voltage [V]
    0/400/440
  • power loss [W]
    25
  • Fuse link size
    NH3
  • Rated switching voltage [V]
    0/400/440
  • PKWIU
    27.12.21.0
  • Length [mm]
    62
  • Rated current [A]
    455
  • Width [mm]
    49
  • Height [mm]
    135
  • Rated short-circuit breaking capacity Icn [kA]
    100

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    455 A
  • Utilization category
    gTr (Transformer protection)
  • Insulated metal gripping lugs (IMGL)
    No

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 3 pcs. 30 pcs. 600 pcs. 3 pcs. 30 pcs. 600 pcs.
Weight (kg) 1,620 16,200 324,000 1,620 16,200 324,000
Width (m) 0,120 0,170 0,800 0,120 0,170 0,800
Length (m) 0,080 0,330 1,010 0,080 0,330 1,010
Depth (m) 0,160 0,390 1,200 0,160 0,390 1,200
