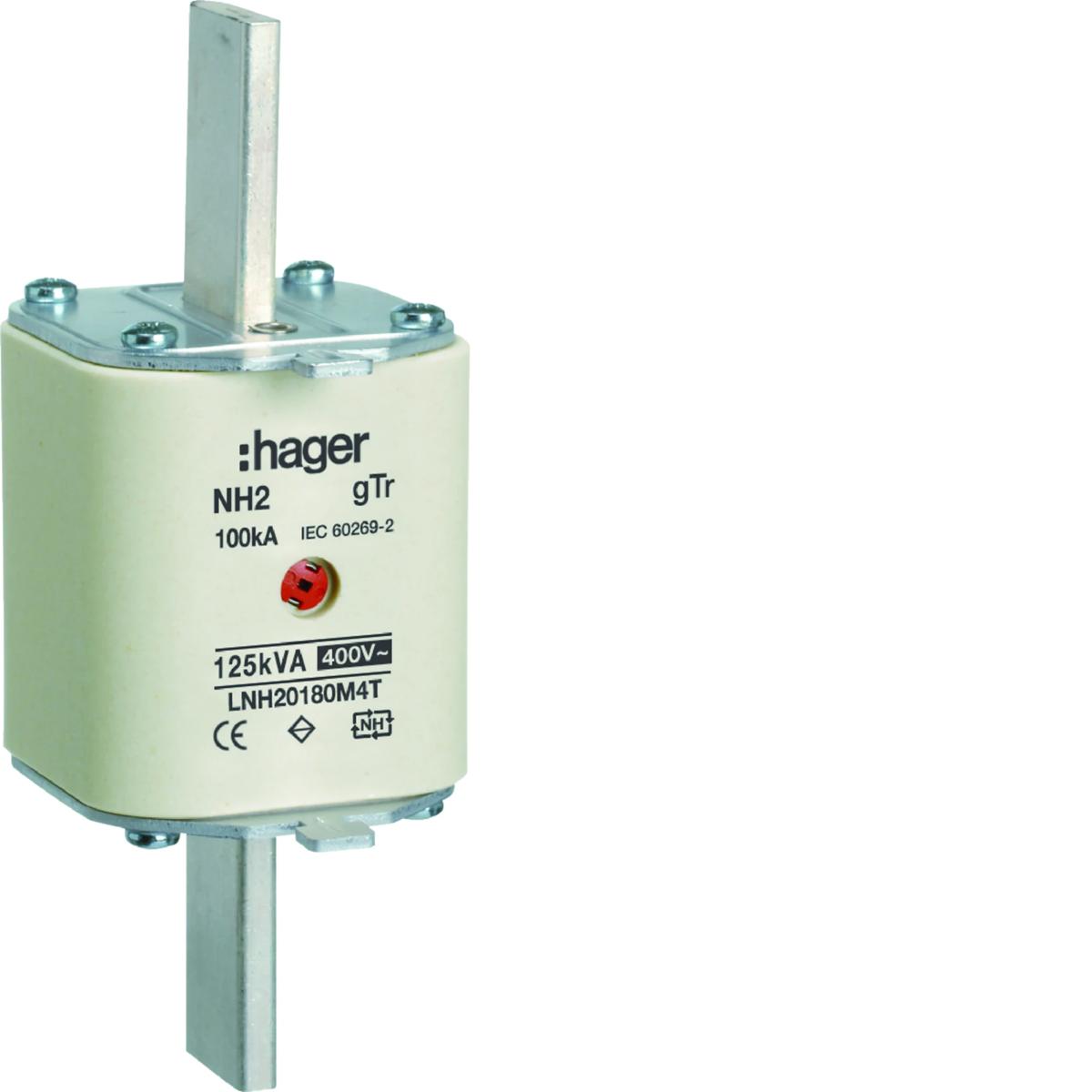

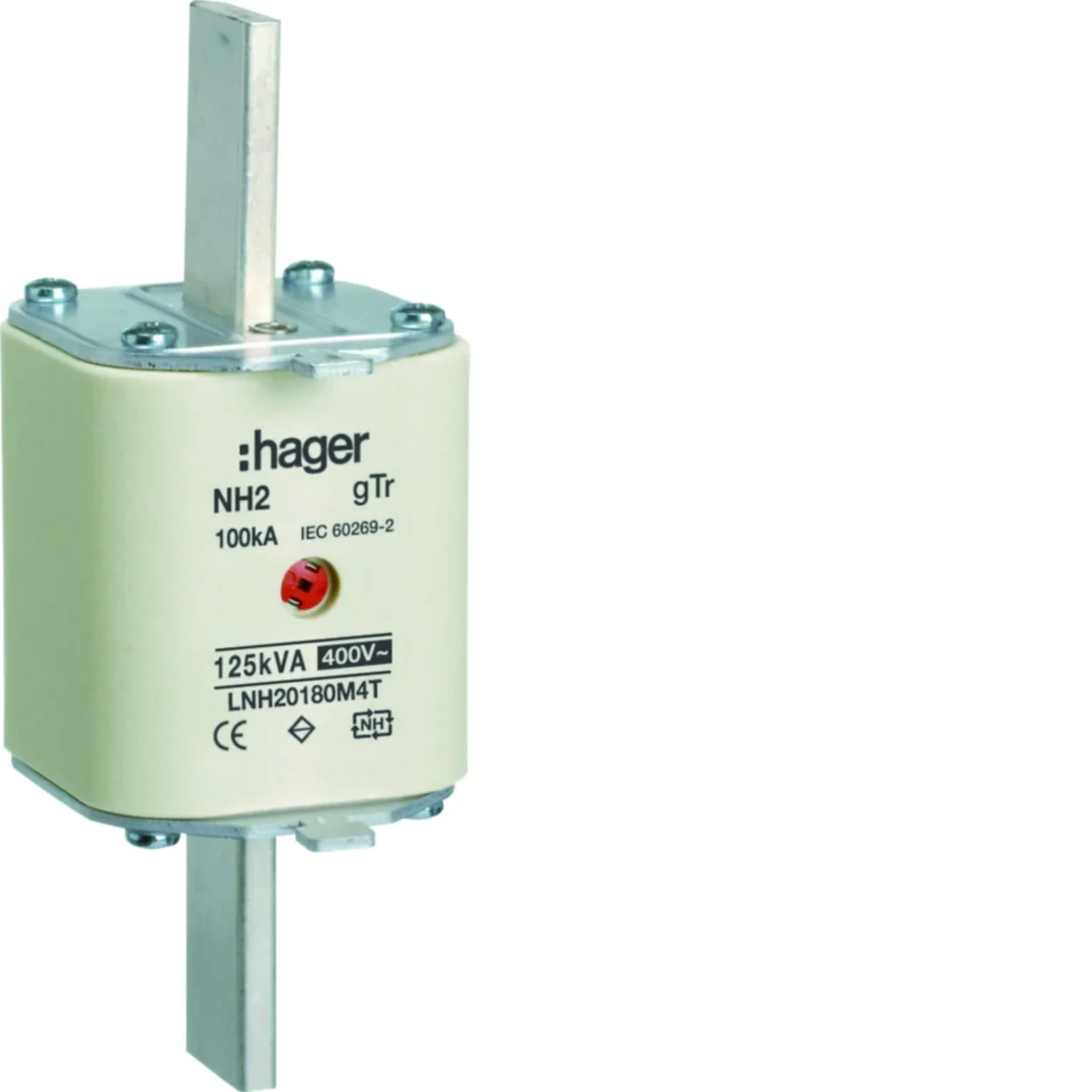

Knife fuse link NH2 gTr 400V 180A LNH20180M4T
local index:
ABI358HAGE
Catalog No:
LNH20180M4T
EAN code:
3250614126178
Price:
19,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
180A blade fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gTr,
- trigger characteristics: gTr.
Technical data
-
CharacteristicgTr
-
DC operating voltage [V]0/400/440
-
power loss [W]12.8
-
Fuse link sizeNH3
-
Rated switching voltage [V]0/400/440
-
PKWIU27.12.21.0
-
Length [mm]62
-
Rated current [A]180
-
Width [mm]49
-
Height [mm]135
-
Rated short-circuit breaking capacity Icn [kA]100
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCentre fuse status indicator
-
Rated current180 A
-
Utilization categorygTr (Transformer protection)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 3 pcs. | 24 pcs. | 384 pcs. |
| Weight (kg) | 0,540 | 1,720 | 13,880 | 241,920 |
| Width (m) | 0,049 | 0,155 | 0,290 | 0,800 |
| Length (m) | 0,135 | 0,077 | 0,291 | 1,000 |
| Depth (m) | 0,062 | 0,160 | 0,390 | 1,200 |
