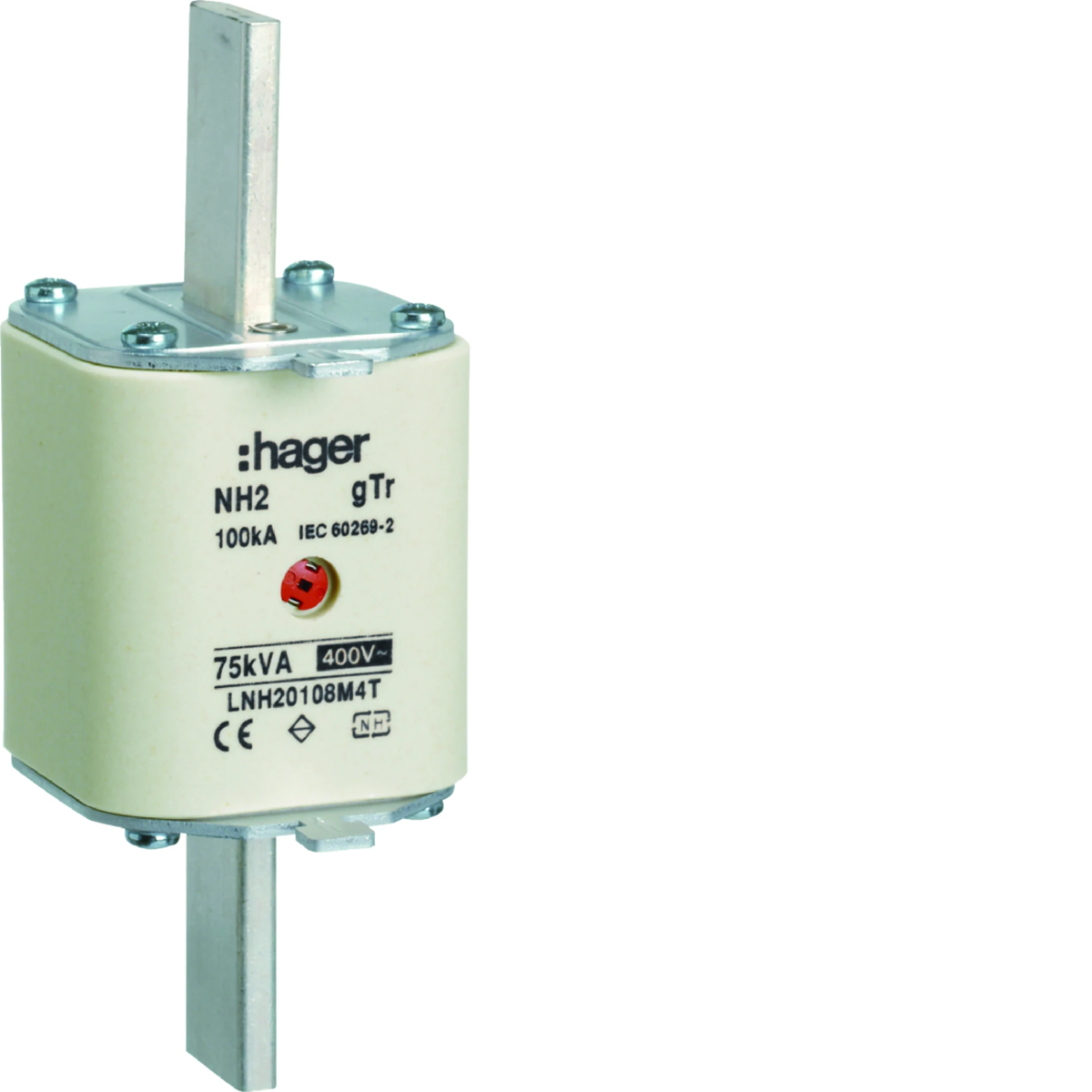

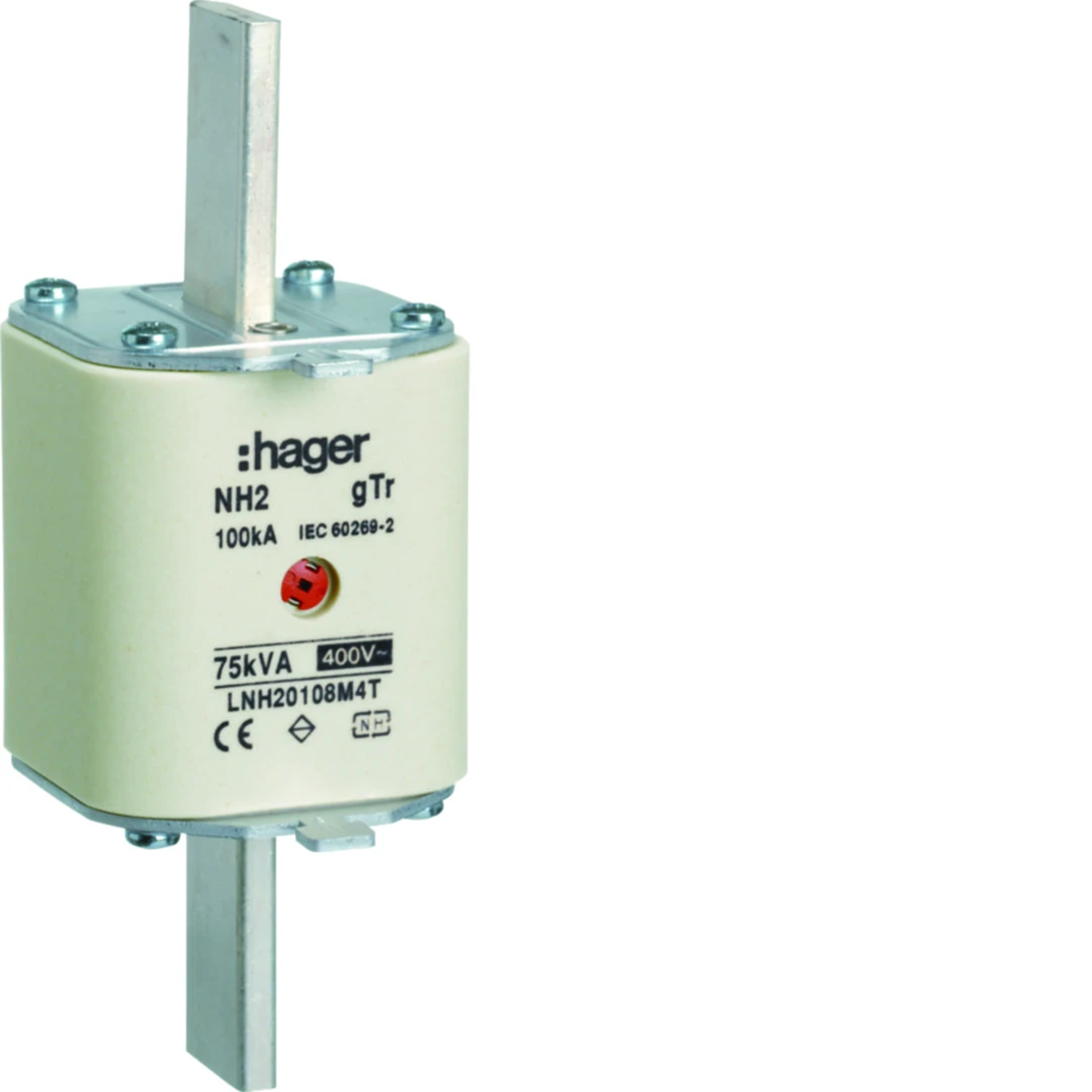

Knife fuse link NH2 gTr 400V 108A LNH20108M4T
local index:
ABI357HAGE
Catalog No:
LNH20108M4T
EAN code:
3250614126154
Price:
23,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
108A blade fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gTr,
- trigger characteristics: gTr.
Technical data
-
CharacteristicgTr
-
Depth [mm]150
-
Rated current [A]108
-
Width [mm]60
-
Height [mm]53
-
Rated short-circuit breaking capacity Icn [kA]100
-
Length [mm]72
-
DC operating voltage [V]0/400/440
-
power loss [W]7.8
-
Fuse link sizeNH3
-
Rated switching voltage [V]0/400/440
-
PKWIU27.12.21.0
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCentre fuse status indicator
-
Rated current108 A
-
Utilization categorygTr (Transformer protection)
-
Insulated metal gripping lugs (IMGL)No
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 24 pcs. | 384 pcs. | 3 pcs. | 24 pcs. | 384 pcs. |
| Weight (kg) | 1,620 | 12,960 | 207,360 | 1,620 | 12,960 | 207,360 |
| Width (m) | 0,200 | 0,280 | 0,800 | 0,200 | 0,280 | 0,800 |
| Length (m) | 0,090 | 0,290 | 1,000 | 0,090 | 0,290 | 1,000 |
| Depth (m) | 0,230 | 0,390 | 1,200 | 0,230 | 0,390 | 1,200 |
