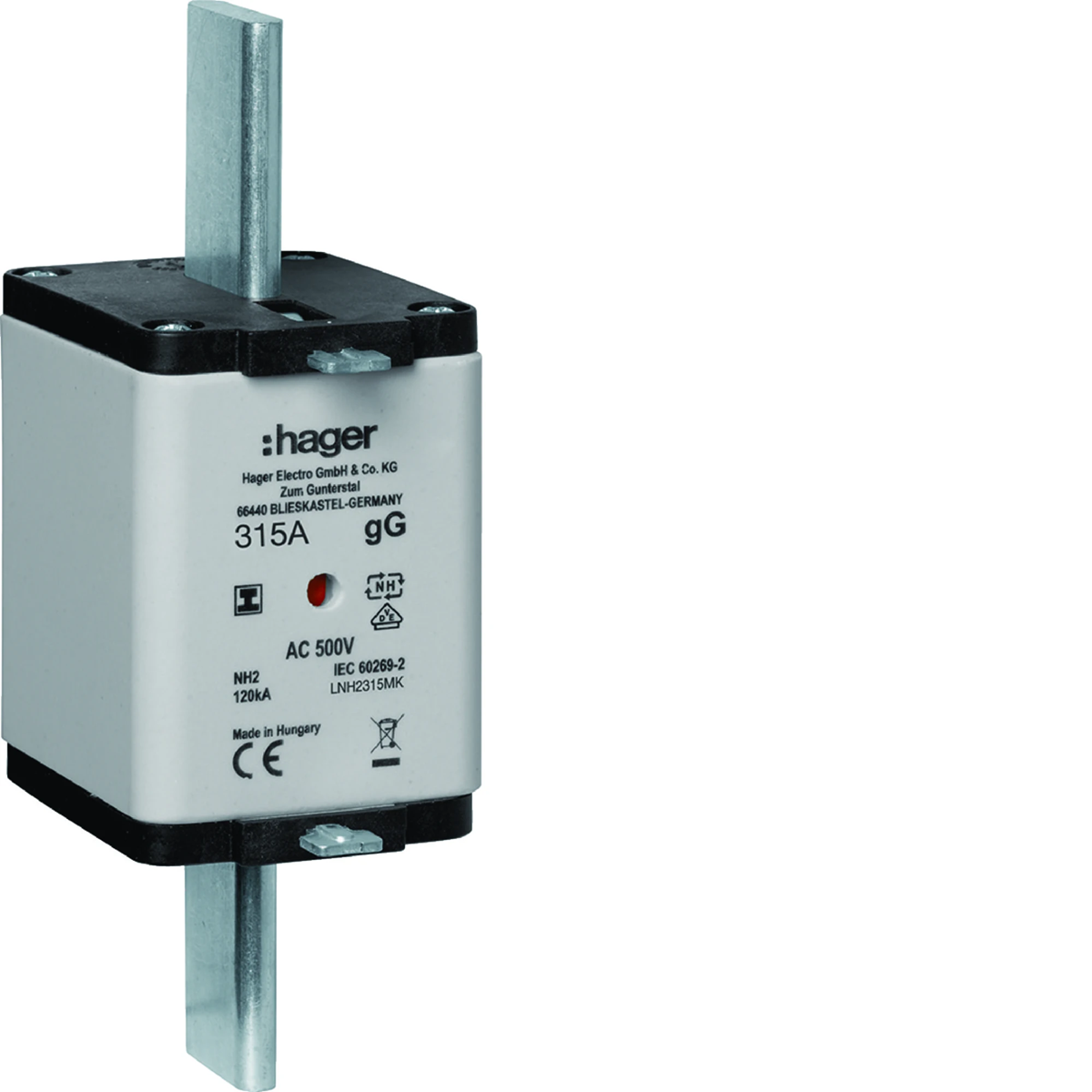

Knife fuse link NH2 gG with center indicator insulated holder 315A 500V LNH2315MK
local index:
ABI511HAGE
Catalog No:
LNH2315MK
EAN code:
3250614122804
Price:
26,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
315A knife fuse link:
- double indicator,
- insulated handle,
- fuse characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]25
-
Fuse link sizeNH2
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]62
-
Rated current [A]315
-
Width [mm]49
-
Height [mm]135
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current315 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)Yes
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 24 pcs. | 384 pcs. | 3 pcs. | 24 pcs. | 384 pcs. |
| Weight (kg) | 1,800 | 14,470 | 231,550 | 1,800 | 14,470 | 231,550 |
| Width (m) | 0,160 | 0,280 | 0,800 | 0,160 | 0,280 | 0,800 |
| Length (m) | 0,080 | 0,290 | 1,000 | 0,080 | 0,290 | 1,000 |
| Depth (m) | 0,160 | 0,390 | 1,200 | 0,160 | 0,390 | 1,200 |
