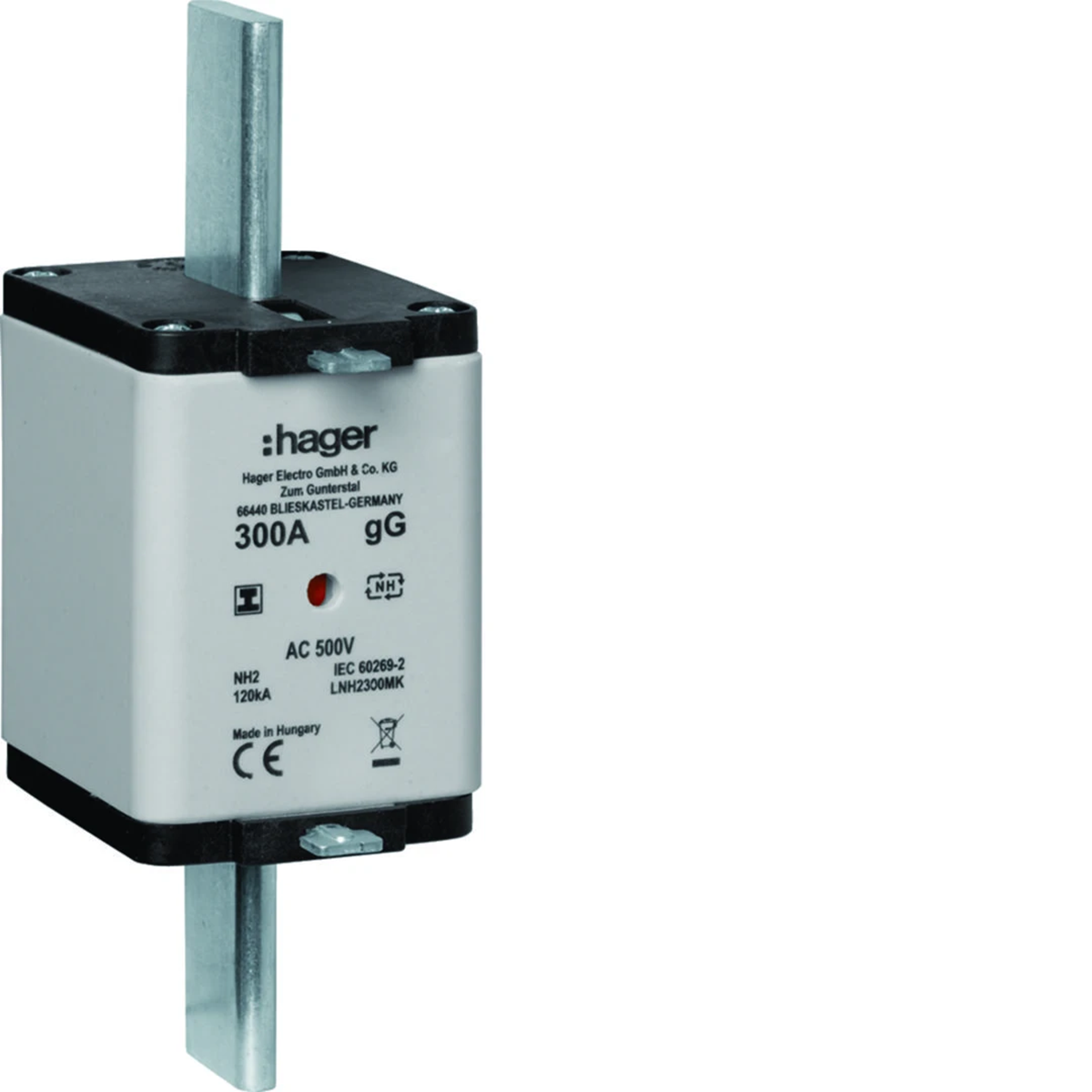

Knife fuse link NH2 gG with center indicator insulated holder 300A 500V LNH2300MK

local index:
ABI510HAGE
Catalog No:
LNH2300MK
EAN code:
3250614122798
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 62
DC operating voltage [V]: 0/500/550
Price:
24,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

300A blade fuse link:

  • double indicator,
  • insulated handle,
  • fuse characteristics: gG.

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    24.2
  • Fuse link size
    NH2
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0
  • Length [mm]
    62
  • Rated current [A]
    300
  • Width [mm]
    49
  • Height [mm]
    135
  • Rated short-circuit breaking capacity Icn [kA]
    120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    300 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    Yes

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 24 pcs. 384 pcs.
Weight (kg) 0,603 1,880 15,620 272,920
Width (m) 0,049 0,161 0,290 0,800
Length (m) 0,135 0,079 0,291 1,000
Depth (m) 0,062 0,157 0,390 1,200
