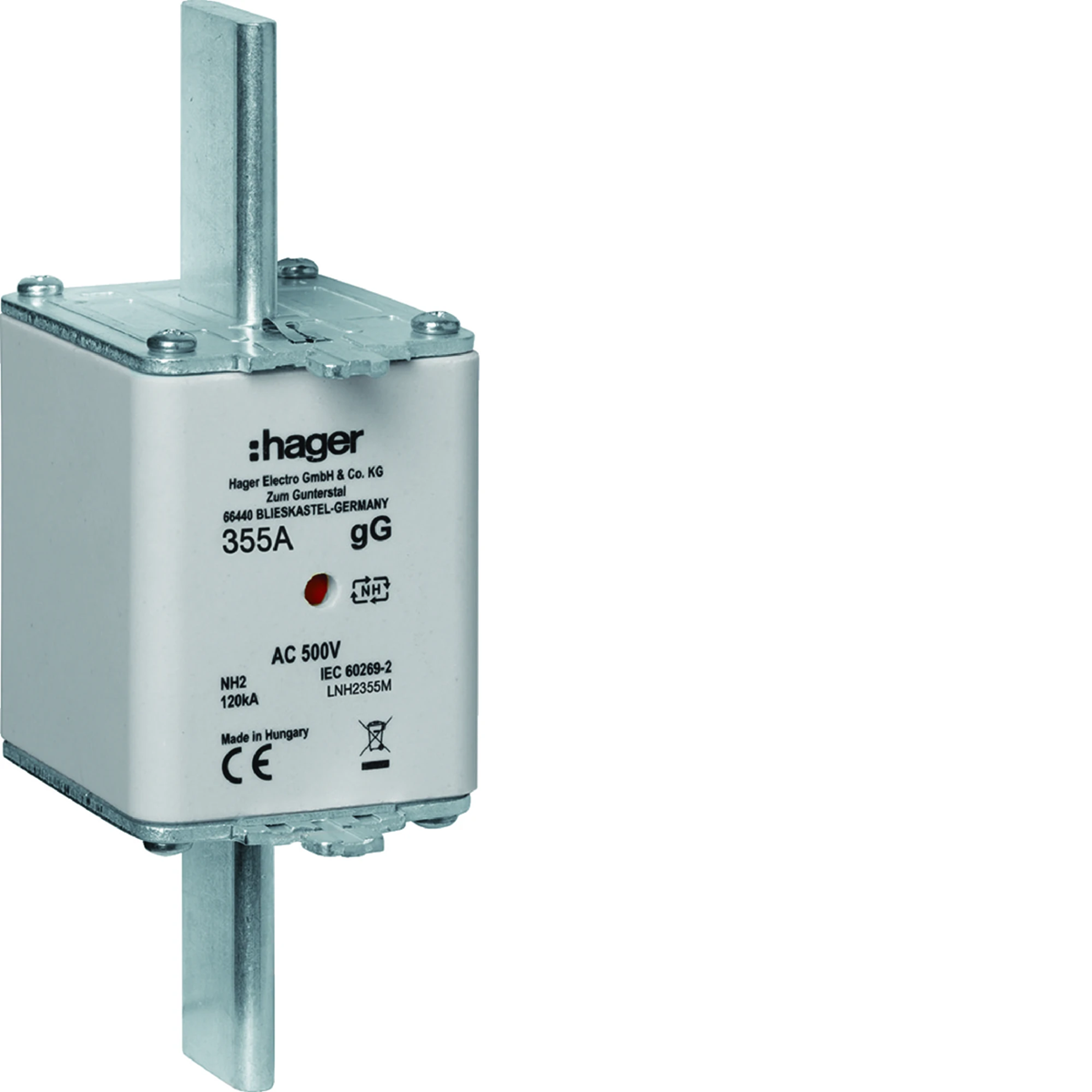

Knife fuse link NH2 gG with center indicator 355A 500V LNH2355M

local index:
ABI508HAGE
Catalog No:
LNH2355M
EAN code:
3250614121036
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 62
DC operating voltage [V]: 0/500/550
Price:
18,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

355A blade fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gG.

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    31.5
  • Fuse link size
    NH2
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0
  • Length [mm]
    62
  • Rated current [A]
    355
  • Width [mm]
    49
  • Height [mm]
    135
  • Rated short-circuit breaking capacity Icn [kA]
    120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    355 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 24 pcs. 384 pcs.
Weight (kg) 0,603 1,855 15,115 264,840
Width (m) 0,053 0,160 0,310 0,800
Length (m) 0,026 0,080 0,250 1,000
Depth (m) 0,060 0,160 0,355 1,200
