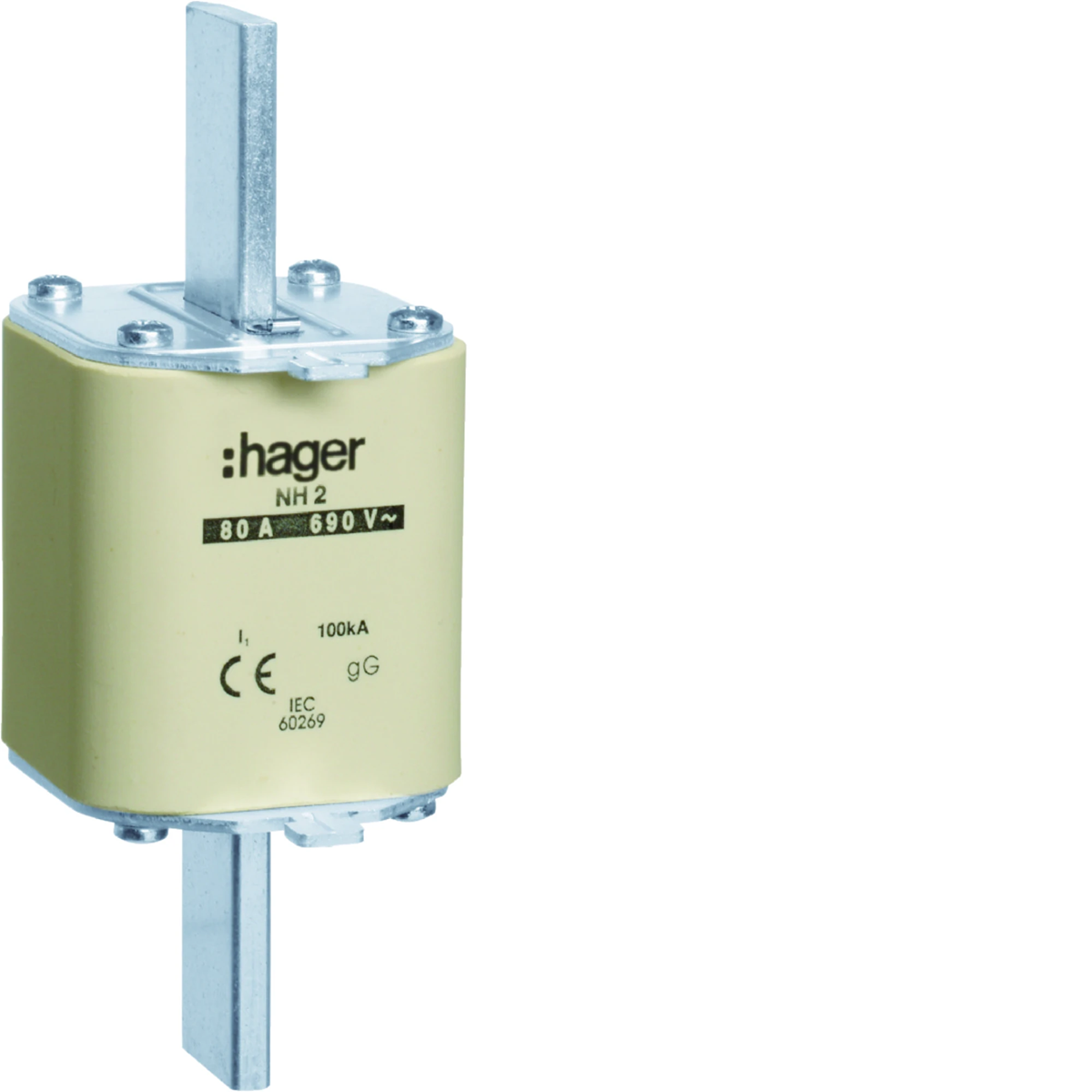

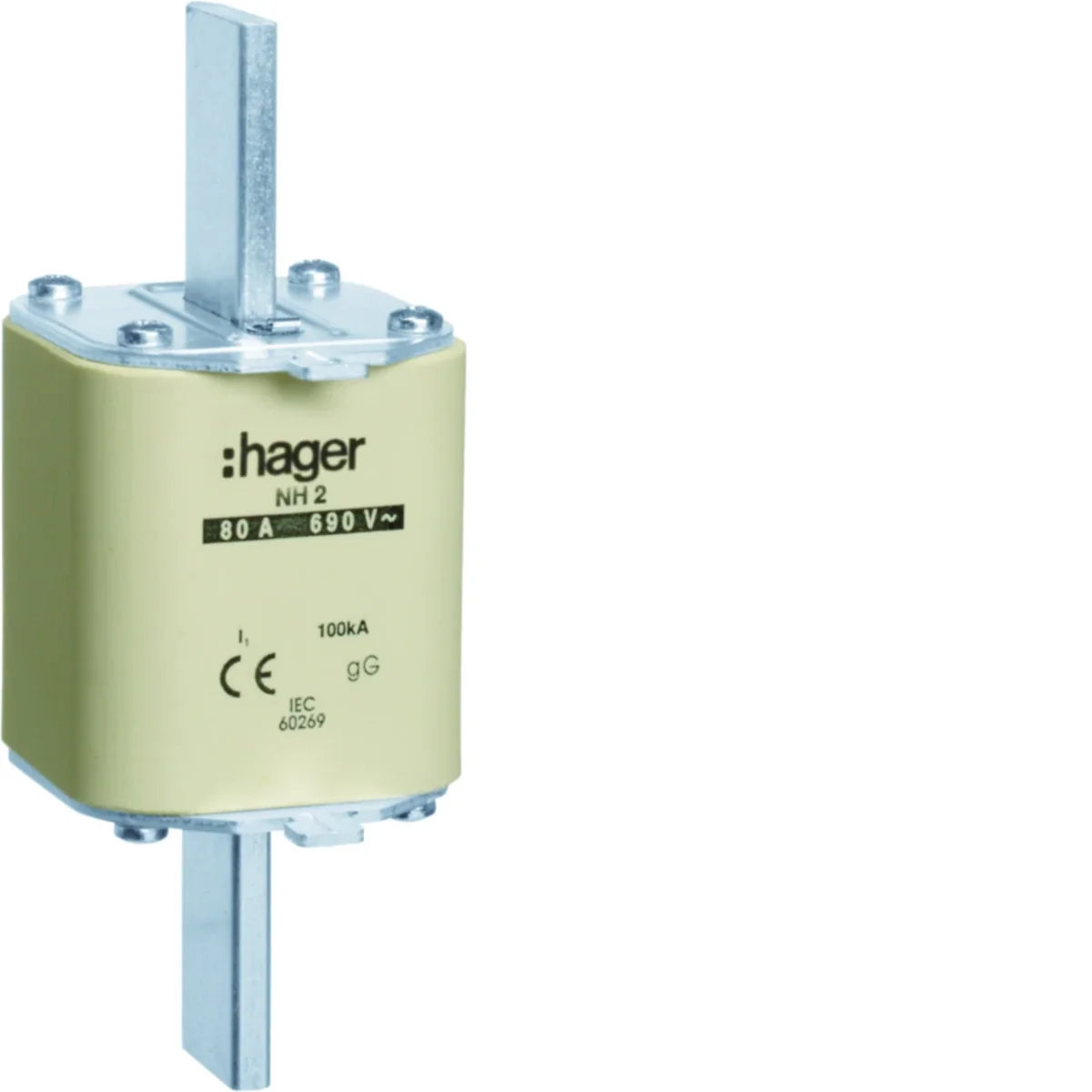

Knife fuse link NH2 gG 690V 80A LNH2080M6
local index:
ABI369HAGE
Catalog No:
LNH2080M6
EAN code:
3250614125539
Price:
135,98 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
80A blade fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gG.
Technical data
-
CharacteristicgG
-
Rated current [A]80
-
Fuse link sizeNH2
-
Rated short-circuit breaking capacity Icn [kA]80
-
DC operating voltage [V]0/690/724
-
power loss [W]8.3
-
Rated switching voltage [V]0/690/724
-
PKWIU27.12.21.0
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current80 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 18 pcs. | 576 pcs. |
| Weight (kg) | 1,280 | 7,720 | 247,100 |
| Width (m) | 0,120 | 0,280 | 0,800 |
| Length (m) | 0,080 | 0,140 | 1,050 |
| Depth (m) | 0,150 | 0,390 | 1,200 |
