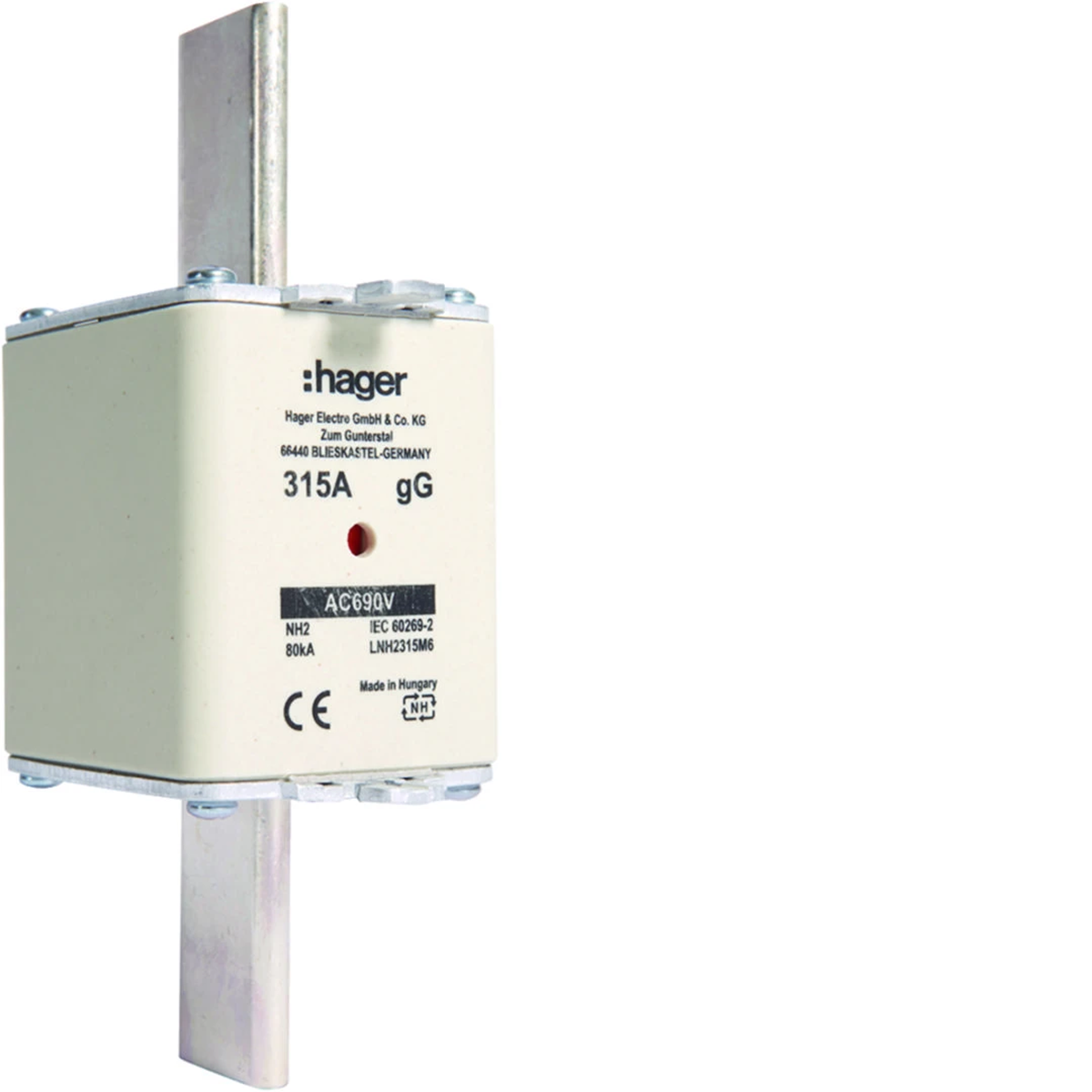

Knife fuse link NH2 gG 690V 315A LNH2315M6

local index:
ABI398HAGE
Catalog No:
LNH2315M6
EAN code:
3250614125607
Manufacturer: HAGER
Characteristic: gG
DC operating voltage [V]: 0/690/724
Rated current [A]: 315
Price:
28,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

315A blade fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gG.

Technical data

  • Characteristic
    gG
  • Rated current [A]
    315
  • Fuse link size
    NH2
  • Rated short-circuit breaking capacity Icn [kA]
    80
  • DC operating voltage [V]
    0/690/724
  • power loss [W]
    27
  • Rated switching voltage [V]
    0/690/724
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    315 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 24 pcs. 384 pcs.
Weight (kg) 0,500 1,875 15,375 269,000
Width (m) 0,049 0,160 0,315 0,800
Length (m) 0,135 0,080 0,245 1,000
Depth (m) 0,062 0,175 0,360 1,200
