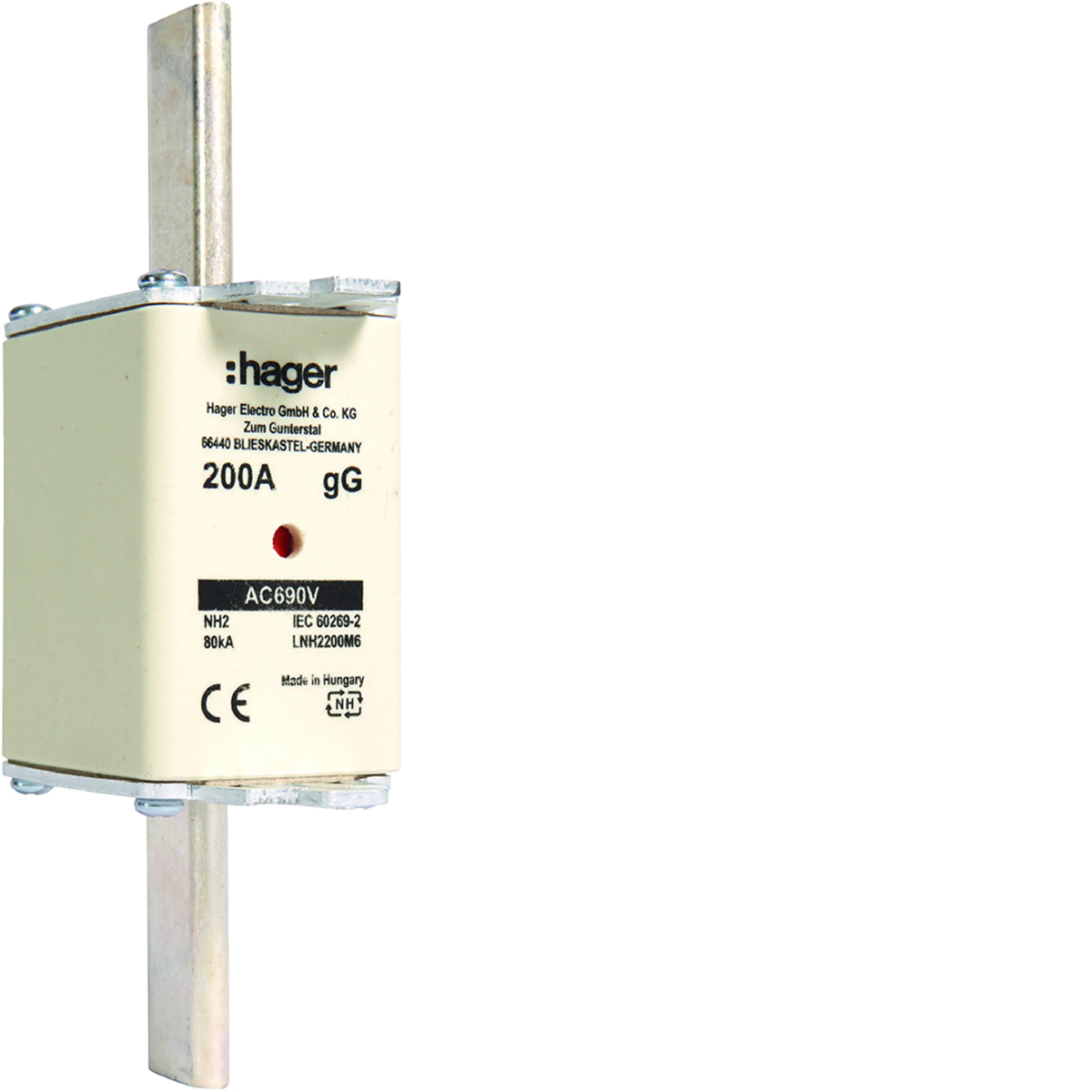

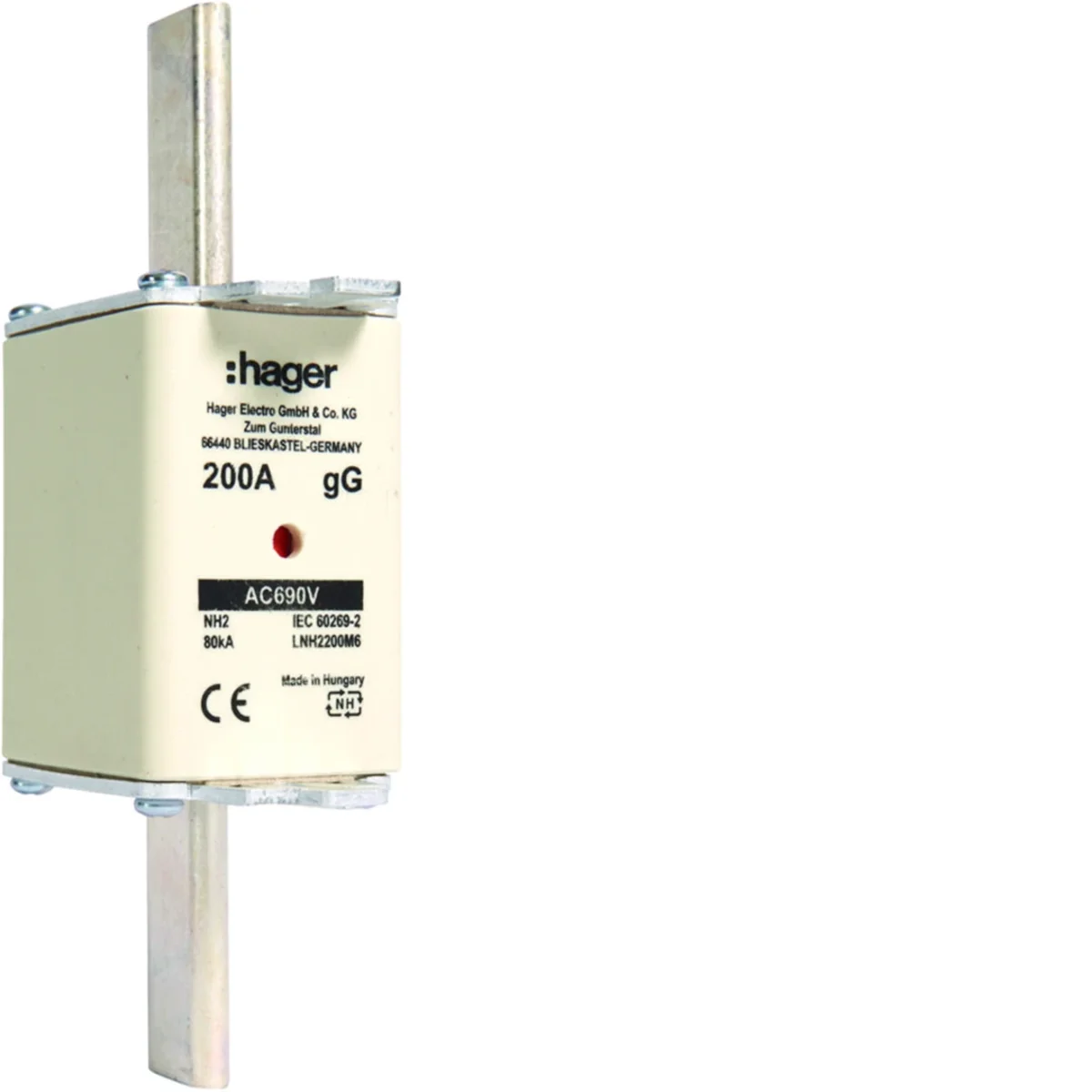

Knife fuse link NH2 gG 690V 200A LNH2200M6
local index:
ABI385HAGE
Catalog No:
LNH2200M6
EAN code:
3250614125577
Price:
28,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
200A blade fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gG.
Technical data
-
CharacteristicgG
-
Rated current [A]200
-
Fuse link sizeNH2
-
Rated short-circuit breaking capacity Icn [kA]80
-
DC operating voltage [V]0/690/724
-
power loss [W]19
-
Rated switching voltage [V]0/690/724
-
PKWIU27.12.21.0
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current200 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 3 pcs. | 18 pcs. | 576 pcs. |
| Weight (kg) | 0,427 | 1,295 | 8,175 | 284,600 |
| Width (m) | 0,049 | 0,125 | 0,295 | 0,800 |
| Length (m) | 0,135 | 0,080 | 0,155 | 1,500 |
| Depth (m) | 0,062 | 0,160 | 0,395 | 1,200 |
