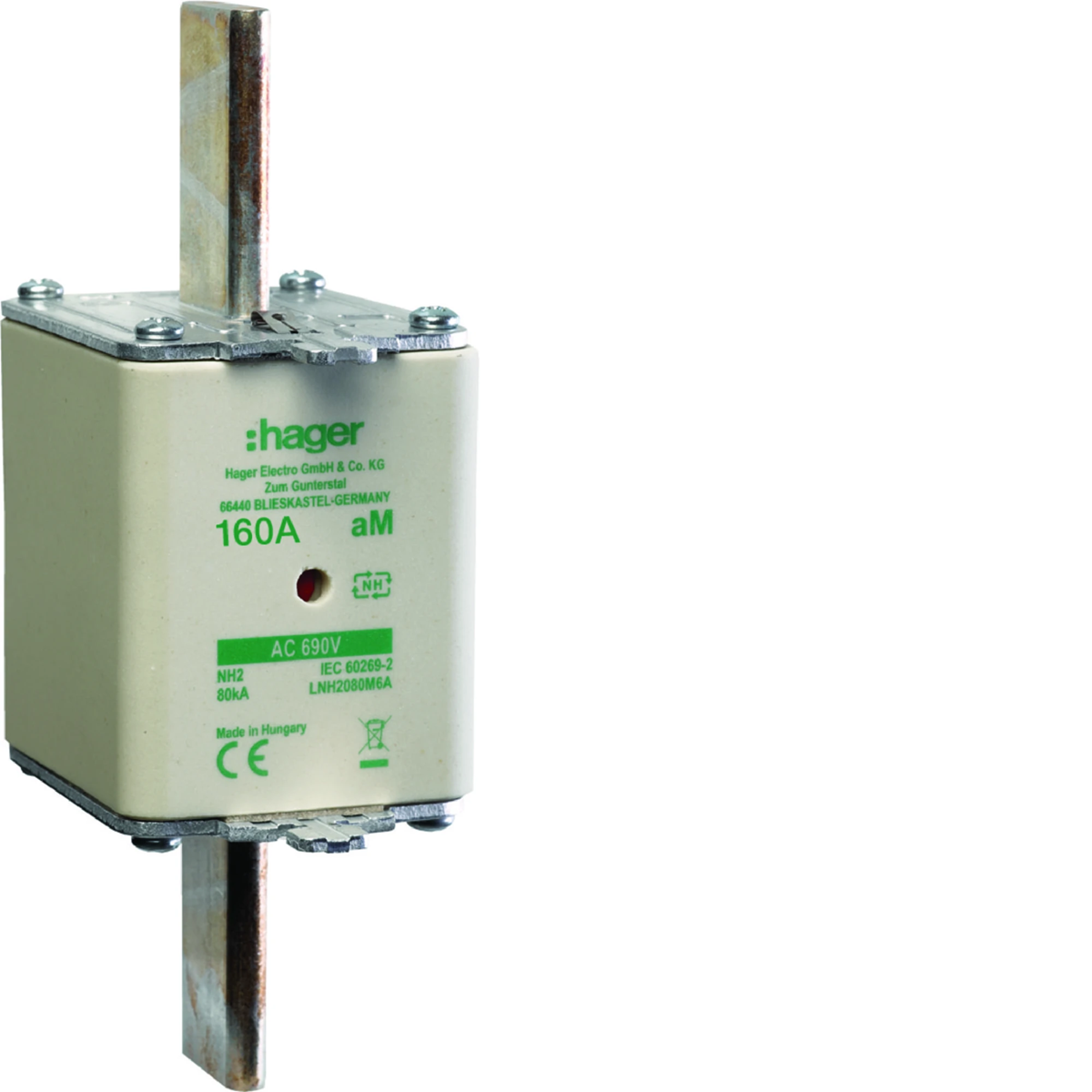

Knife fuse link NH2 aM 690V 160A LNH2160M6A

local index:
ABI382HAGE
Catalog No:
LNH2160M6A
EAN code:
3250614126062
Manufacturer: HAGER
Characteristic: aM
DC operating voltage [V]: 0/690/724
Rated current [A]: 160
Price:
30,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

160A blade fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: aM.

Technical data

  • Characteristic
    aM
  • Rated current [A]
    160
  • Fuse link size
    NH2
  • Rated short-circuit breaking capacity Icn [kA]
    80
  • DC operating voltage [V]
    0/690/724
  • power loss [W]
    9.8
  • Rated switching voltage [V]
    0/690/724
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    160 A
  • Utilization category
    aM (switchgear protection)
  • Insulated metal gripping lugs (IMGL)
    No

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 3 pcs. 24 pcs. 384 pcs. 3 pcs. 24 pcs. 384 pcs.
Weight (kg) 1,840 14,720 264,904 1,840 14,720 264,904
Width (m) 0,160 0,290 0,800 0,160 0,290 0,800
Length (m) 0,080 0,291 1,500 0,080 0,291 1,500
Depth (m) 0,160 0,390 1,200 0,160 0,390 1,200
