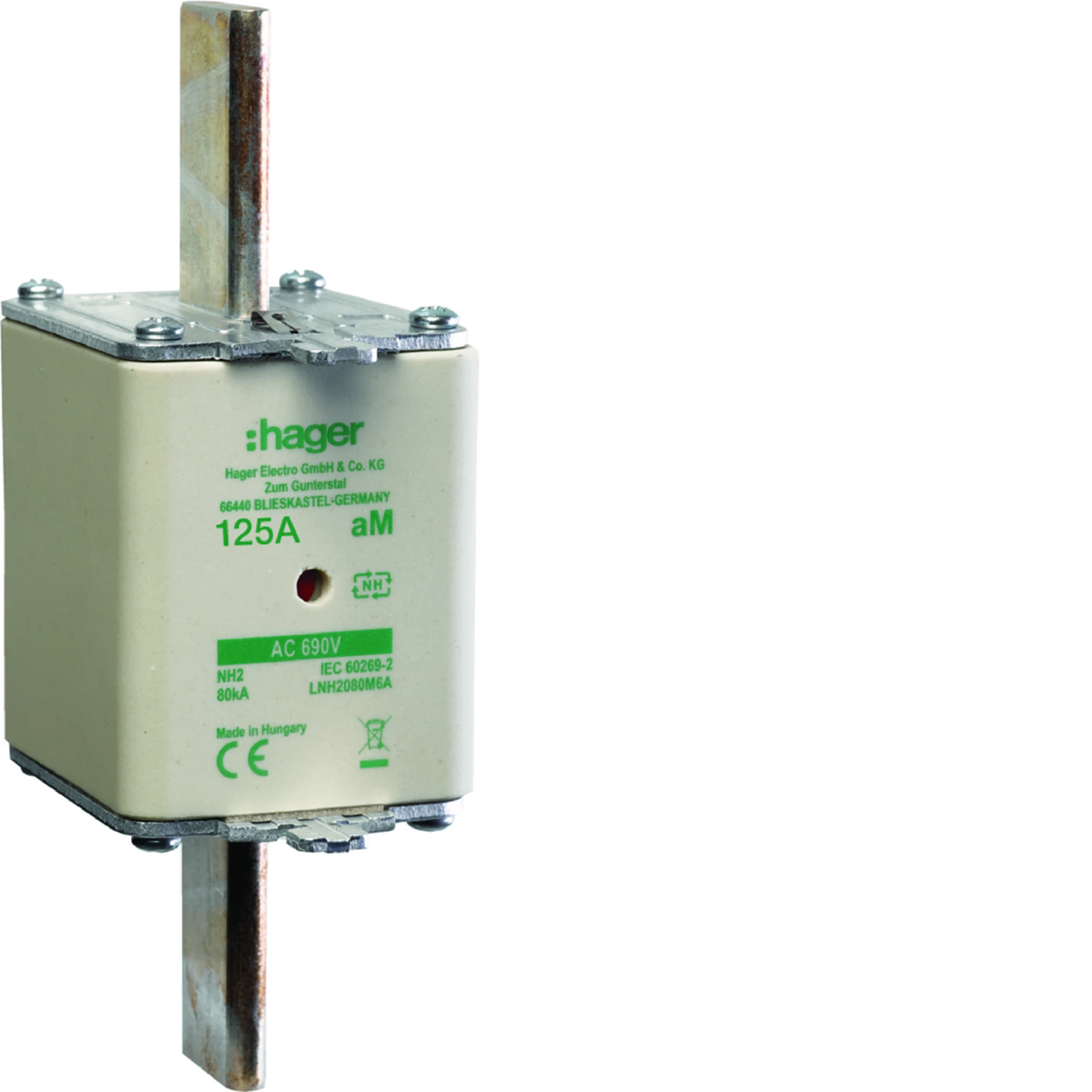

Knife fuse link NH2 aM 690V 125A LNH2125M6A

local index:
ABI378HAGE
Catalog No:
LNH2125M6A
EAN code:
3250614126055
Manufacturer: HAGER
Characteristic: aM
DC operating voltage [V]: 0/690/724
Rated current [A]: 125
Price:
28,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

125A blade fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: aM.

Technical data

  • Characteristic
    aM
  • Rated current [A]
    125
  • Fuse link size
    NH2
  • Rated short-circuit breaking capacity Icn [kA]
    80
  • DC operating voltage [V]
    0/690/724
  • power loss [W]
    7.9
  • Rated switching voltage [V]
    0/690/724
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    125 A
  • Utilization category
    aM (switchgear protection)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 24 pcs. 384 pcs.
Weight (kg) 0,603 1,865 15,365 268,840
Width (m) 0,049 0,160 0,305 0,800
Length (m) 0,135 0,085 0,310 1,050
Depth (m) 0,062 0,160 0,390 1,200
