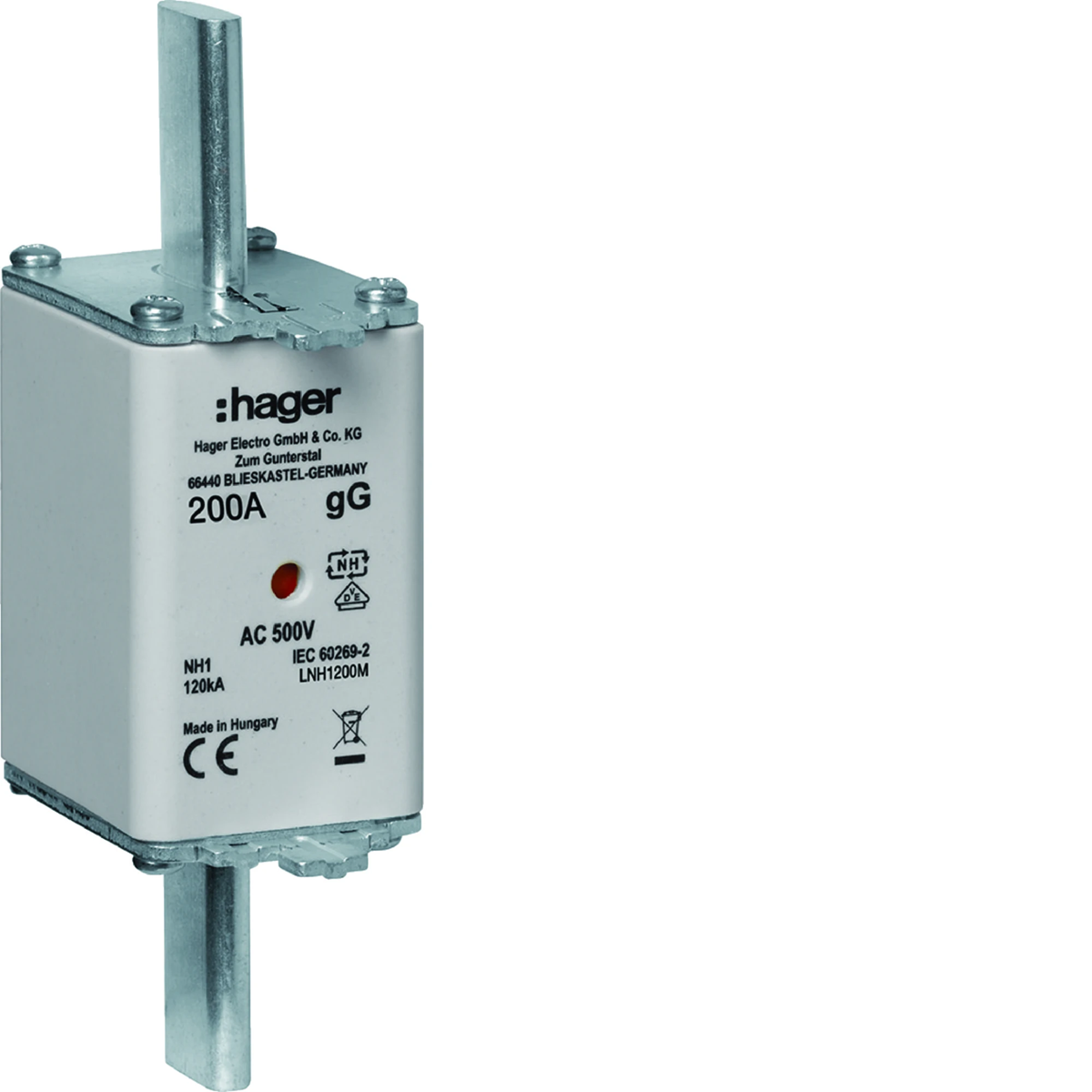

Knife fuse link NH1 gG with center indicator 200A 500V LNH1200M

local index:
ABI482HAGE
Catalog No:
LNH1200M
EAN code:
3250614120862
Manufacturer: HAGER
Characteristic: gG
Length [mm]: thirty
Depth [mm]: 135
Price:
7,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Knife fuse insert:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gG,< /li>
  • trigger characteristics: gG.

Technical data

  • Characteristic
    gG
  • Depth [mm]
    135
  • Rated current [A]
    200
  • Width [mm]
    135
  • Height [mm]
    64.5
  • Rated short-circuit breaking capacity Icn [kA]
    120
  • Length [mm]
    thirty
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    18
  • Fuse link size
    NH1
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    200 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 30 pcs. 960 pcs.
Weight (kg) 0,400 1,240 12,800 412,800
Width (m) 0,040 0,095 0,300 0,800
Length (m) 0,064 0,065 0,155 0,750
Depth (m) 0,135 0,144 0,400 1,200
