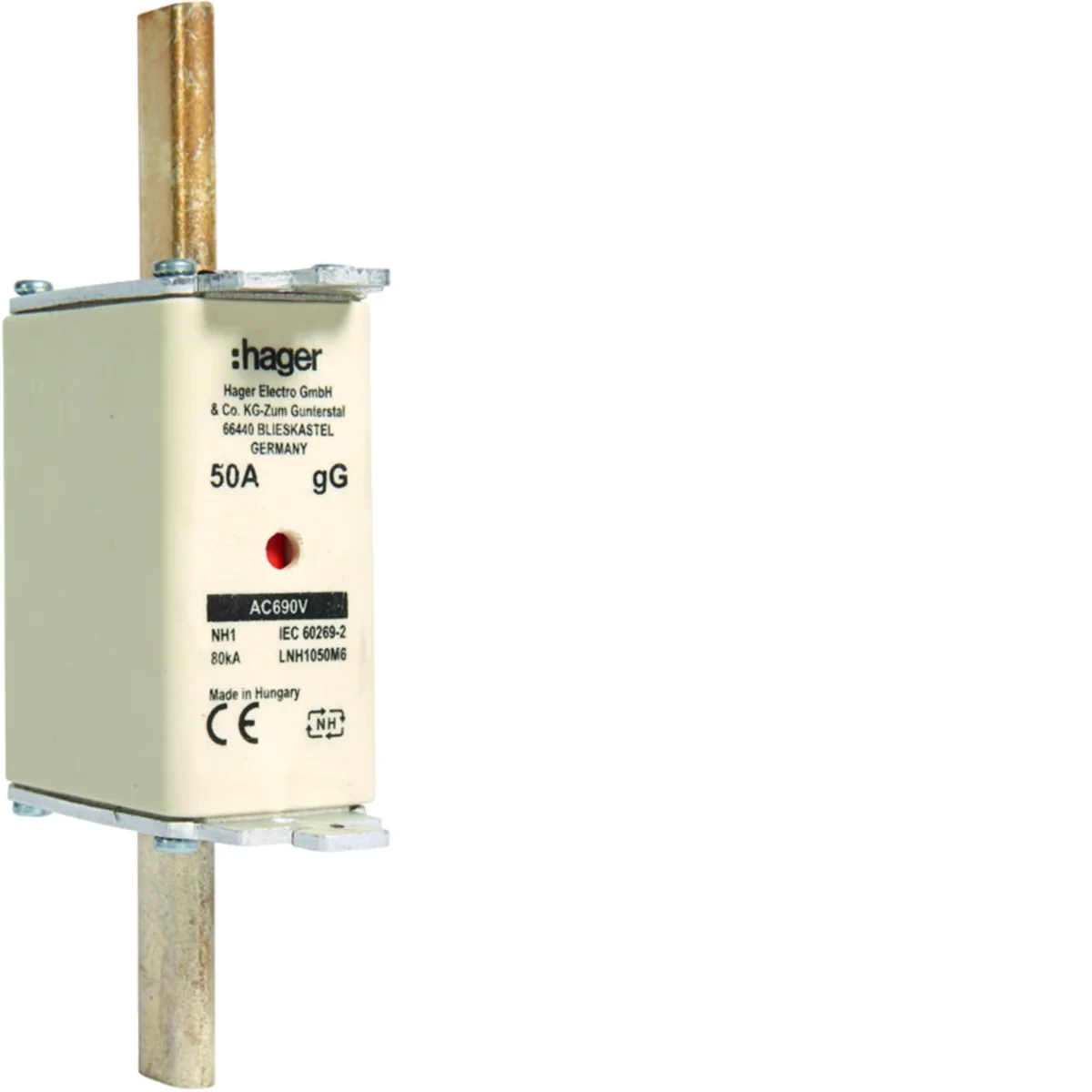

Knife fuse link NH1 gG 690V 50A LNH1050M6

local index:
ABI324HAGE
Catalog No:
LNH1050M6
EAN code:
3250614125447
Manufacturer: HAGER
Characteristic: gG
DC operating voltage [V]: 0/690/724
Rated current [A]: 50
Price:
22,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Knife fuse insert:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gG,< /li>
  • trigger characteristics: gG.

Technical data

  • Characteristic
    gG
  • Rated current [A]
    50
  • Fuse link size
    NH1
  • Rated short-circuit breaking capacity Icn [kA]
    80
  • DC operating voltage [V]
    0/690/724
  • power loss [W]
    4.8
  • Rated switching voltage [V]
    0/690/724
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    50 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,200 0,860 9,000 324,000
Width (m) 0,135 0,095 0,290 0,800
Length (m) 0,055 0,072 0,145 1,500
Depth (m) 0,030 0,145 0,390 1,200
