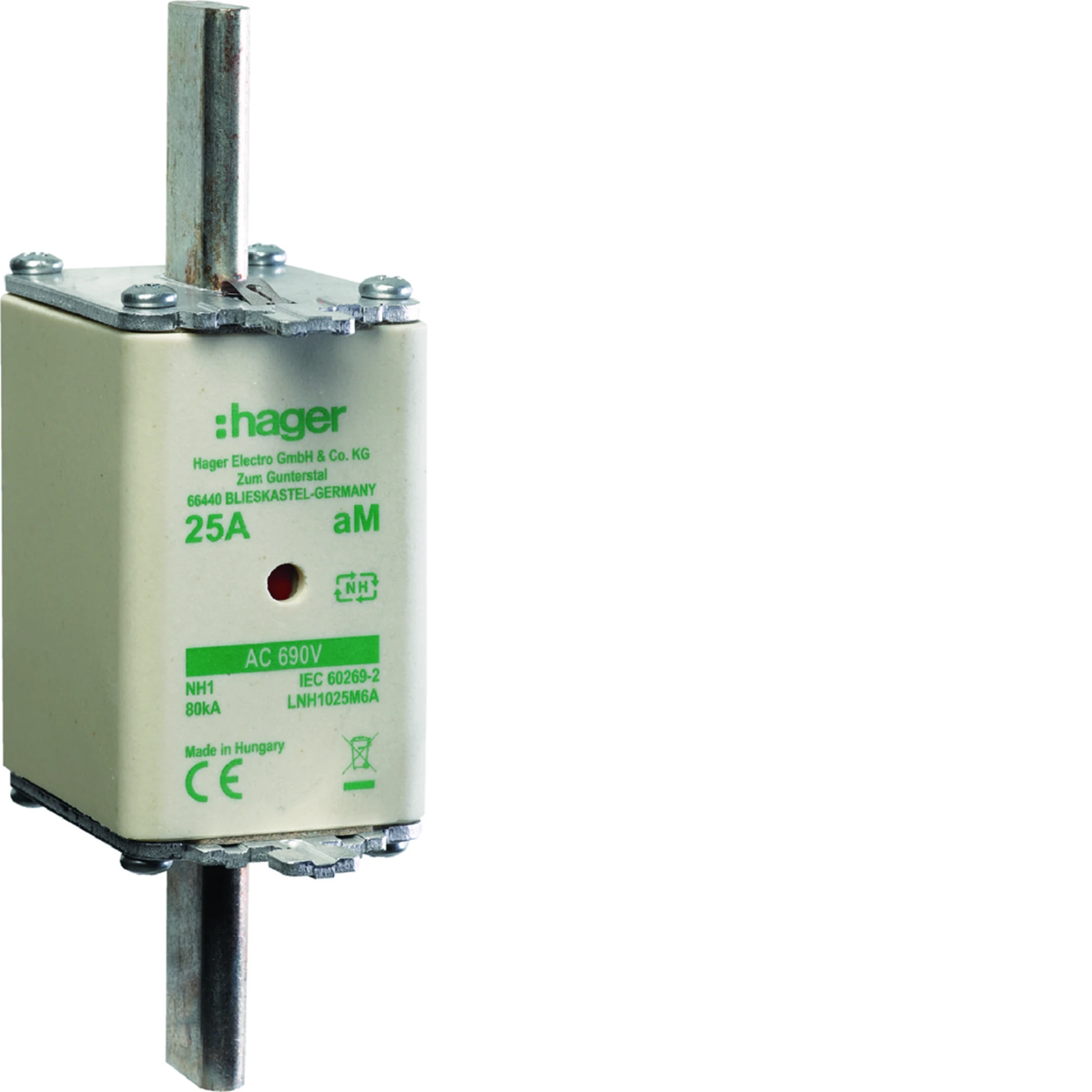

Knife fuse link NH1 aM 690V 25A LNH1025M6A
local index:
ABI317HAGE
Catalog No:
LNH1025M6A
EAN code:
3250614125928
Price:
22,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Knife fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: aM,< /li>
- trigger characteristics: aM.
Technical data
-
CharacteristicaM
-
Rated current [A]25
-
Fuse link sizeNH1
-
Rated short-circuit breaking capacity Icn [kA]80
-
DC operating voltage [V]0/690/724
-
power loss [W]1.5
-
Rated switching voltage [V]0/690/724
-
PKWIU27.12.21.0
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current25 A
-
Utilization categoryaM (switchgear protection)
-
Insulated metal gripping lugs (IMGL)No
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 30 pcs. | 960 pcs. | 3 pcs. | 30 pcs. | 960 pcs. |
| Weight (kg) | 1,200 | 12,090 | 386,880 | 1,200 | 12,090 | 386,880 |
| Width (m) | 0,120 | 0,300 | 0,800 | 0,120 | 0,300 | 0,800 |
| Length (m) | 0,070 | 0,170 | 0,830 | 0,070 | 0,170 | 0,830 |
| Depth (m) | 0,140 | 0,400 | 1,200 | 0,140 | 0,400 | 1,200 |
