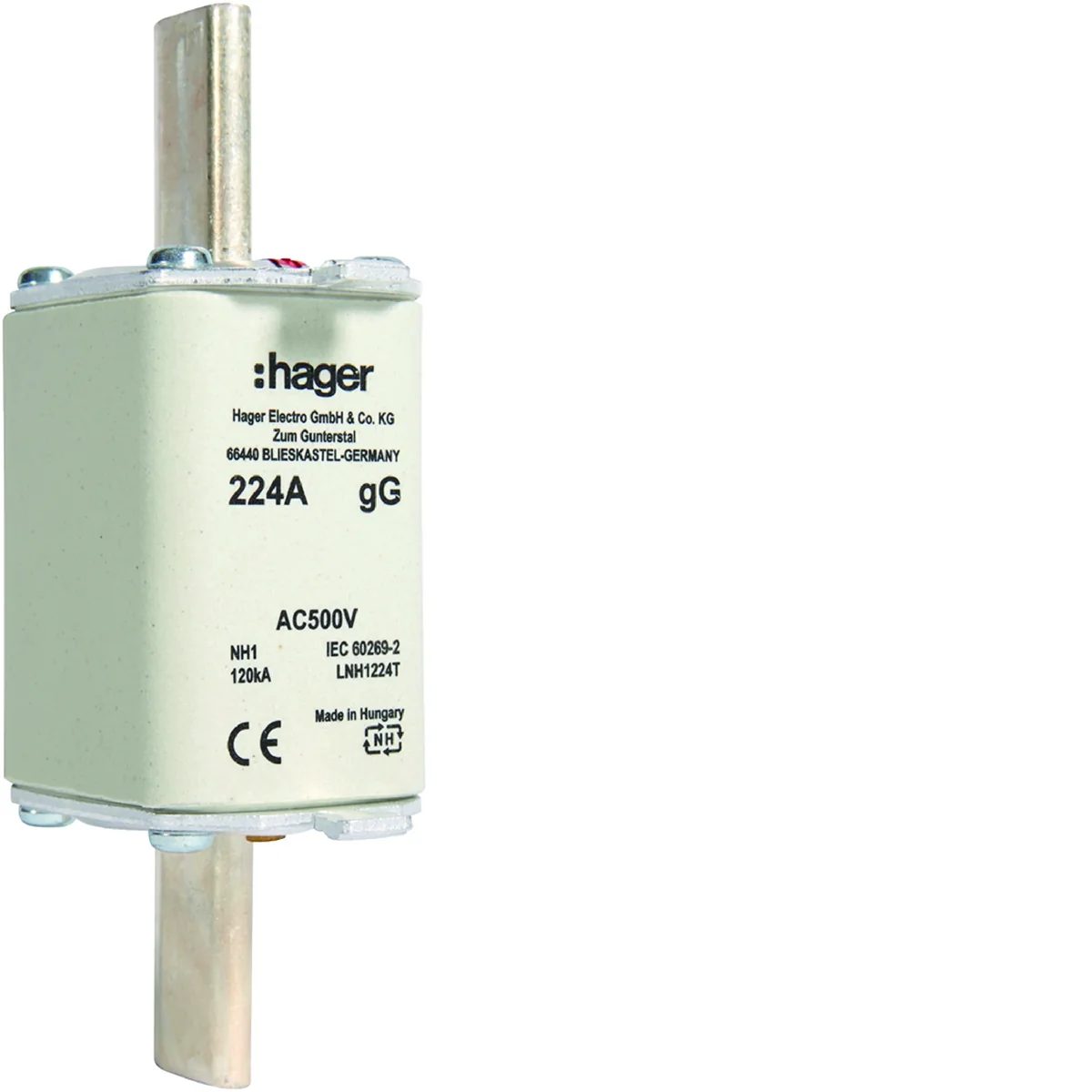

Knife fuse link NH1 224A AC 500V gG LNH1224T
local index:
ABI353HAGE
Catalog No:
LNH1224T
EAN code:
3250614132506
Price:
6,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Knife fuse link:
- single indicator,
- non-insulated handle,
- fuse characteristics: gG,< /li>
- trigger characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]17.4
-
Fuse link sizeNH1
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]thirty
-
Rated current [A]224
-
Width [mm]135
-
Height [mm]55
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorTop fuse status indicator
-
Rated current224 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 3 pcs. | 36 pcs. | 864 pcs. |
| Weight (kg) | 0,350 | 1,100 | 11,180 | 380,160 |
| Width (m) | 0,135 | 0,130 | 0,265 | 0,800 |
| Length (m) | 0,055 | 0,067 | 0,160 | 1,500 |
| Depth (m) | 0,030 | 0,140 | 0,355 | 1,200 |
