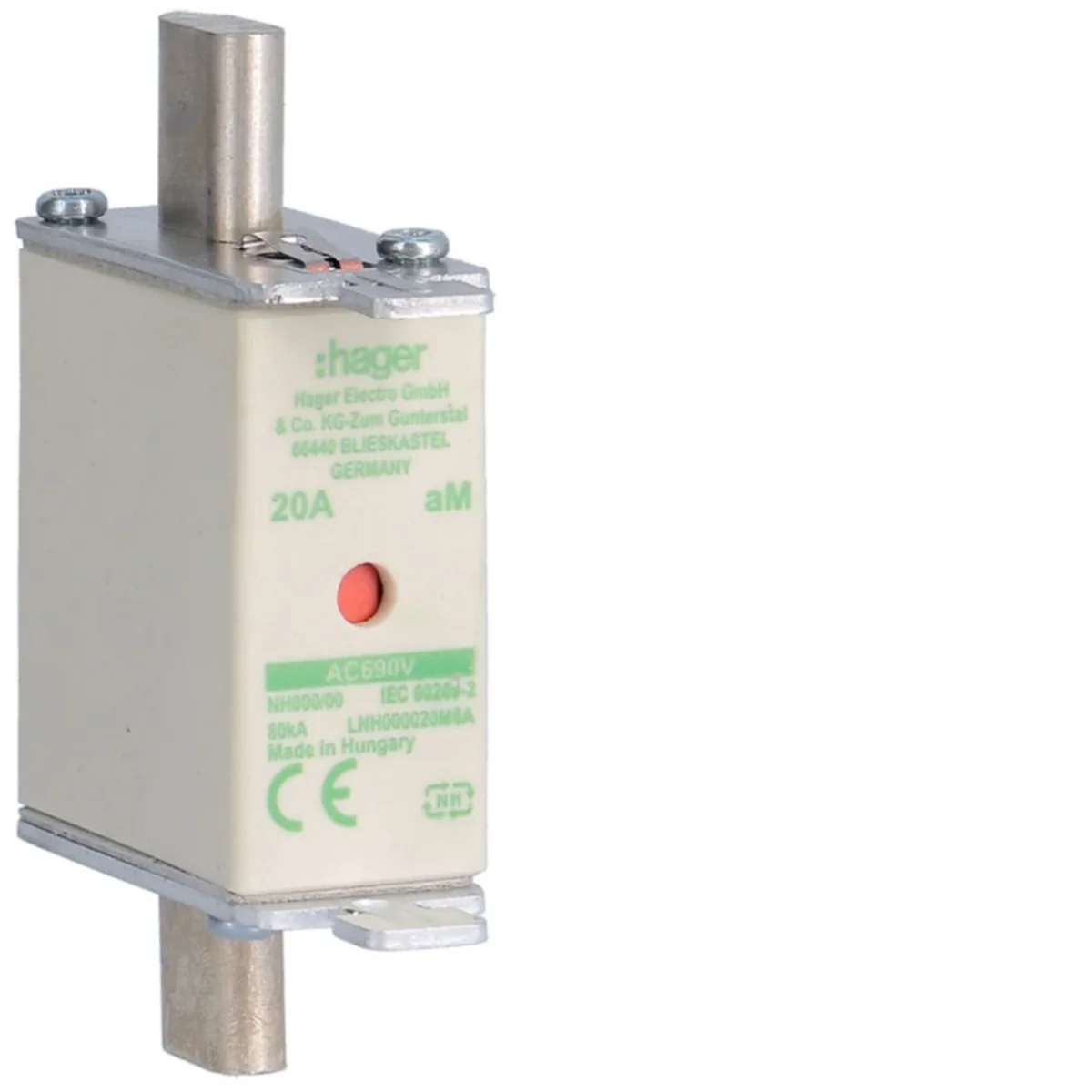

Knife fuse link NH000 aM 690V 20A LNH000020M6A

local index:
ABI251HAGE
Catalog No:
LNH000020M6A
EAN code:
3250614125683
Manufacturer: HAGER
Characteristic: aM
DC operating voltage [V]: 0/690/724
Rated current [A]: 20
Price:
8,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Knife fuse insert:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: aM,< /li>
  • trigger characteristics: aM.

Technical data

  • Characteristic
    aM
  • Rated current [A]
    20
  • Fuse link size
    NH000
  • Rated short-circuit breaking capacity Icn [kA]
    80
  • DC operating voltage [V]
    0/690/724
  • power loss [W]
    1
  • Rated switching voltage [V]
    0/690/724
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    20 A
  • Utilization category
    aM (switchgear protection)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 108 pcs. 3456 pcs.
Weight (kg) 0,118 0,380 14,040 449,280
Width (m) 0,021 0,070 0,290 0,800
Length (m) 0,079 0,061 0,145 1,500
Depth (m) 0,051 0,086 0,390 1,200
