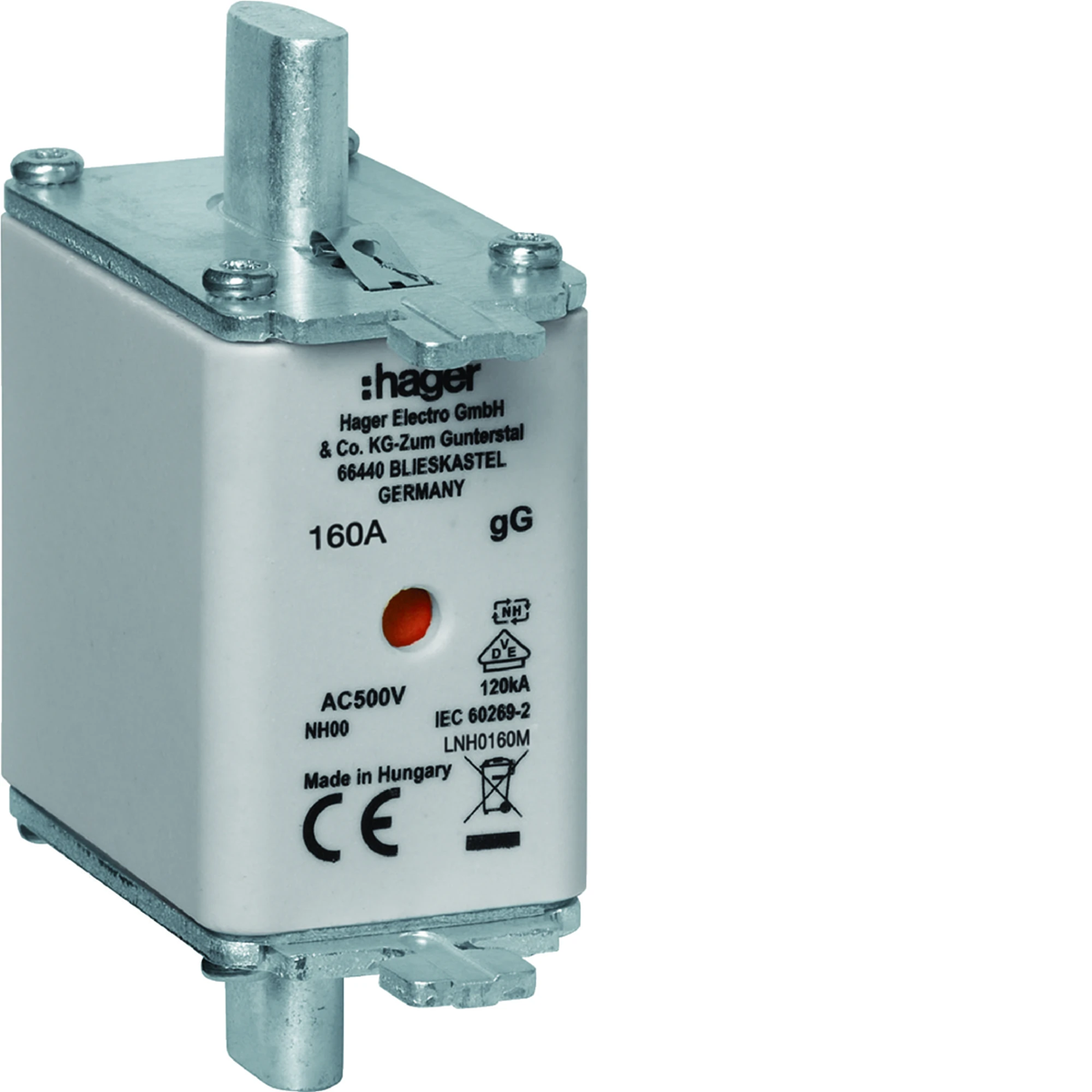

Knife fuse link NH00 gG with central indicator 160A 500V LNH0160M

local index:
ABI459HAGE
Catalog No:
LNH0160M
EAN code:
3250614120770
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 51
DC operating voltage [V]: 0/500/550
Price:
5,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Knife fuse insert:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gG,< /li>
  • trigger characteristics: gG.

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    12
  • Fuse link size
    NH00
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0
  • Length [mm]
    51
  • Rated current [A]
    160
  • Width [mm]
    21
  • Height [mm]
    79
  • Rated short-circuit breaking capacity Icn [kA]
    120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    160 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 66 pcs. 2112 pcs.
Weight (kg) 0,187 0,595 13,505 455,160
Width (m) 0,021 0,100 0,315 0,800
Length (m) 0,079 0,070 0,215 1,500
Depth (m) 0,051 0,085 0,365 1,200
