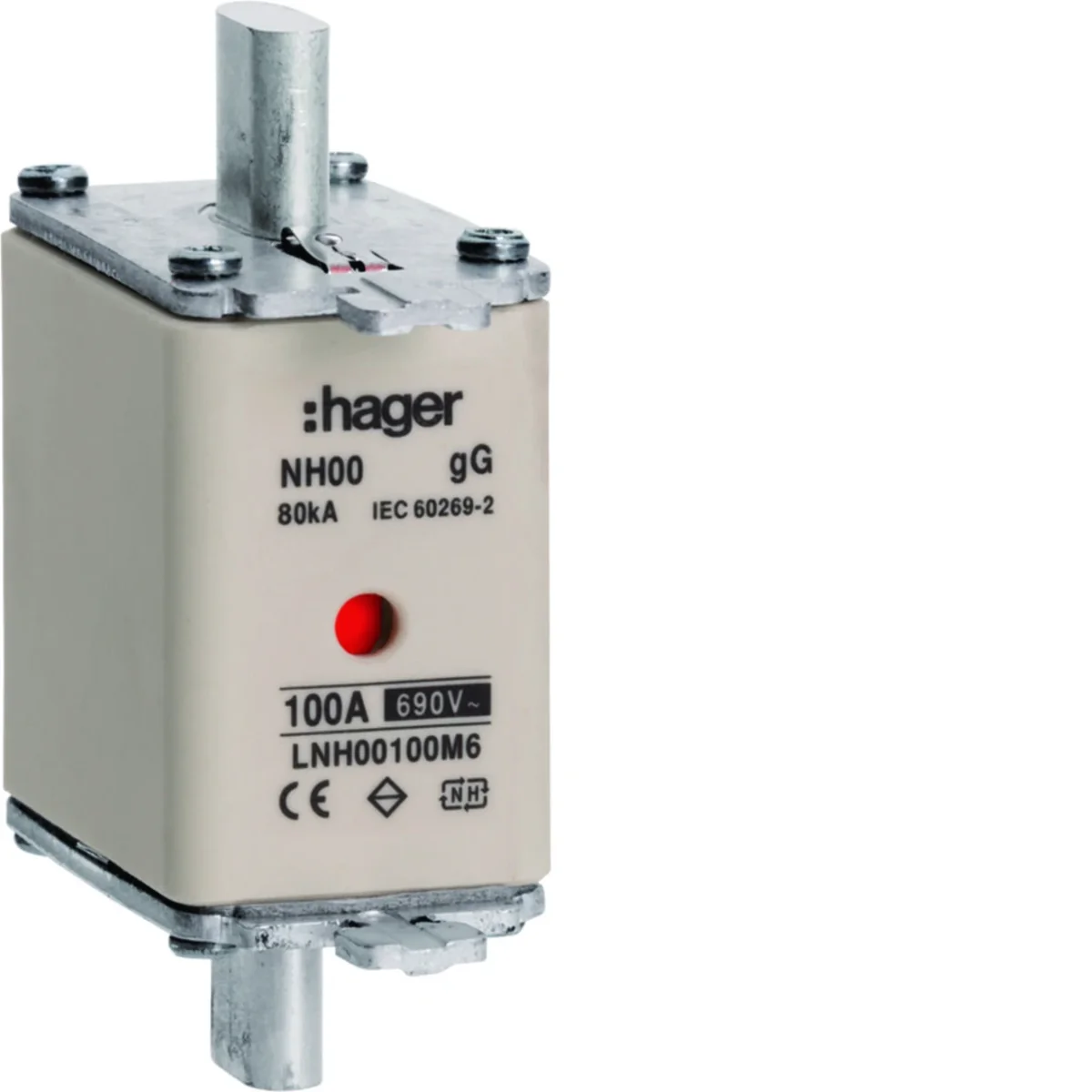

Knife fuse link NH00 gG 690V 100A LNH00100M6
local index:
ABM031HAGE
Catalog No:
LNH00100M6
EAN code:
3250614125324
Price:
11,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Knife fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gG,< /li>
- trigger characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/690/724
-
power loss [W]7.5
-
Fuse link sizeNH00
-
Rated switching voltage [V]0/690/724
-
PKWIU27.12.21.0
-
Depth [mm]79
-
Rated current [A]100
-
Width [mm]21
-
Height [mm]59.5
-
Rated short-circuit breaking capacity Icn [kA]80
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCentre fuse status indicator
-
Rated current100 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 3 pcs. | 66 pcs. | 2112 pcs. |
| Weight (kg) | 0,120 | 0,590 | 13,440 | 274,560 |
| Width (m) | 0,030 | 0,075 | 0,300 | 0,800 |
| Length (m) | 0,060 | 0,055 | 0,150 | 1,200 |
| Depth (m) | 0,079 | 0,085 | 0,400 | 1,200 |
