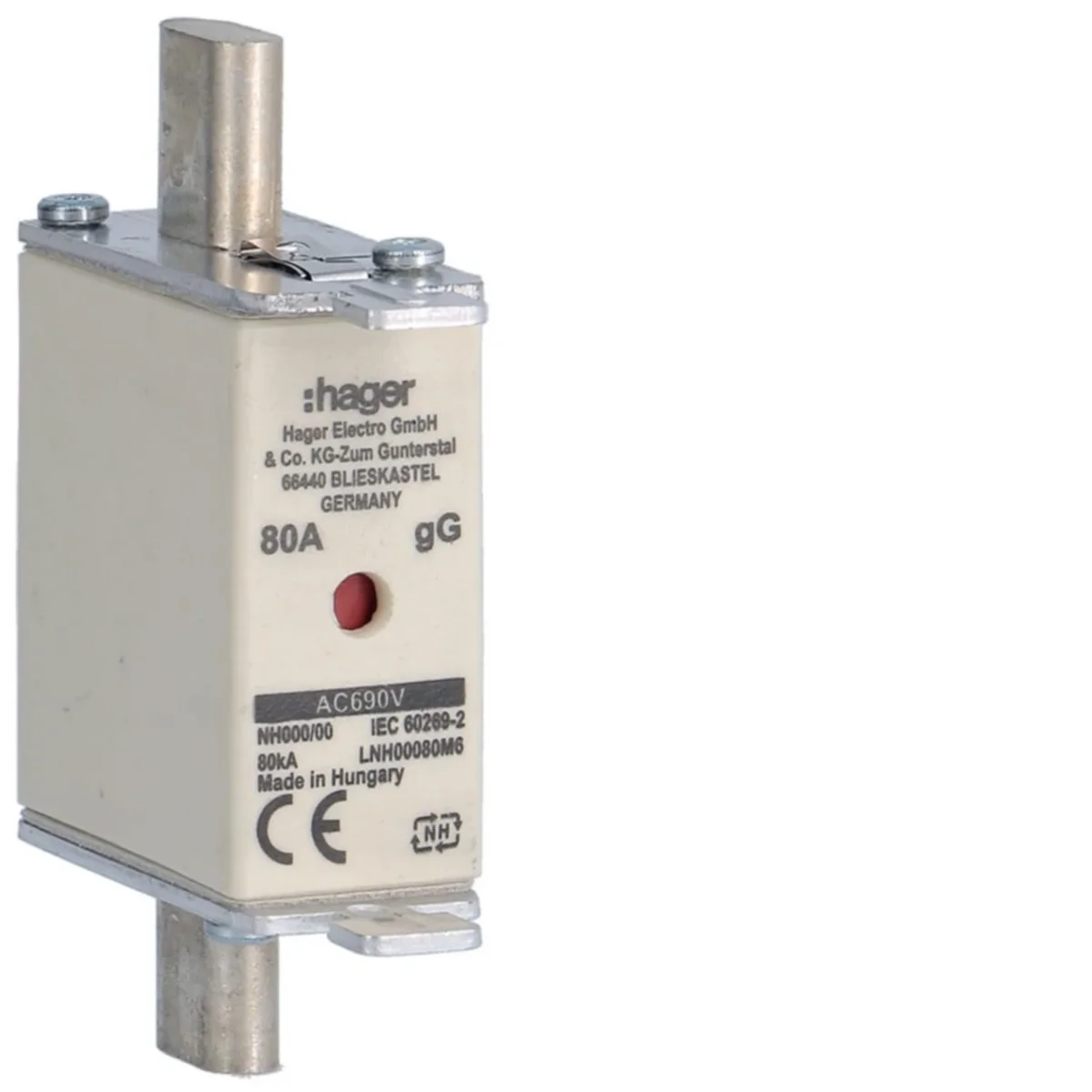

Knife fuse insert NH000/00 gG 690V 80A LNH00080M6
local index:
ABM029HAGE
Catalog No:
LNH00080M6
EAN code:
3250614125317
Price:
11,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Knife fuse link:
- double indicator,
- non-insulated handle,
- fuse link size: NH000/ 00,
- fuse characteristics: gG,
- trip characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/690/724
-
power loss [W]6.8
-
Fuse link sizeNH000
-
Rated switching voltage [V]0/690/724
-
PKWIU27.12.21.0
-
Depth [mm]78
-
Rated current [A]80
-
Width [mm]21
-
Height [mm]52.5
-
Rated short-circuit breaking capacity Icn [kA]80
Other technical data
-
Voltage typeAC
-
Rated switching capacity100 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current80 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 108 pcs. | 3456 pcs. |
| Weight (kg) | 0,360 | 12,960 | 414,720 |
| Width (m) | 0,070 | 0,300 | 0,800 |
| Length (m) | 0,060 | 0,150 | 1,000 |
| Depth (m) | 0,080 | 0,400 | 1,200 |
