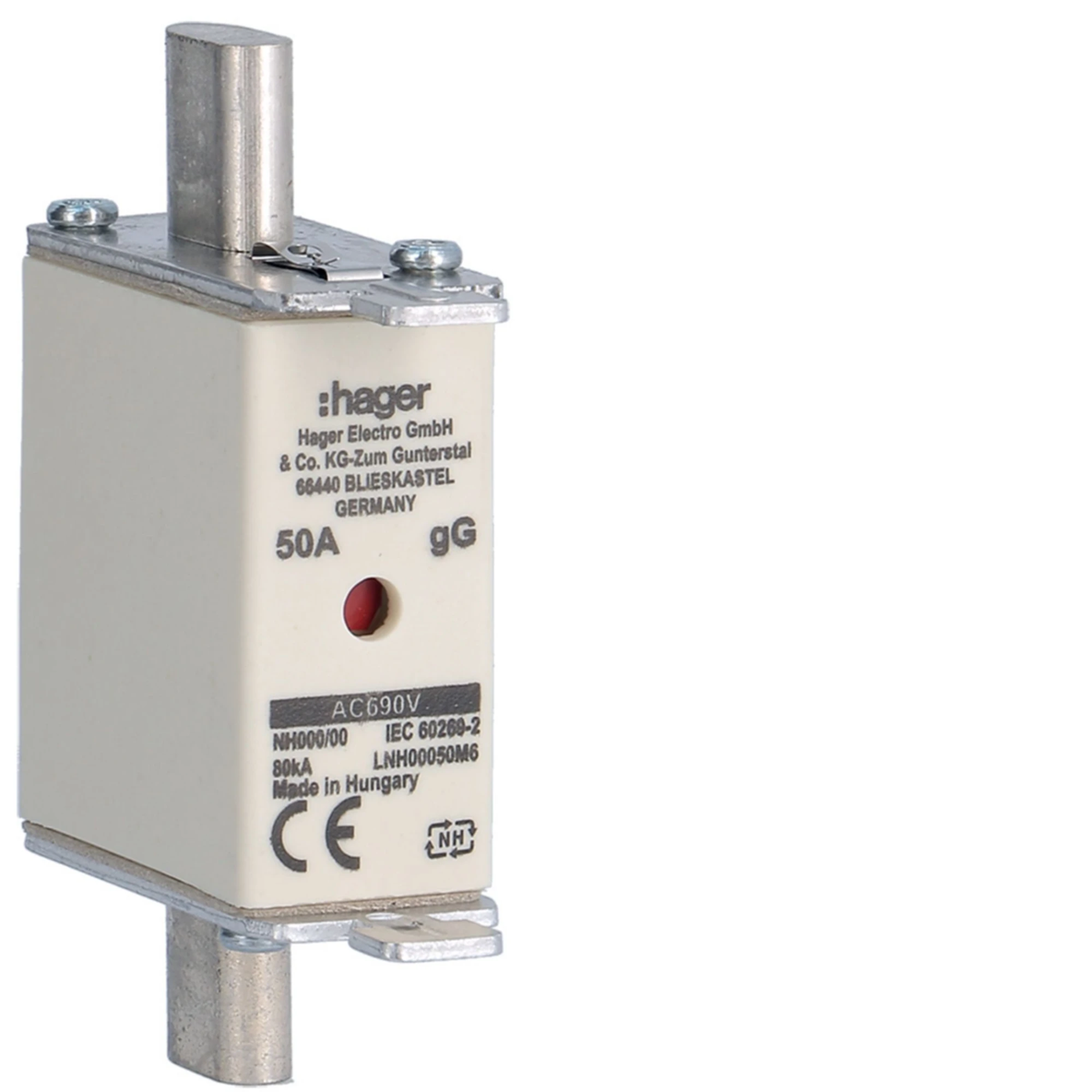

Knife fuse insert NH00 gG 690V 50A LNH00050M6

local index:
ABM025HAGE
Catalog No:
LNH00050M6
EAN code:
3250614125294
Manufacturer: HAGER
Characteristic: gG
Depth [mm]: 78
DC operating voltage [V]: 0/690/724
Price:
11,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Knife fuse link:

  • double indicator,
  • non-insulated handle,
  • fuse link size: NH000/ 00,
  • fuse characteristics: gG,
  • trip characteristics: gG.

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/690/724
  • power loss [W]
    4.1
  • Fuse link size
    NH000
  • Rated switching voltage [V]
    0/690/724
  • PKWIU
    27.12.21.0
  • Depth [mm]
    78
  • Rated current [A]
    50
  • Width [mm]
    21
  • Height [mm]
    52.5
  • Rated short-circuit breaking capacity Icn [kA]
    80

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    50 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 108 pcs. 3456 pcs.
Weight (kg) 0,120 0,380 14,020 449,280
Width (m) 0,021 0,070 0,300 0,800
Length (m) 0,052 0,061 0,155 1,000
Depth (m) 0,078 0,086 0,400 1,200
