IP65 bipolar pushbutton 1 NC 1 NO contact SP22-2KL-11\Z/C

local index:
AKS072SPAM
Catalog No:
SP22-2KL-11\Z/C
EAN code:
5907723052956
Manufacturer: SPAMEL
Material: Thermoplastic
Rated current [A]: 10
Level of security: IP65
Price:
13,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

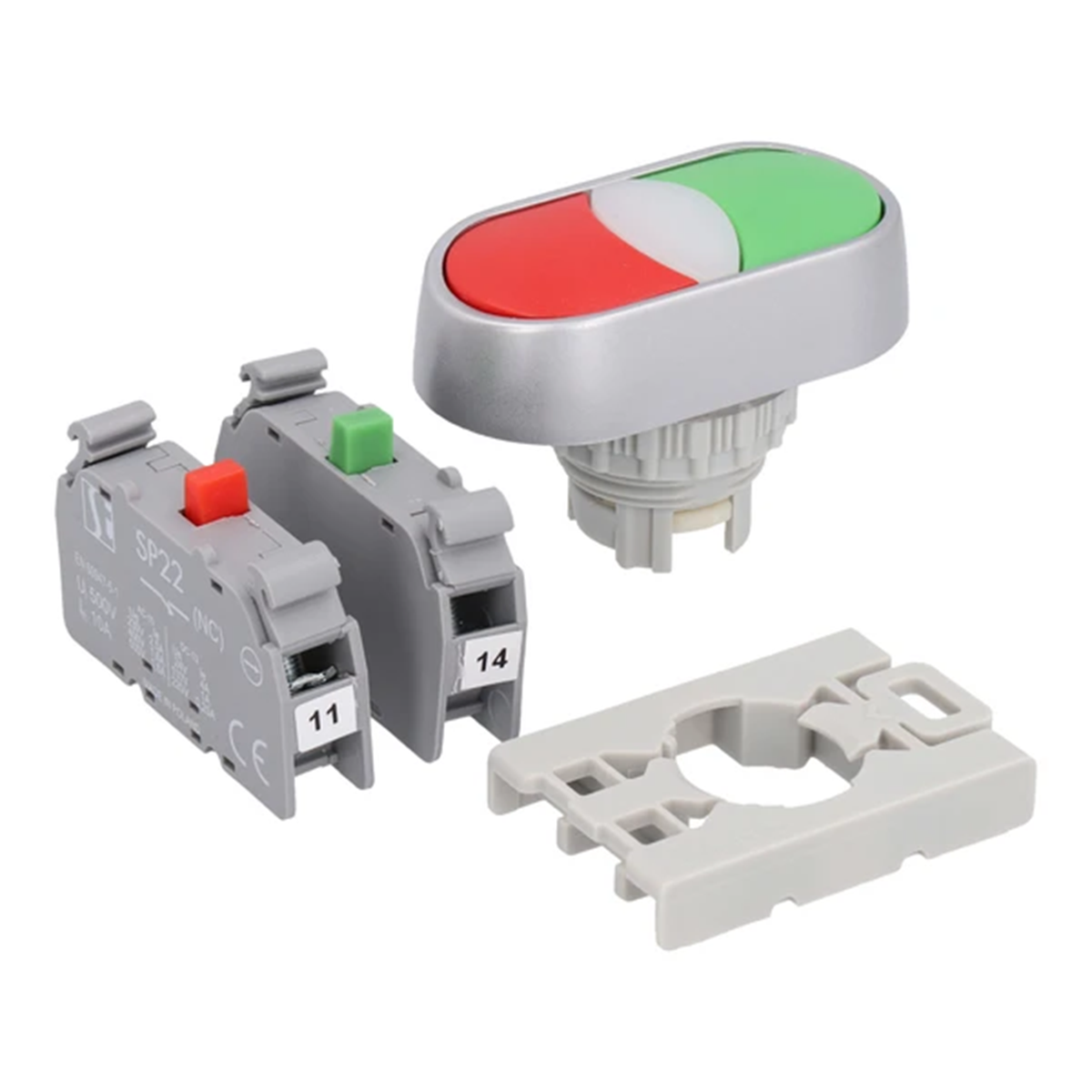

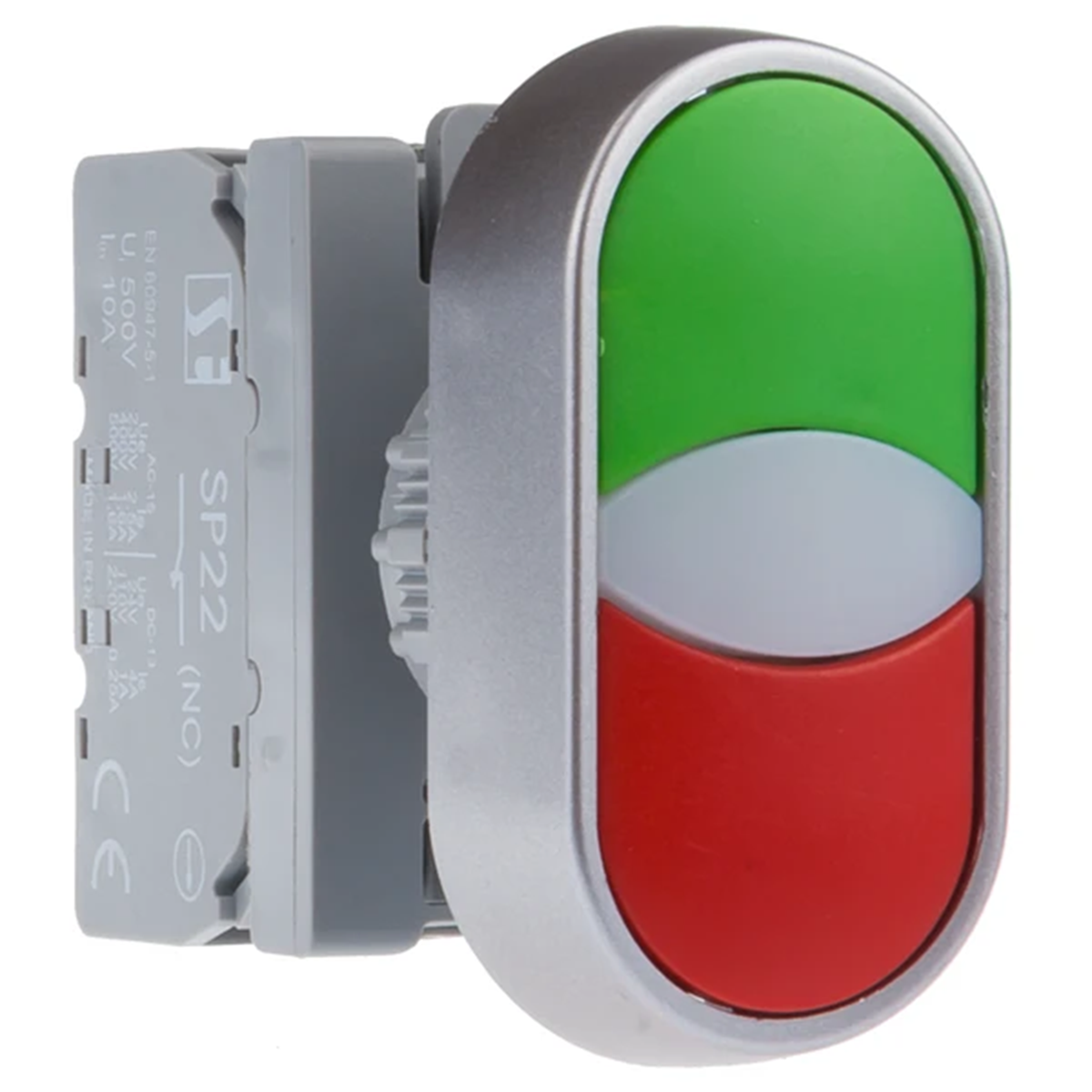

IP65 bipolar pushbutton 1 NC 1 NO contact

Technical data

  • Material
    Thermoplastic
  • Level of security
    IP65
  • Rated current [A]
    10

Other technical data

  • Number of command positions
    2
  • Colour button
    Red/green
  • Hole diameter
    22 mm
  • Height opening
    22 mm
  • Switching function latching
    No
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    Yes
  • Colour front ring
    Grey
  • Type of button
    Flat
  • Construction type lens
    Oval
  • Width opening
    22 mm
  • Suitable for illumination
    No
  • Spring-return
    Yes
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP65
