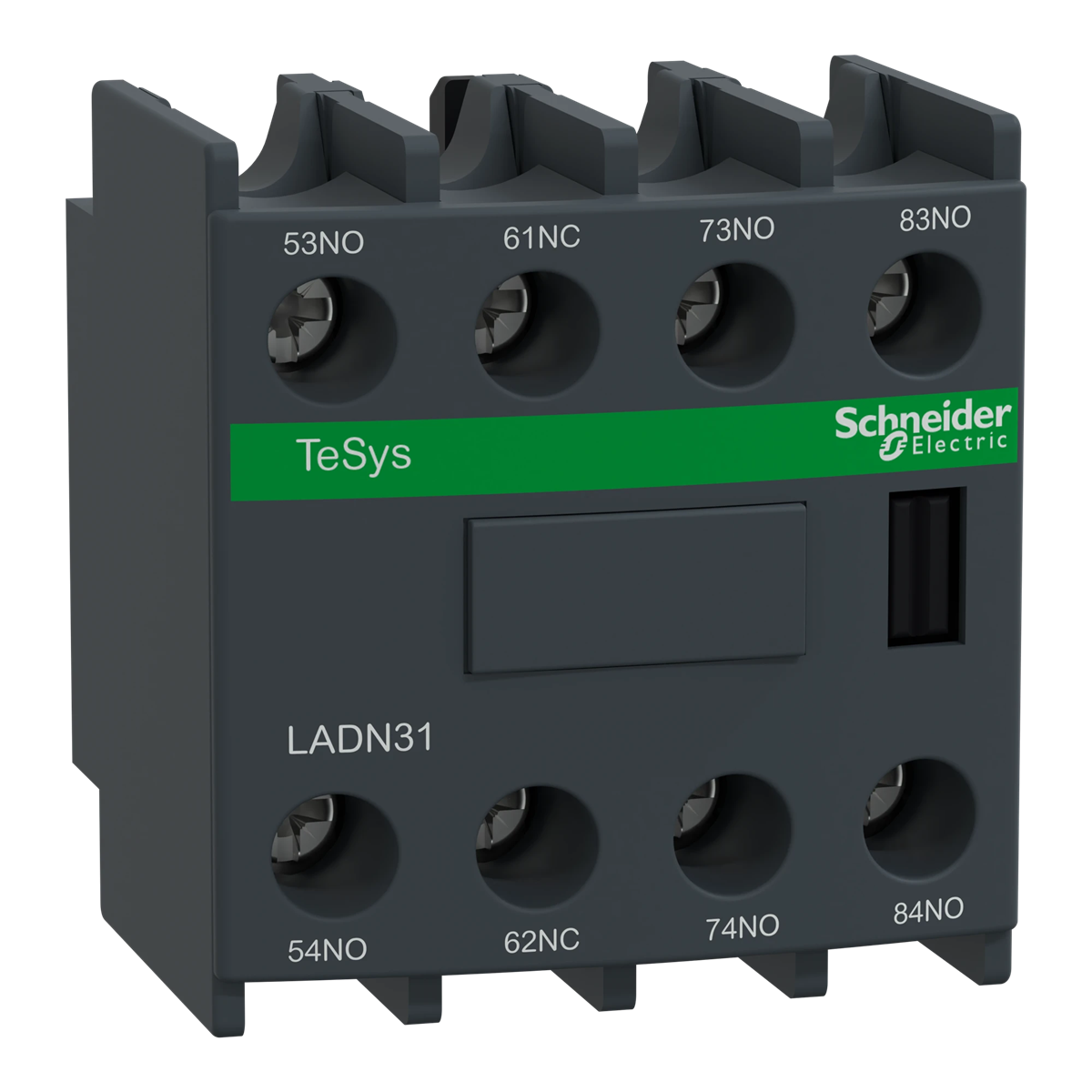

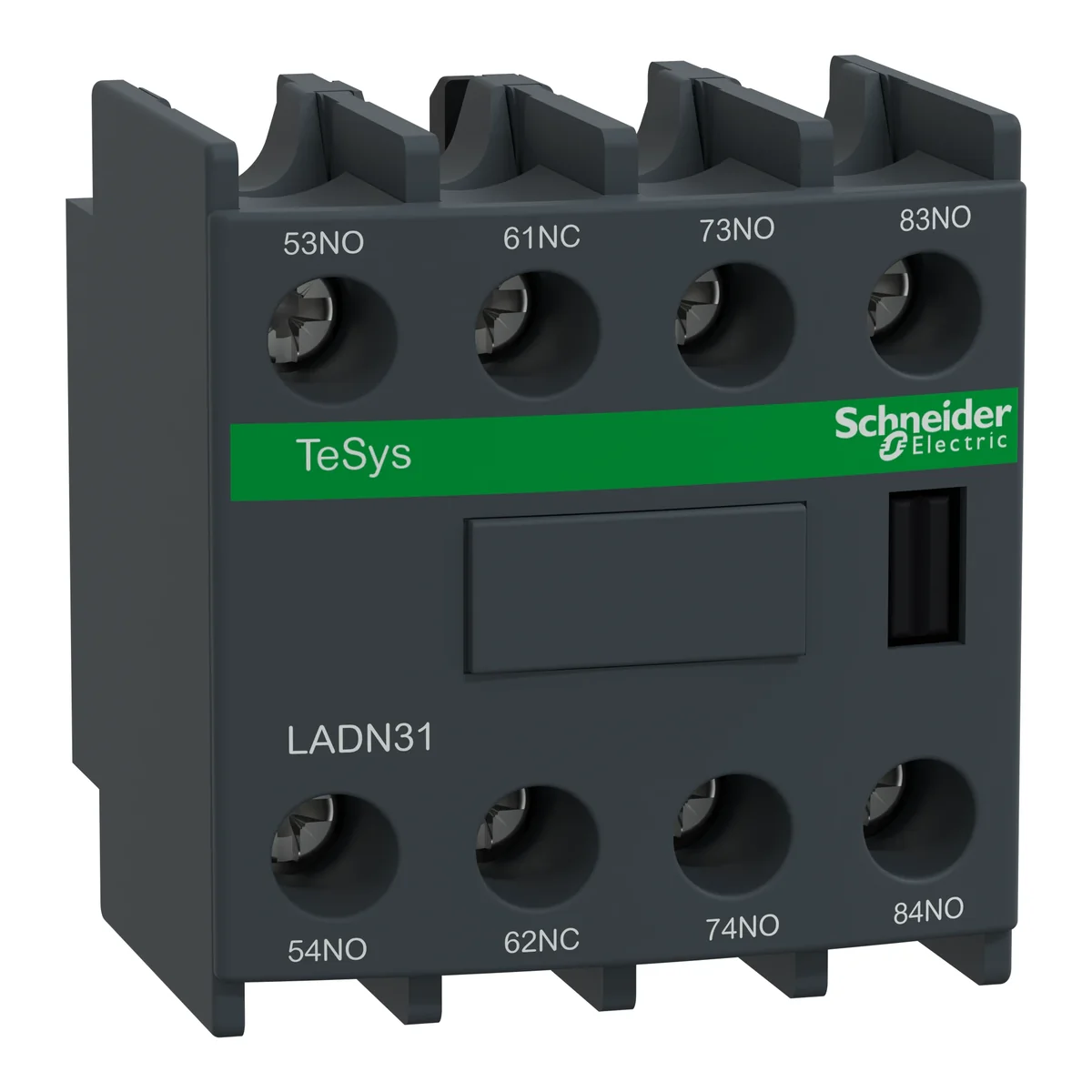

Instantaneous contact block 3NO+1NC LADN31

local index:
ATC011SCHN
Catalog No:
LADN31
EAN code:
3389110384178
Manufacturer: SCHNEIDER ELECTRIC
Minimum switching current [mA]: 5
Rated insulation voltage [V]: 600/690
Contact: 3NO+1NC
Price:
16,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Instantaneous contact block 3NO+1NC

Technical data

  • Minimum switching current [mA]
    5
  • Contact
    3NO+1NC
  • Rated insulation voltage [V]
    600/690
  • PKWIU
    27.12.40.0

Other technical data

  • Number of contacts as change-over contact
    0
  • Number of contacts as normally closed contact
    1
  • Rated operation current Ie at AC-15, 230 V
    10 A
  • Model
    Clip-on
  • Number of contacts as normally open contact
    3
  • Number of fault-signal switches
    0
  • Type of electric connection
    Screw connection
  • Mounting method
    Front fastening
