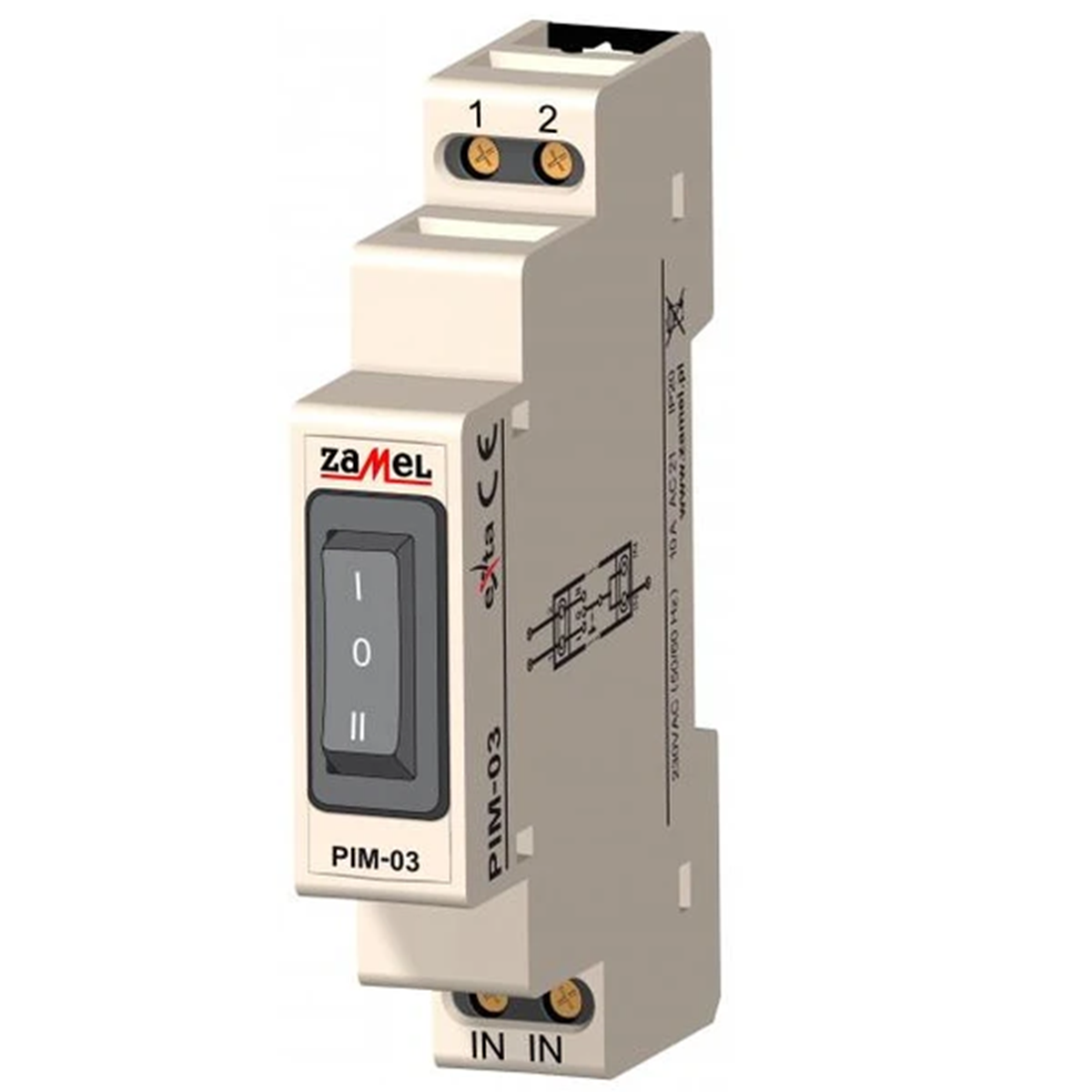

Installation switch I-0-II 230V TYPE: PIM-03 EXT10000100

local index:
ABN004ZAME
Catalog No:
EXT10000100
EAN code:
5903669016601
Manufacturer: ZAMEL
Length [mm]: 66
Installation: On the TH-35 rail
Rated voltage [V]: 230
Price:
12,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

The PIM-03 installation switch is used in control systems. Thanks to the three-position I-0-II switch, the device gives you the option of controlling one of the two output circuits or switching them off completely. It enables cooperation and control of other building automation products or directly receivers with a maximum current of 10 A.

Technical data

  • Length [mm]
    66
  • Rated voltage [V]
    230
  • Family
    EXTA
  • Width [mm]
    17, 5
  • Height [mm]
    90
  • PKWIU
    27.12.40.0
  • Installation
    On the TH-35 rail
  • Output current [A]
    10
  • Level of security
    IP20
  • Type
    switches
  • Output current [A]
    10
