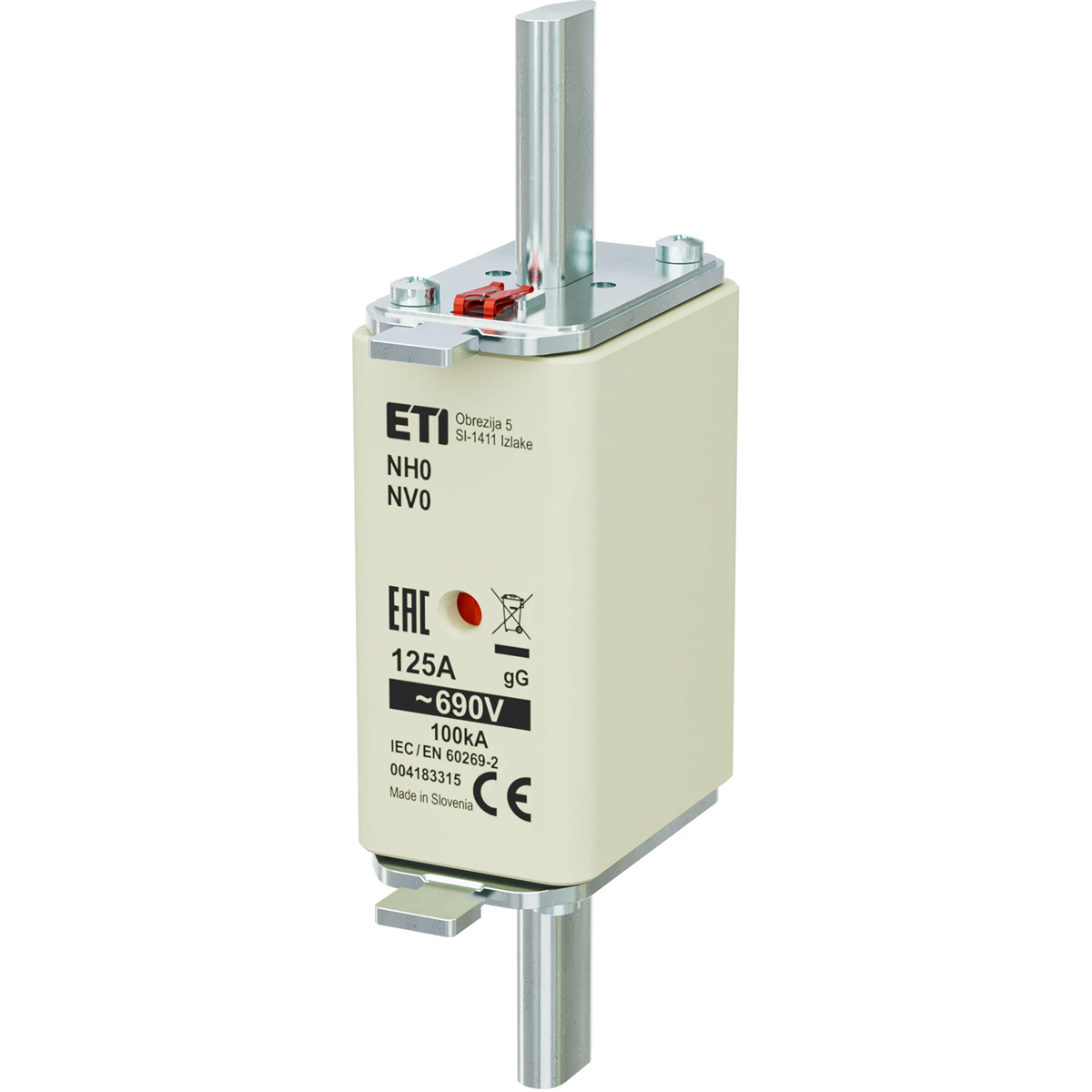

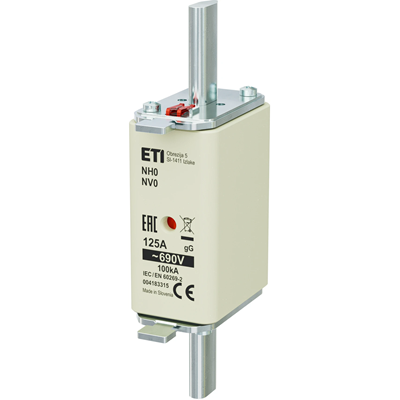

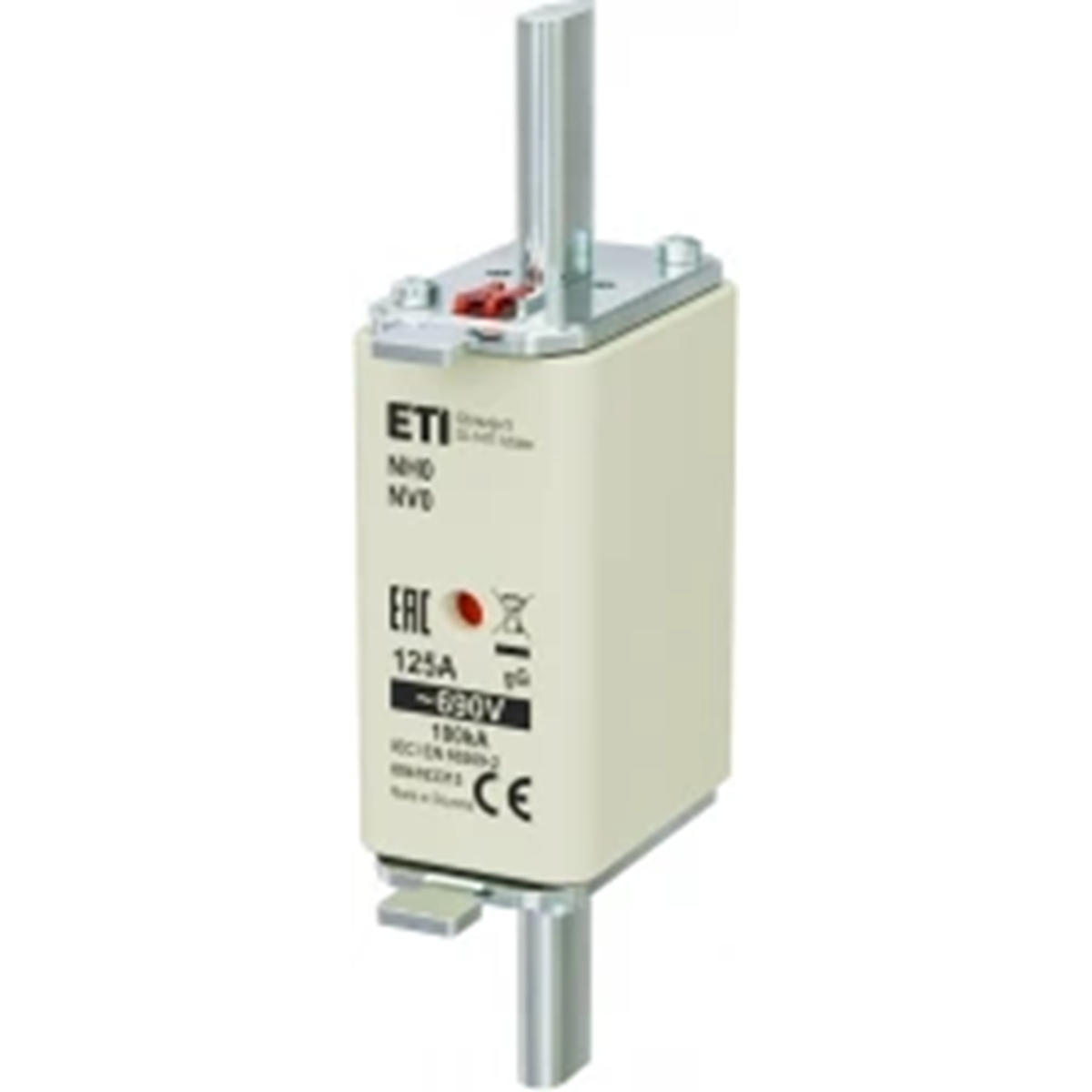

Name: Industrial slow fuse link WT-0/gG 125A K 690
Brand: ETI POLAM
SKU: ABM039ETIP
Price: 57.08 PLN

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of the high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1.3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Rated voltage [V]

690
Pieces in the package

3
Rated short-circuit capacity [kA]

120

Rated current [A]

125
Weight [g]

226
PKWIU

27.12.21.0

Other technical data

Voltage type

AC
Rated switching capacity

100 kA
Type of fuse status indicator

Combination fuse status indicator

Rated current

125 A
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

A kind of package	Pudełko	Pudełko
Quantity	1 pkg.	15 pkg.
Weight (kg)	0,550	-
Volume (m3)	0,001	-
Width (m)	0,139	0,295
Length (m)	0,150	0,235
Depth (m)	0,065	0,245
