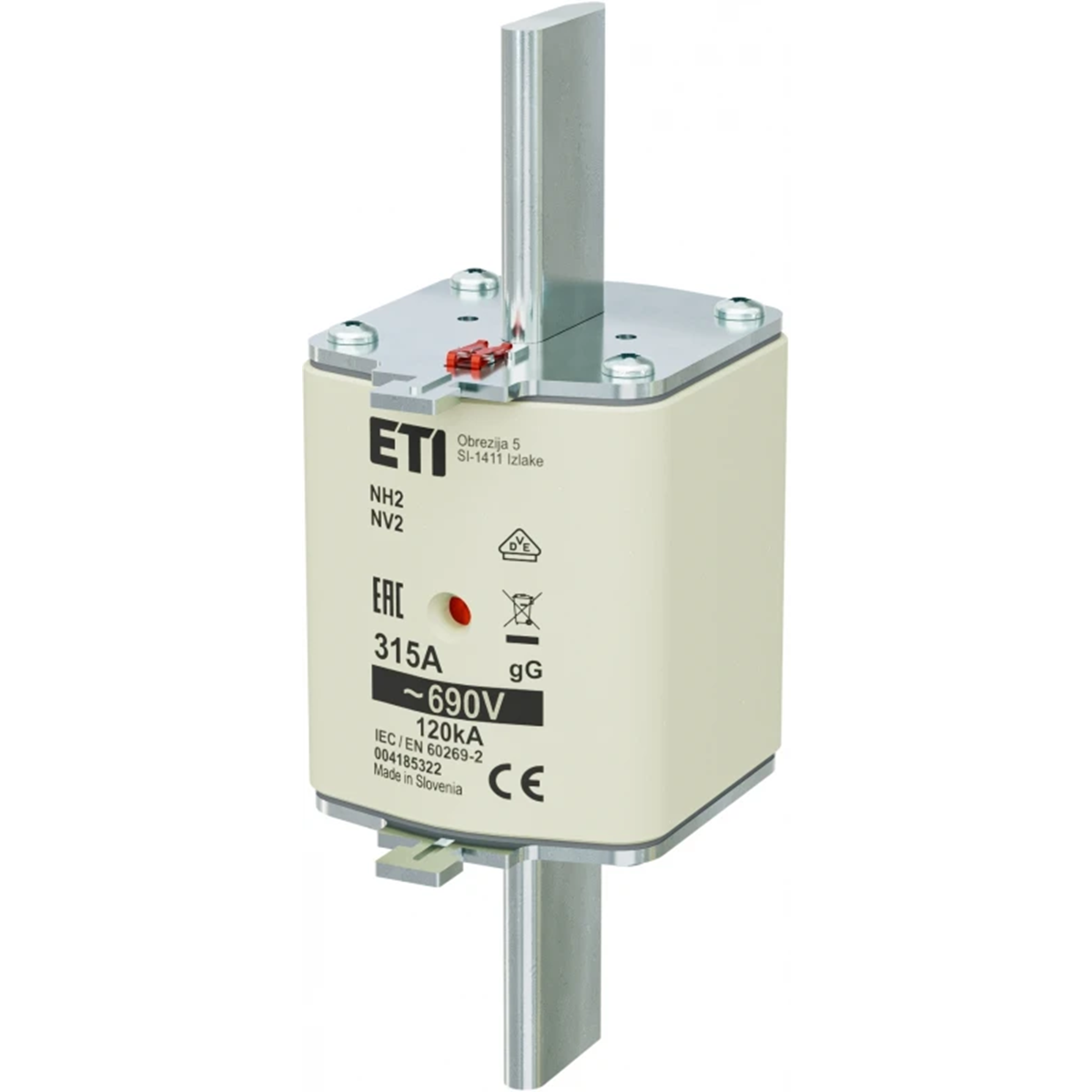

Industrial slow-blow fuse link WT-2/gG 315A K 690 004185322

Index local:
ABM724ETIP
Numéro de catalogue:
004185322
Code EAN:
3838895906889
Producteur: ETI POLAM
Rated voltage [V]: 690
Rated current [A]: 315
Pieces in the package: 3
Prix:
316,25 zł
gross / pack
(y compris la TVA 23%)
105,42 zł gross/pcs.
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pack
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1.3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Données techniques

  • Rated voltage [V]
    690
  • Pieces in the package
    3
  • Rated short-circuit capacity [kA]
    120
  • Rated current [A]
    315
  • Weight [g]
    500
  • PKWIU
    27.12.21.0

Autres données techniques

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    315 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Détails du fabricant

Emballage en vrac

Une sorte de paquet Pudełko Pudełko Pudełko Pudełko
Quantité 1 pack 5 pack 1 pack 5 pack
poids (kg) 1,740 8,700 1,740 8,700
Volume (m3) 0,002 0,017 0,002 0,017
Largeur (m) 0,074 0,230 0,074 0,230
Longueur (m) 0,166 0,250 0,166 0,250
Profondeur (m) 0,150 0,290 0,150 0,290
