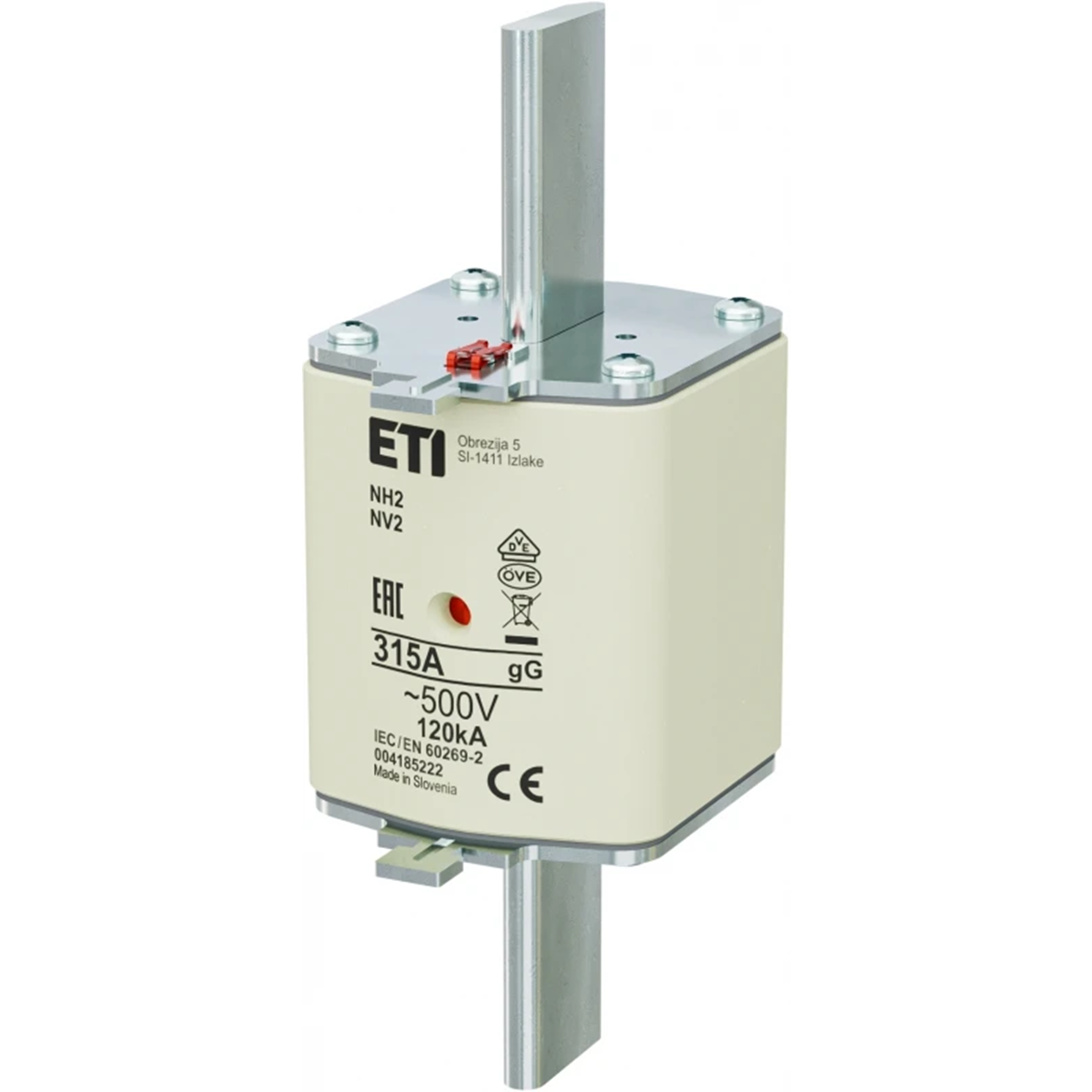

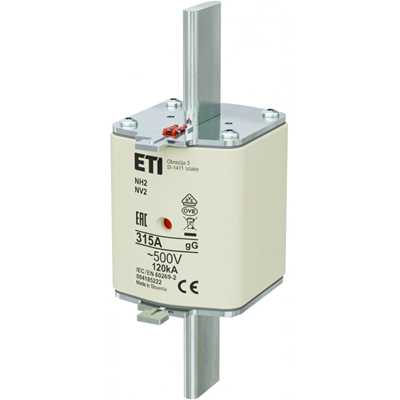

NH2 gG fuse-link 315A/500V 004185222 ETI

Fuse-links protect power installations. During a short circuit or overload, one of the conductive elements in the fuse melts. Which breaks the electrical circuit. This allows you to protect devices connected to the network against the effects of short-circuits and overloads.

Fuse-links are designed to protect power installations against the effects of short-circuits and overloads

Their electrical parameters and external dimensions are in accordance with the requirements of the following standards:

Characteristic

gG
Type

NH
AC rated voltage [V]

500

Rated current [A]

315
Size

NH2
PKWIU

27.12.21.0

Other technical data

Voltage type

AC
Rated switching capacity

120 kA
Type of fuse status indicator

Combination fuse status indicator

Rated current

315 A
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

A kind of package	Pudełko	Pudełko
Quantity	3 pcs.	15 pcs.
Weight (kg)	1,780	8,500
Volume (m3)	0,002	0,017
Width (m)	0,166	0,295
Length (m)	0,150	0,235
Depth (m)	0,074	0,245
