413882
0

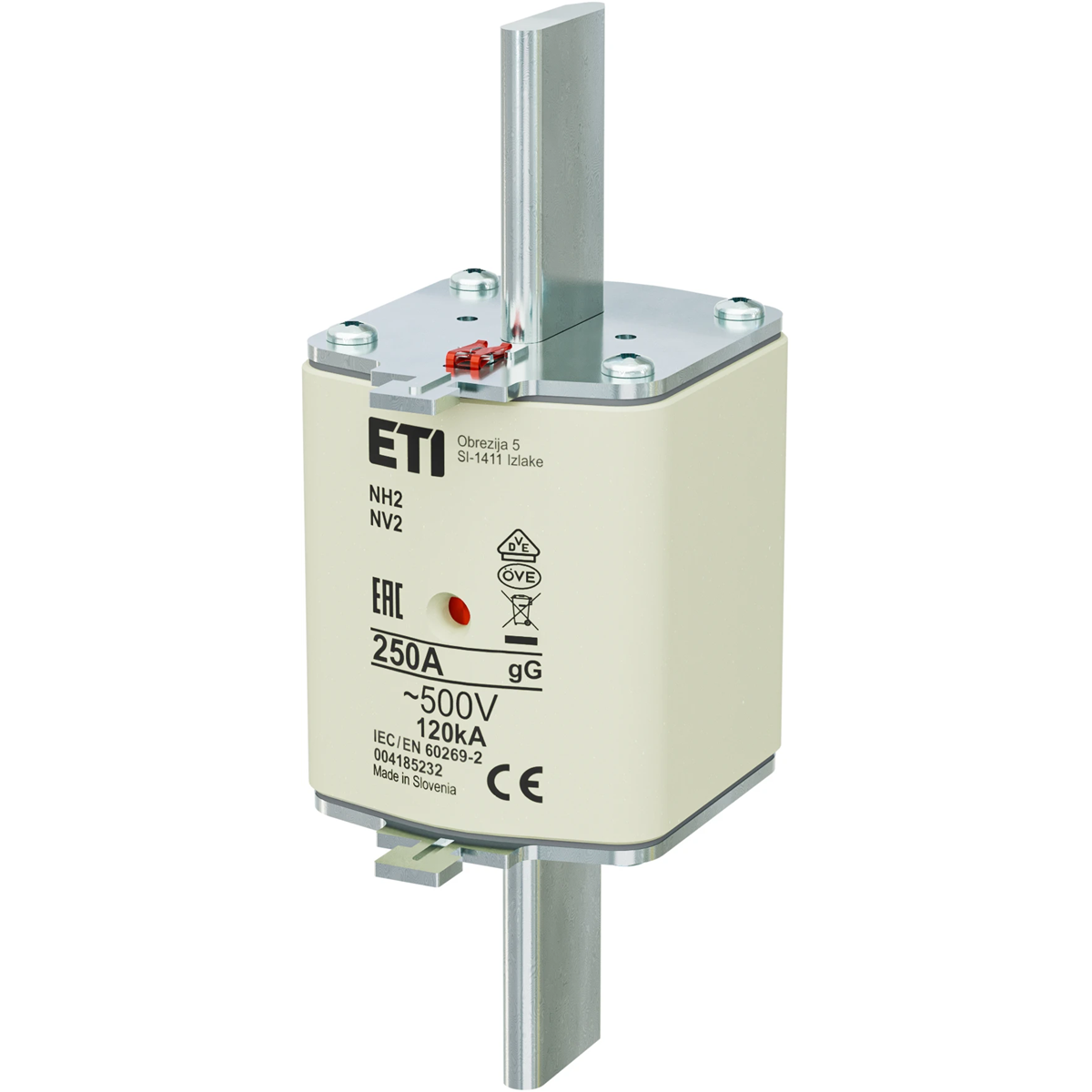

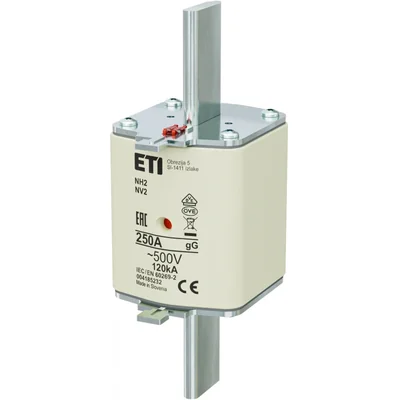

Industrial slow-blow fuse link NH2 gG 250A/500V 004185232
local index:
ABM202ETIP
Catalog No:
004185232
EAN code:
3838895354642
Price:
14,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
NH2 gG 250A/500V fuse-link designed to protect power installations against the effects of short circuits and overloads.
Electrical parameters and external dimensions comply with the requirements of the following standards:
- PN-93/E-06160 (gF),
- PN-IEC-269, VDE 0636.
KOMBI provides very good visibility of the fuse link operating status both in fuse bases and fuse switch disconnectors.
Usage of fuse links:
- protection of power installations against the effects of short circuits and overloads,
- correct protection of motors with low rated current.
Technical data
-
CharacteristicgG
-
TypeNH
-
AC rated voltage [V]500
-
Rated current [A]250
-
SizeNH2
-
PKWIU27.12.21.0
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current250 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 3 pcs. | 15 pcs. |
| Weight (kg) | - | 8,500 |
| Volume (m3) | - | 0,017 |
| Width (m) | 0,166 | 0,295 |
| Length (m) | 0,150 | 0,235 |
| Depth (m) | 0,074 | 0,245 |
