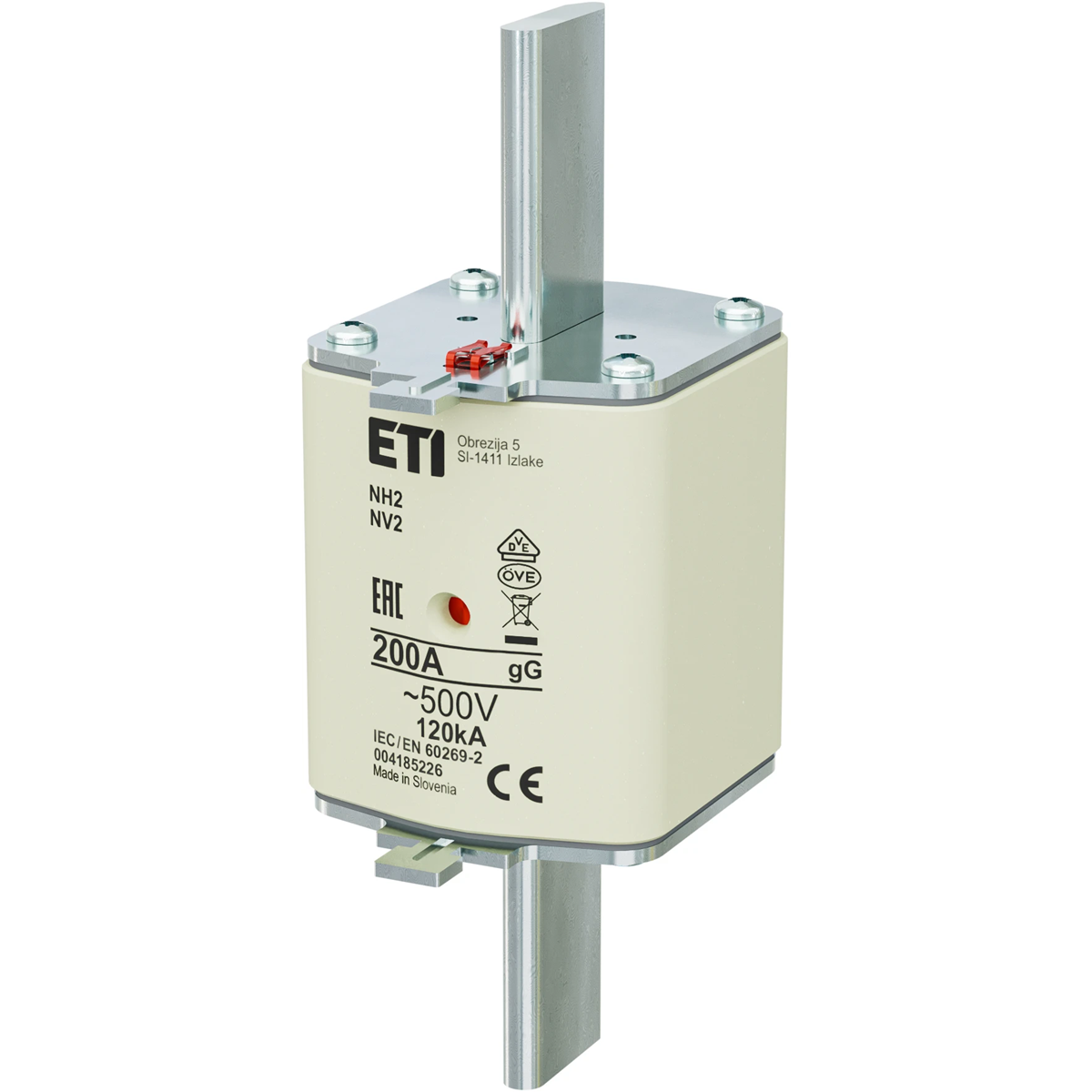

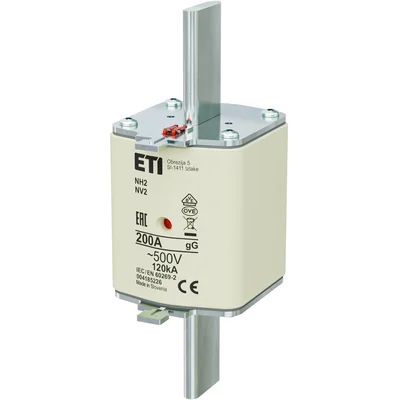

Industrial slow-blow fuse link NH2 gG 200A/500V 004185226

local index:
ABM201ETIP
Catalog No:
004185226
EAN code:
3838895355984
Manufacturer: ETI POLAM
Characteristic: gG
Rated current [A]: 200
Type: NH
Price:
14,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 41 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NH2 gG 200A/500V fuse-link is a series of fuse-links with a double activation indicator. The combination of both operation indicators means that both the front indicator and the indicator located on the top cover will operate simultaneously when the insert burns out.

KOMBI provides very good visibility of the condition operation of the fuse link both in fuse bases and switch disconnectors.

Application of fuse links:

  • protection of power installations against the effects of short circuits and overloads,< /li>
  • correct protection of low rated current motors.

Technical data

  • Characteristic
    gG
  • Type
    NH
  • AC rated voltage [V]
    500
  • Rated current [A]
    200
  • Size
    NH2
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    200 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 15 pcs.
Weight (kg) - 8,500
Volume (m3) - 0,017
Width (m) 0,166 0,295
Length (m) 0,150 0,235
Depth (m) 0,074 0,245
