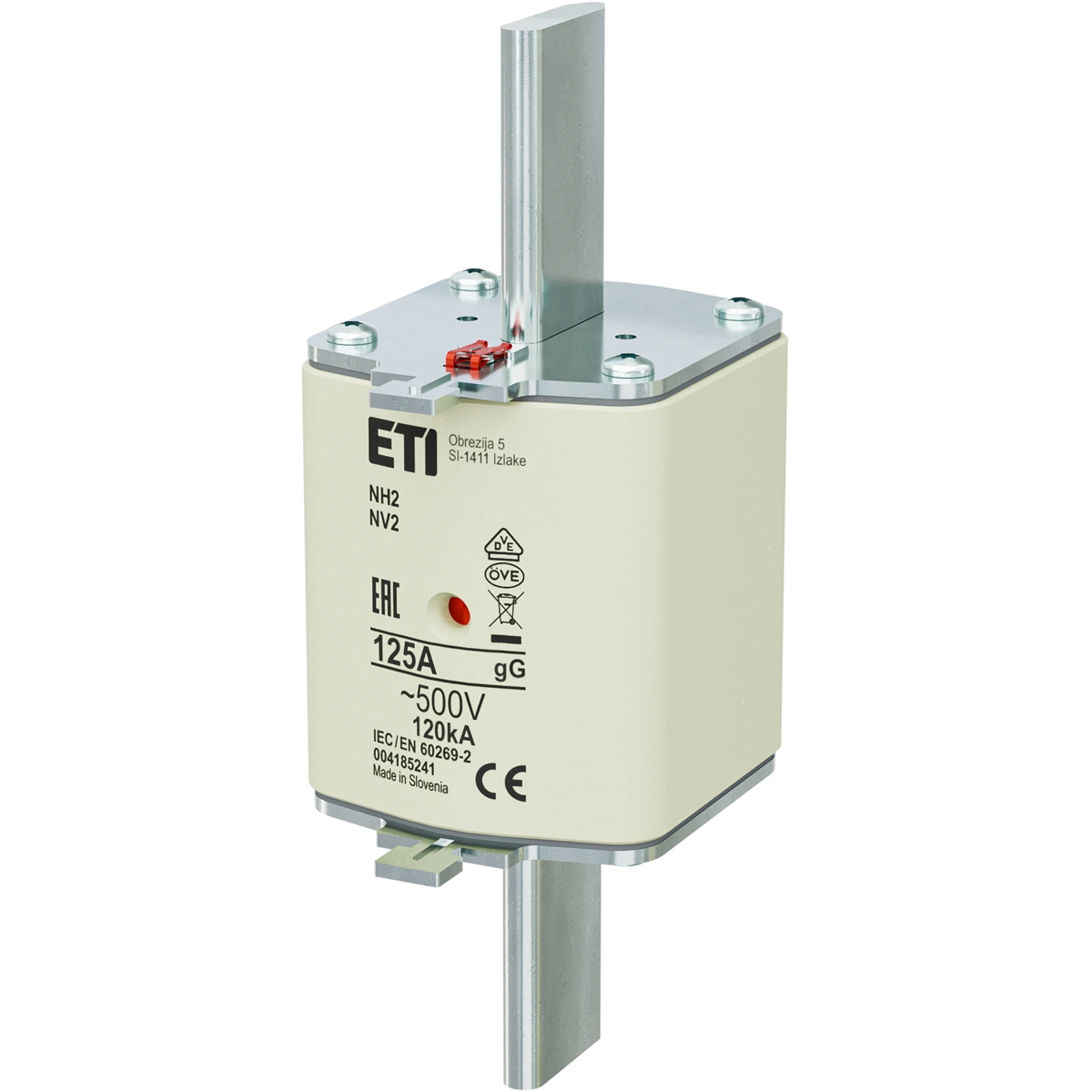

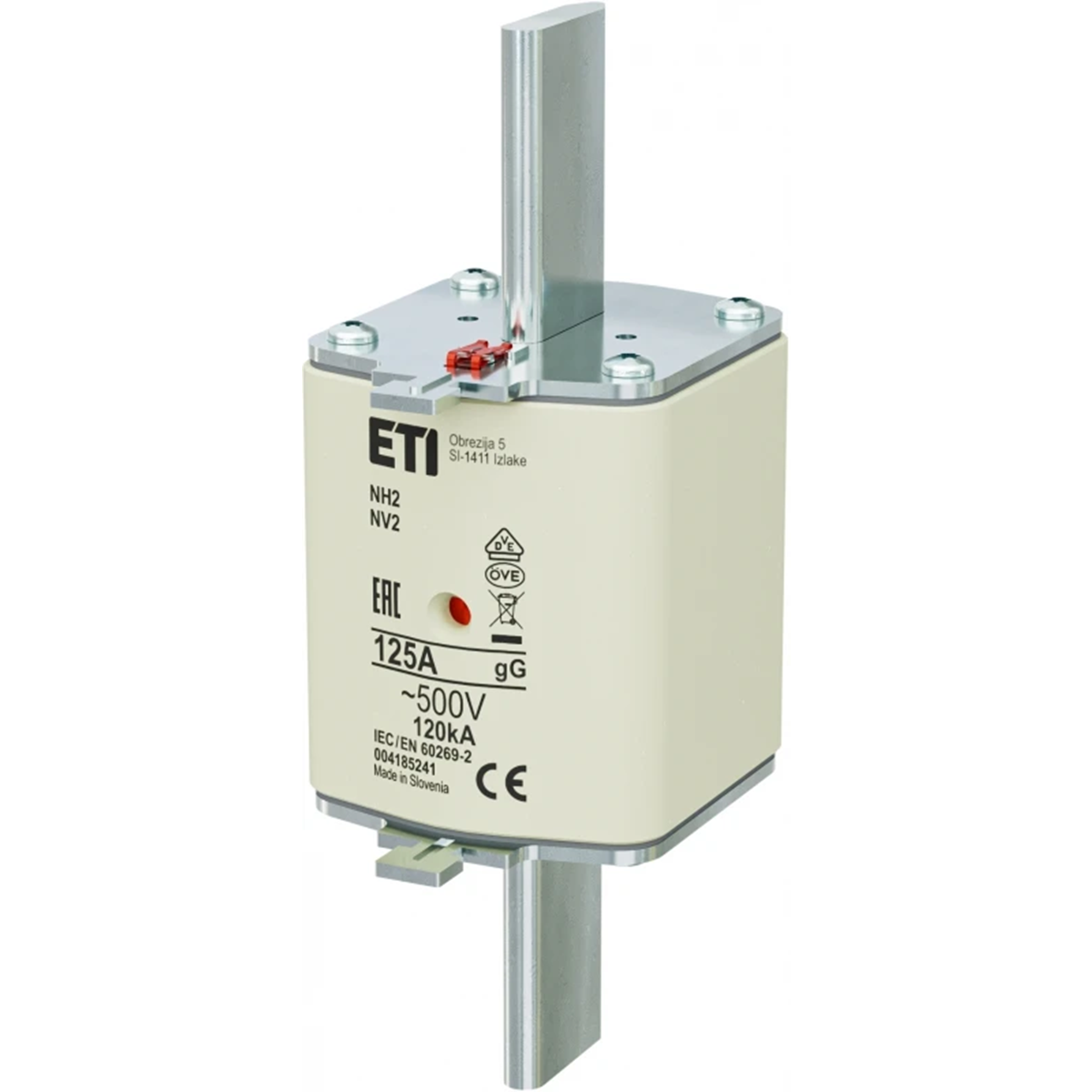

Industrial slow-blow fuse link NH2 gG 125A/500V 004185241

local index:
ABM209ETIP
Catalog No:
004185241
EAN code:
3838895933182
Manufacturer: ETI POLAM
Characteristic: gG
Rated current [A]: 125
Type: NH
Price:
14,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 36 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NH2 gG 125A/500V fuse-link designed  to protect power installations against the effects of short-circuits and overloads. The body of the fuse-link is made of full-fledged steatite, which is very resistant to loads

The electrical parameters and external dimensions comply with the requirements of the following standards:

  • PN-93/E-06160 (gF),< /li>
  • PN-IEC-269, VDE 0636.

Technical data

  • Characteristic
    gG
  • Type
    NH
  • AC rated voltage [V]
    500
  • Rated current [A]
    125
  • Size
    NH2
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    125 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 15 pcs.
Weight (kg) - 8,500
Volume (m3) - 0,017
Width (m) 0,166 0,295
Length (m) 0,150 0,235
Depth (m) 0,074 0,245
