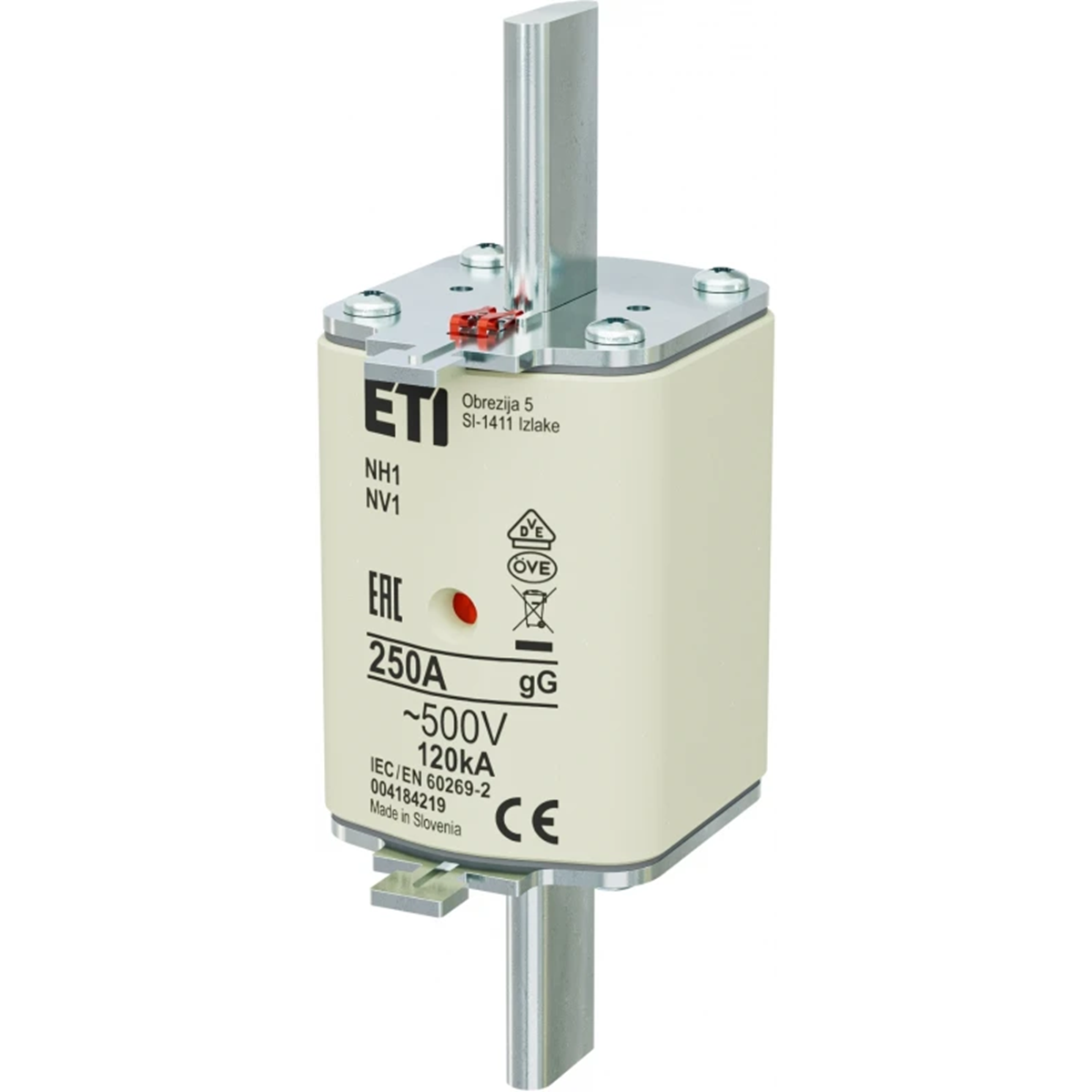

Name: Industrial slow-blow fuse link NH1 gG 250A/500V
Brand: ETI POLAM
SKU: ABM156ETIP
Price: 7.32 PLN
Availability: InStock

NH1 gG 250A/500 - is a series of fuse links with a double actuation indicator. Fusible links are designed to protect power installations against the effects of short circuits and overloads.

They comply with the requirements of the following standards:

PN-93/E-06160 (gF),
PN-IEC-269, VDE 0636.

Characteristic

gG
Type

NH
Short-circuit breaking capacity [kA]

120
PKWIU

27.12.21.0

Rated current [A]

250
Size

NH1
AC rated voltage [V]

500

Other technical data

Voltage type

AC
Rated switching capacity

120 kA
Type of fuse status indicator

Combination fuse status indicator

Rated current

250 A
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

A kind of package	Pudełko	Pudełko
Quantity	3 pcs.	24 pcs.
Weight (kg)	0,370	10,900
Volume (m3)	0,000	0,017
Width (m)	0,139	0,295
Length (m)	0,150	0,235
Depth (m)	0,065	0,245
