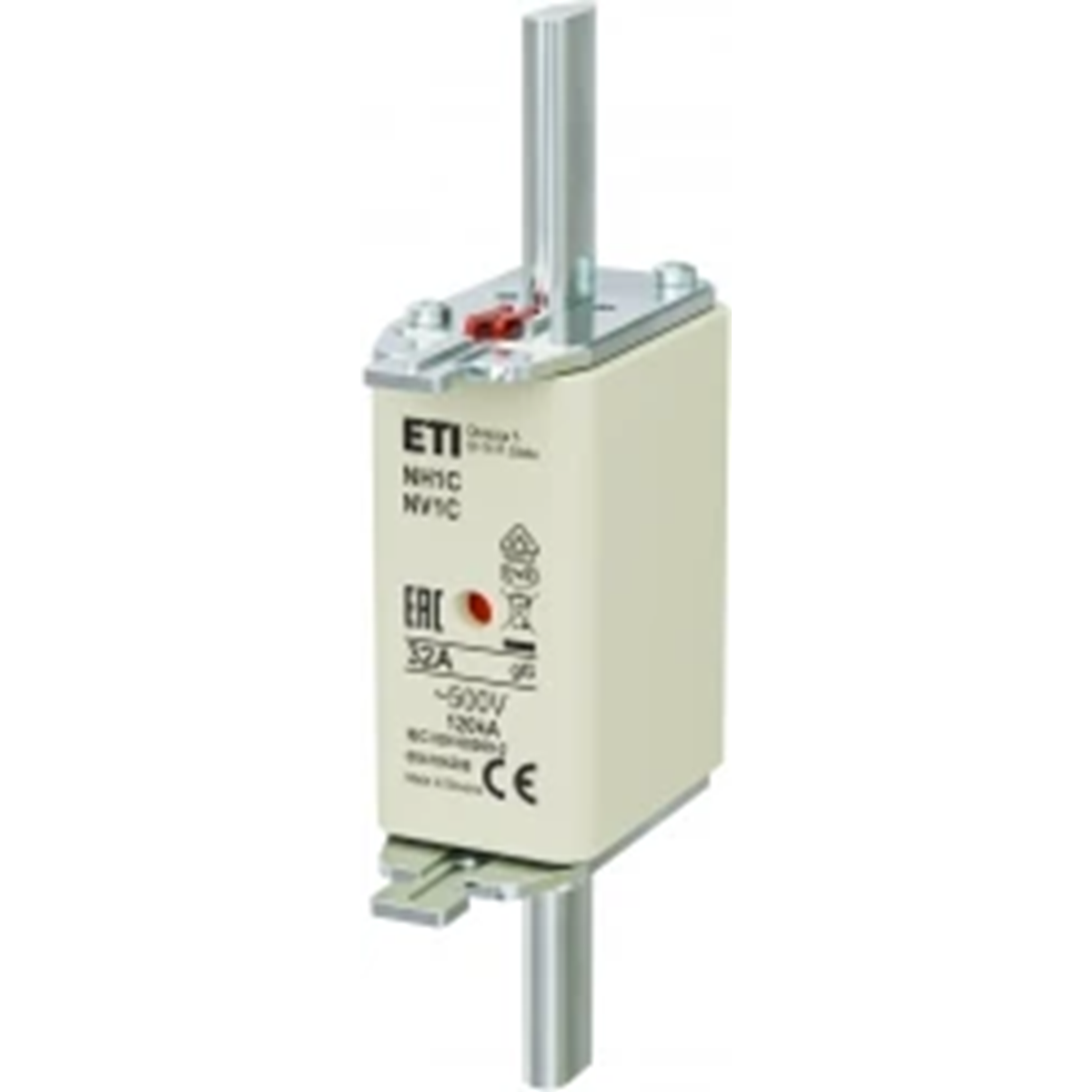

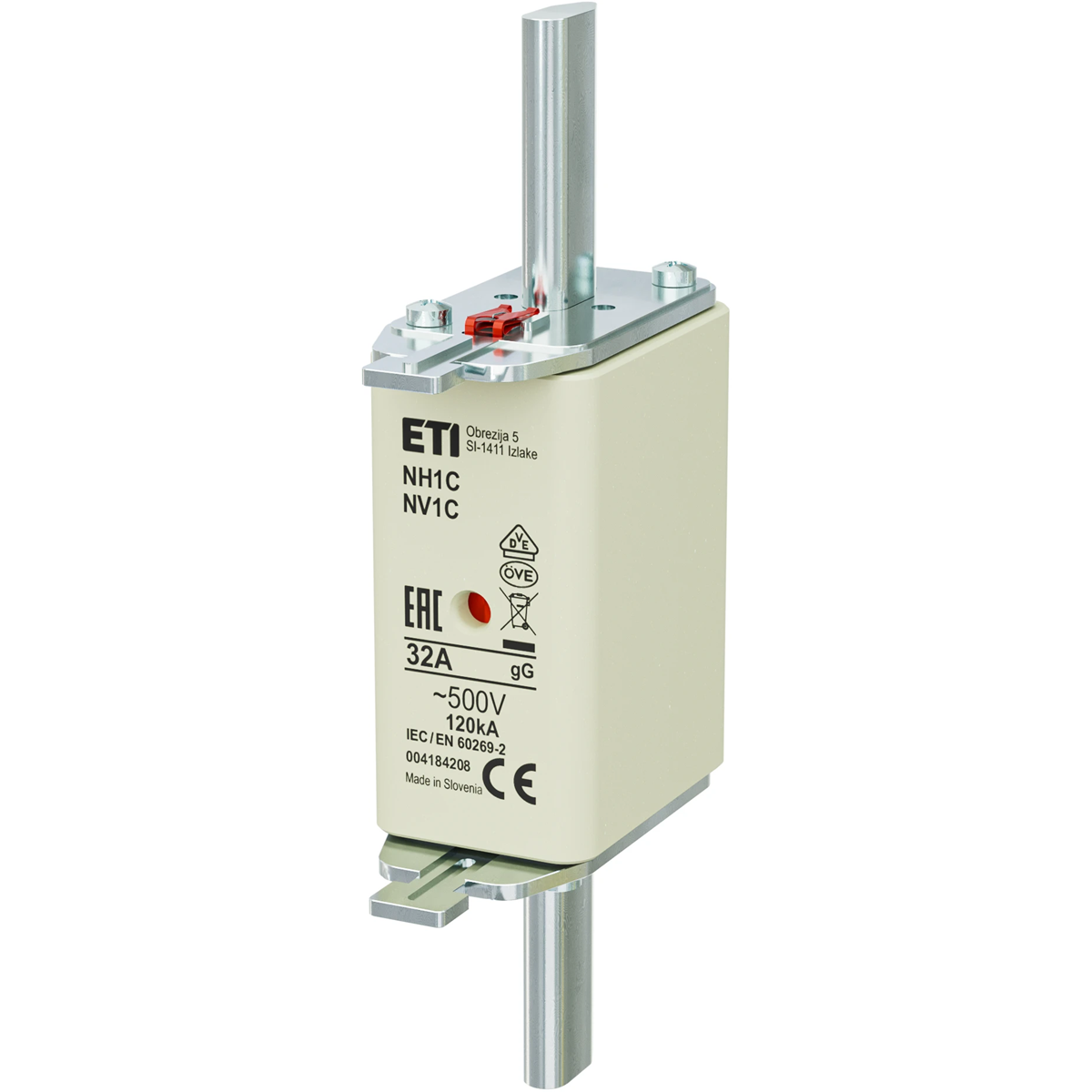

Industrial slow-blow fuse link KOMBI NH1C gG 32A/500V 004184208

local index:
ABM151ETIP
Catalog No:
004184208
EAN code:
3838895354062
Manufacturer: ETI POLAM
Characteristic: gG
Rated voltage [V]: 500
Rated current [A]: 32
Price:
7,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 51 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The slow-blow fuse link is the right choice if you want to protect your devices against a momentary voltage spike. Used where there is a short-term overload (e.g. the moment of connecting a new power supply device to the network. A fuse with a slow-blow fuse link can withstand a momentary increase in voltage and not turn off the entire network, despite a temporary overload. This is due to the loop located in the insert, which can accumulate energy for some time.

Technical data

  • Characteristic
    gG
  • Rated current [A]
    32
  • Size
    NH1C
  • Indicator
    KOMBI double indicator
  • Rated voltage [V]
    500
  • Type
    NH
  • Short-circuit breaking capacity [kA]
    120
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    32 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 45 pcs.
Weight (kg) 0,750 -
Volume (m3) 0,001 -
Width (m) 0,139 0,295
Length (m) 0,150 0,235
Depth (m) 0,065 0,245
