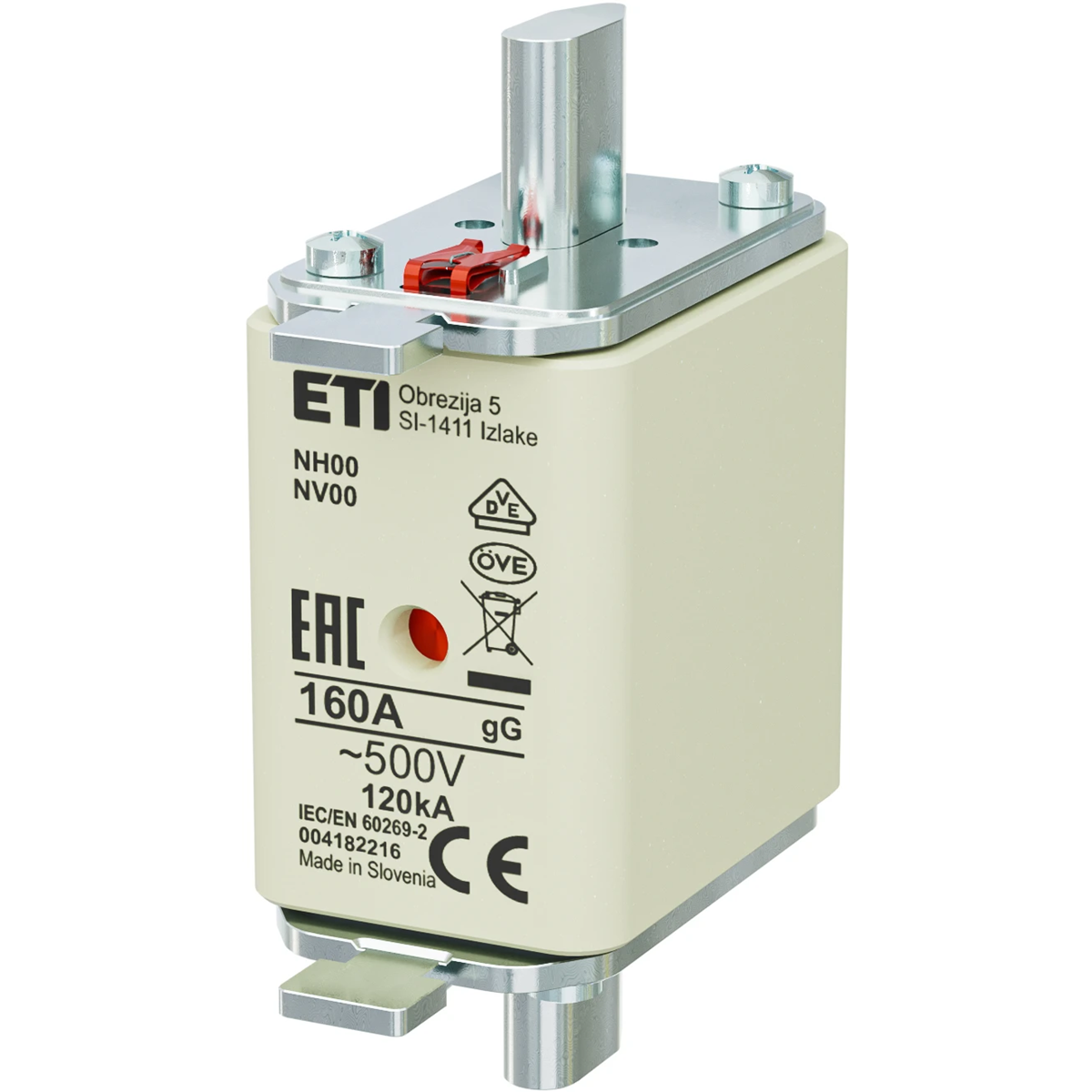

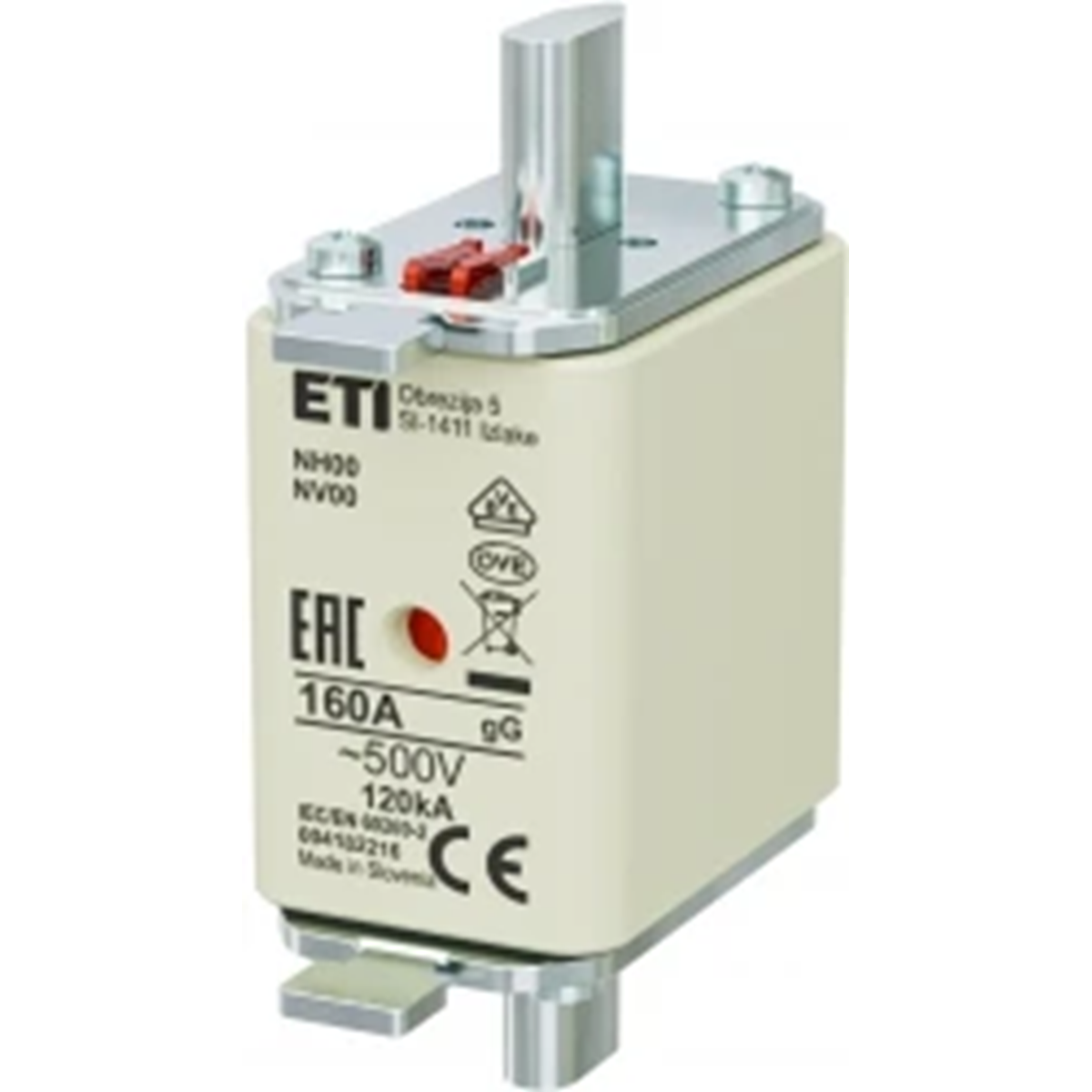

Industrial slow-blow fuse link KOMBI NH000 gG 160A/500V 004182216

local index:
ABI159ETIP
Catalog No:
004182216
EAN code:
3838895353676
Manufacturer: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 160
Size: NH000
Price:
7,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 87 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The slow-blow fuse link is the right choice if you want to protect your devices against a momentary voltage spike. Used where there is a short-term overload (e.g. the moment of connecting a new power supply device to the network. A fuse with a slow-blow fuse link can withstand a momentary increase in voltage and not turn off the entire network, despite a temporary overload. This is due to the loop located in the insert, which can accumulate energy for some time.

Technical data

  • Rated voltage [V]
    500
  • Size
    NH000
  • Size
    NH000
  • Indicator
    KOMBI double indicator
  • Rated current [A]
    160
  • Type
    NH
  • Short-circuit breaking capacity [kA]
    120
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    160 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Manufacturer details

Bulk packaging

A kind of package Pudełko Pudełko Pudełko Pudełko
Quantity 3 pcs. 90 pcs. 3 pcs. 90 pcs.
Weight (kg) 0,510 15,300 0,510 15,300
Volume (m3) 0,001 0,017 0,001 0,017
Width (m) 0,081 0,230 0,081 0,230
Length (m) 0,065 0,250 0,065 0,250
Depth (m) 0,093 0,290 0,093 0,290
