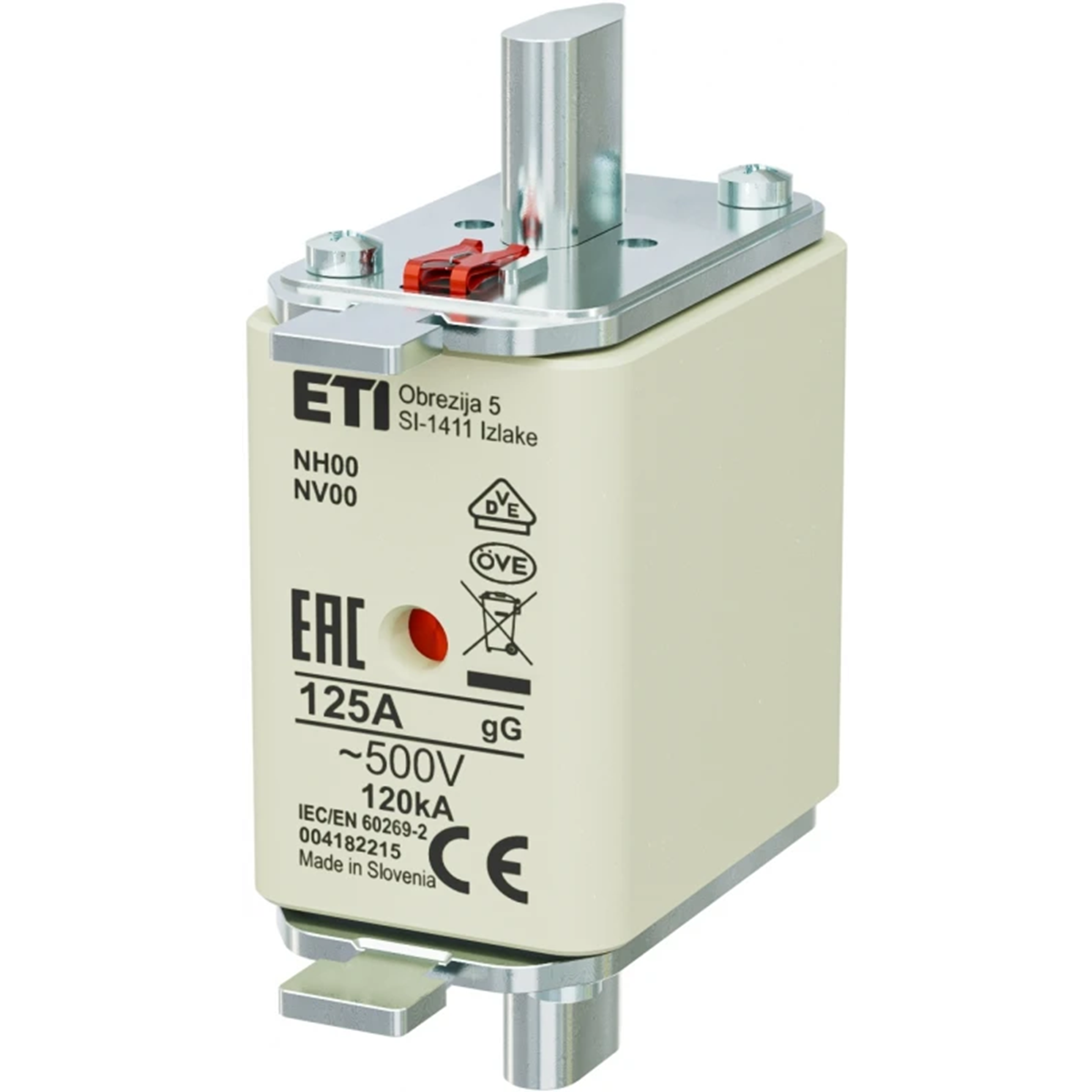

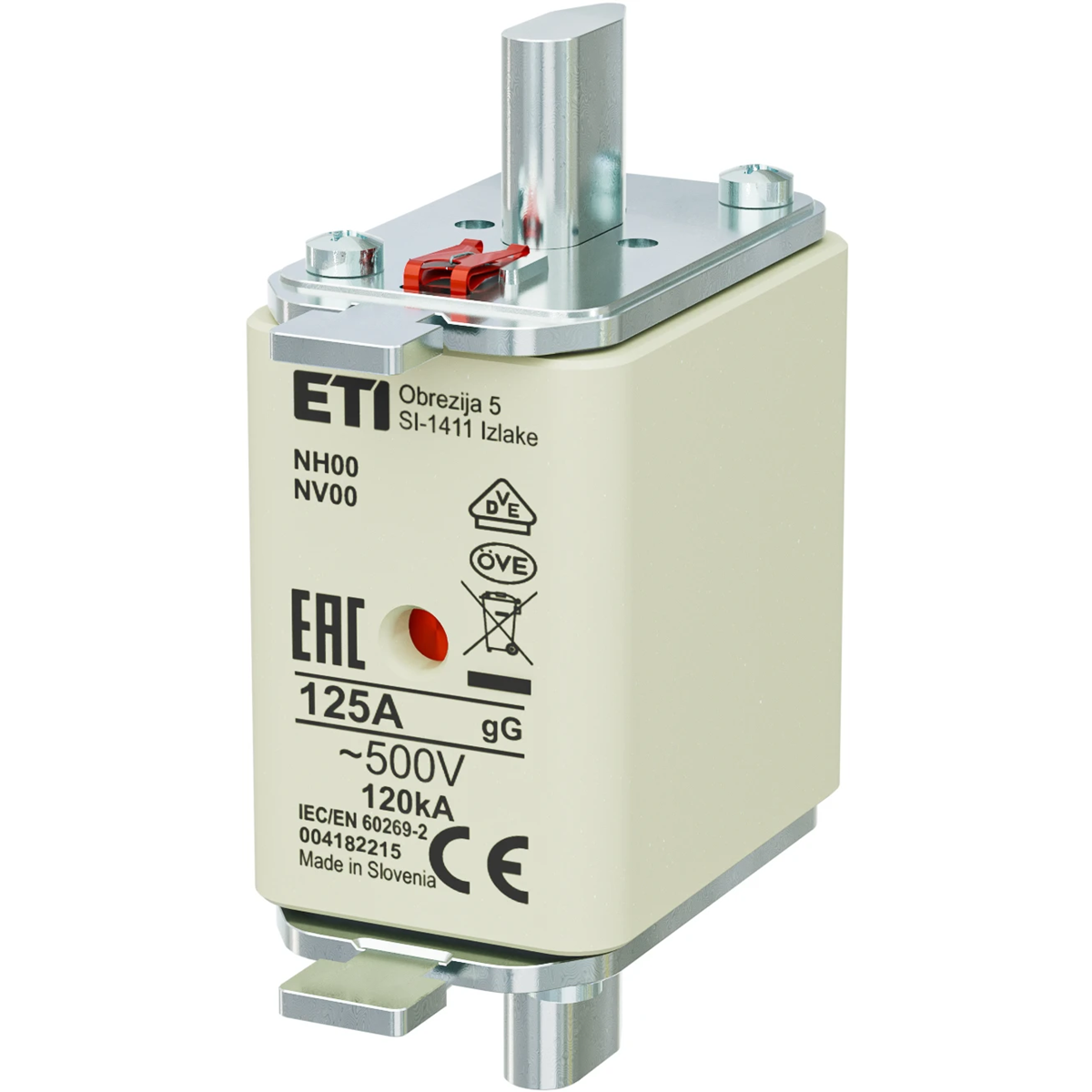

Industrial slow-blow fuse link KOMBI NH000 gG 125A/500V 004182215

Index local:
ABM182ETIP
Numéro de catalogue:
004182215
Code EAN:
3838895353669
Producteur: ETI POLAM
Characteristic: gG
Rated voltage [V]: 500
Rated current [A]: 125
Prix:
7,18 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Accessible 136 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

The slow-blow fuse link is the right choice if you want to protect your devices against a momentary voltage spike. Used where there is a short-term overload (e.g. the moment of connecting a new power supply device to the network. A fuse with a slow-blow fuse link can withstand a momentary increase in voltage and not turn off the entire network, despite a temporary overload. This is due to the loop located in the insert, which can accumulate energy for some time.

Données techniques

  • Characteristic
    gG
  • Rated current [A]
    125
  • Size
    NH000
  • Indicator
    KOMBI double indicator
  • Rated voltage [V]
    500
  • Type
    NH
  • Short-circuit breaking capacity [kA]
    120
  • PKWIU
    27.12.21.0

Autres données techniques

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    125 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Détails du fabricant

Emballage en vrac

Une sorte de paquet Pudełko Pudełko
Quantité 1 pcs. 3 pcs. 90 pcs.
poids (kg) 0,170 0,510 15,300
Volume (m3) 0,000 0,001 0,017
Largeur (m) 0,030 0,081 0,230
Longueur (m) 0,079 0,065 0,250
Profondeur (m) 0,056 0,093 0,290
