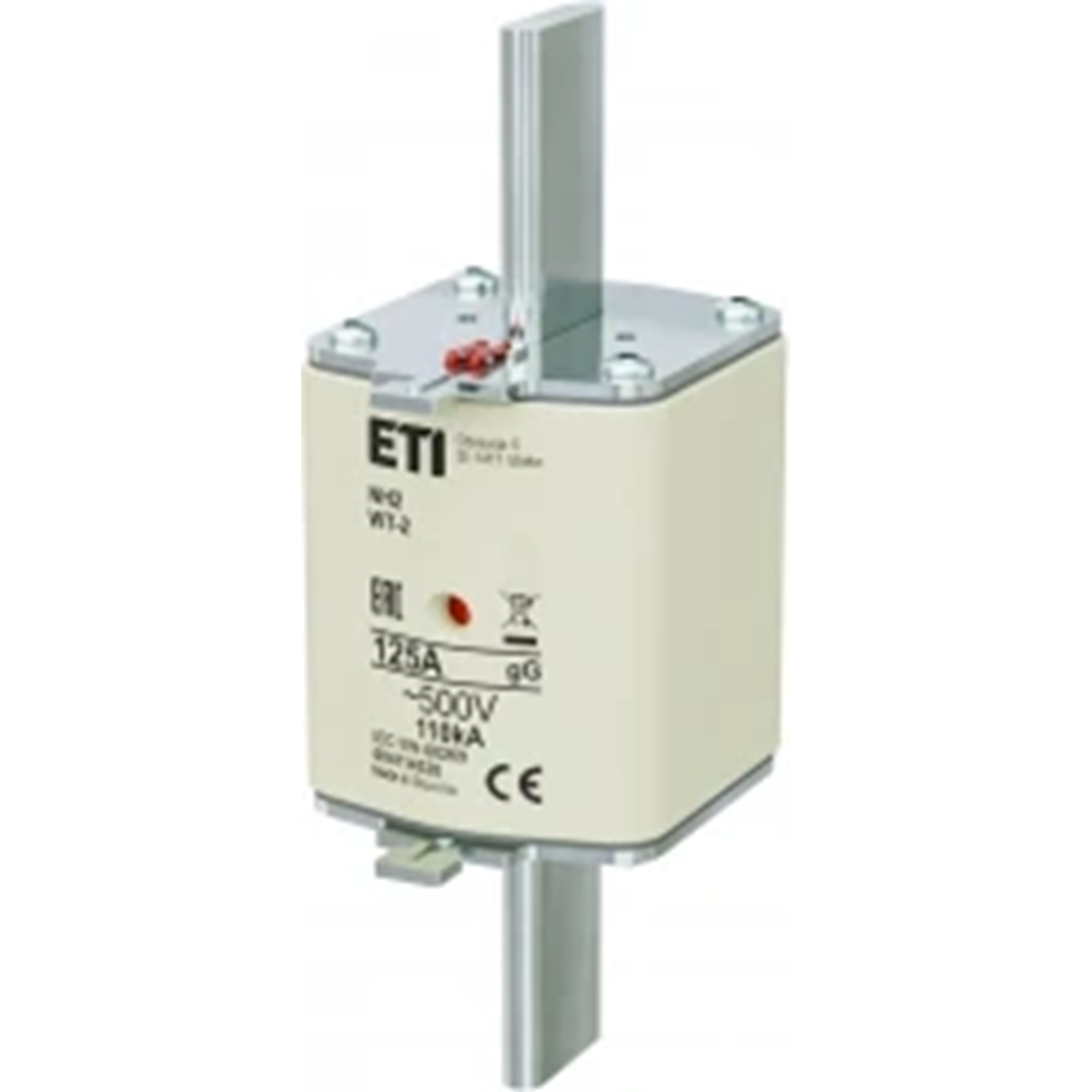

Industrial slow-blow fuse-link, G WT-2/gG 125A G 004114520

local index:
ABM106ETIP
Catalog No:
004114520
EAN code:
5904722992764
Manufacturer: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 125
Pieces in the package: 3
Price:
68,56 €
gross / pkg.
(including VAT 23%)
22,85 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1, 3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Technical data

  • Rated voltage [V]
    500
  • Pieces in the package
    3
  • Rated short-circuit capacity [kA]
    115, 120
  • Rated current [A]
    125
  • Weight [g]
    586
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    115 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    125 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
