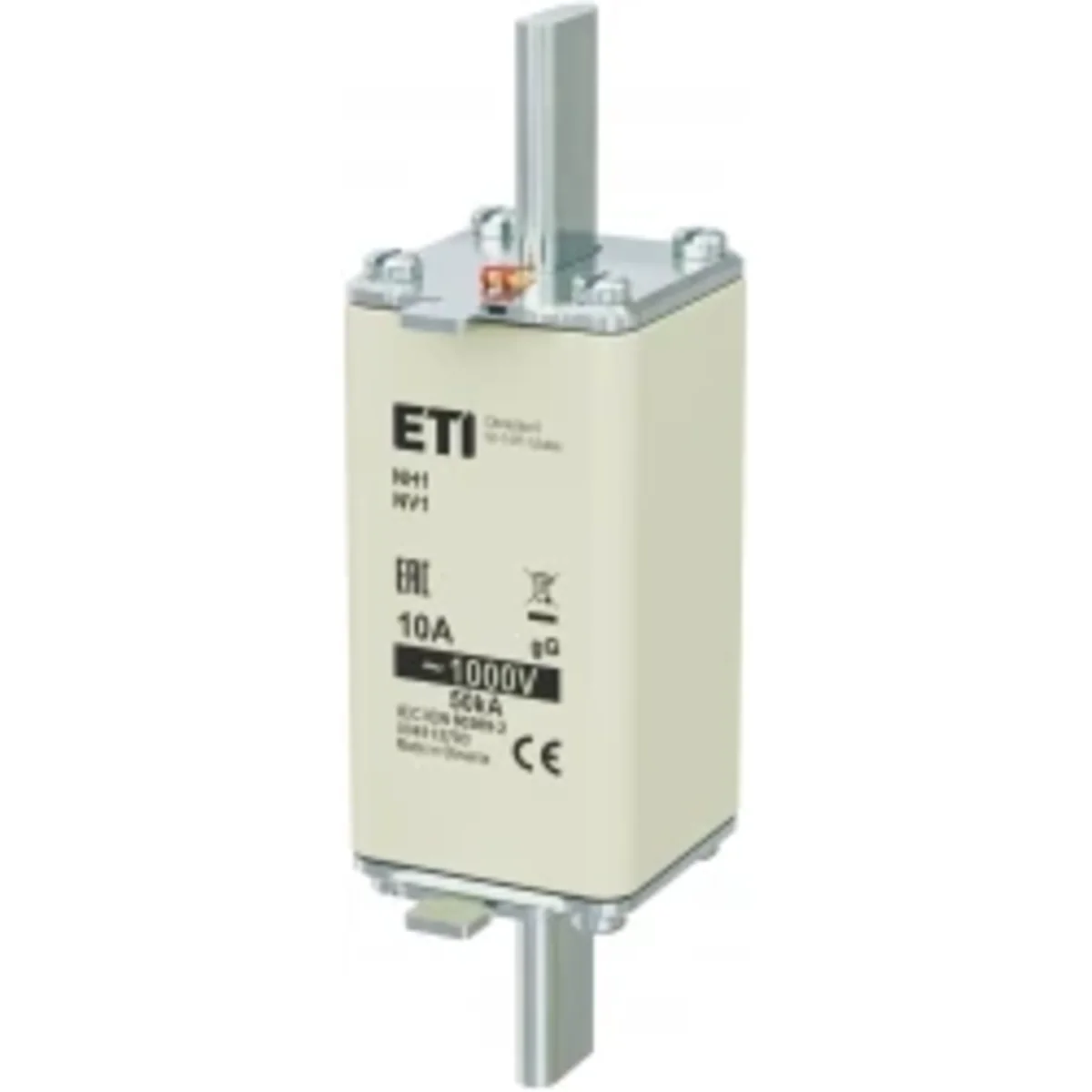

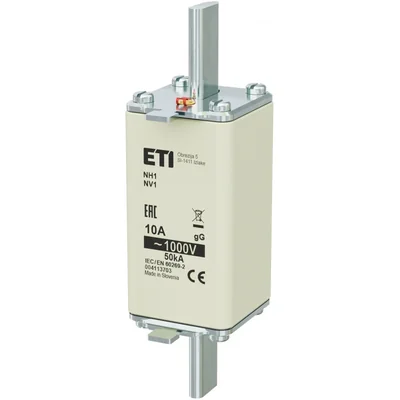

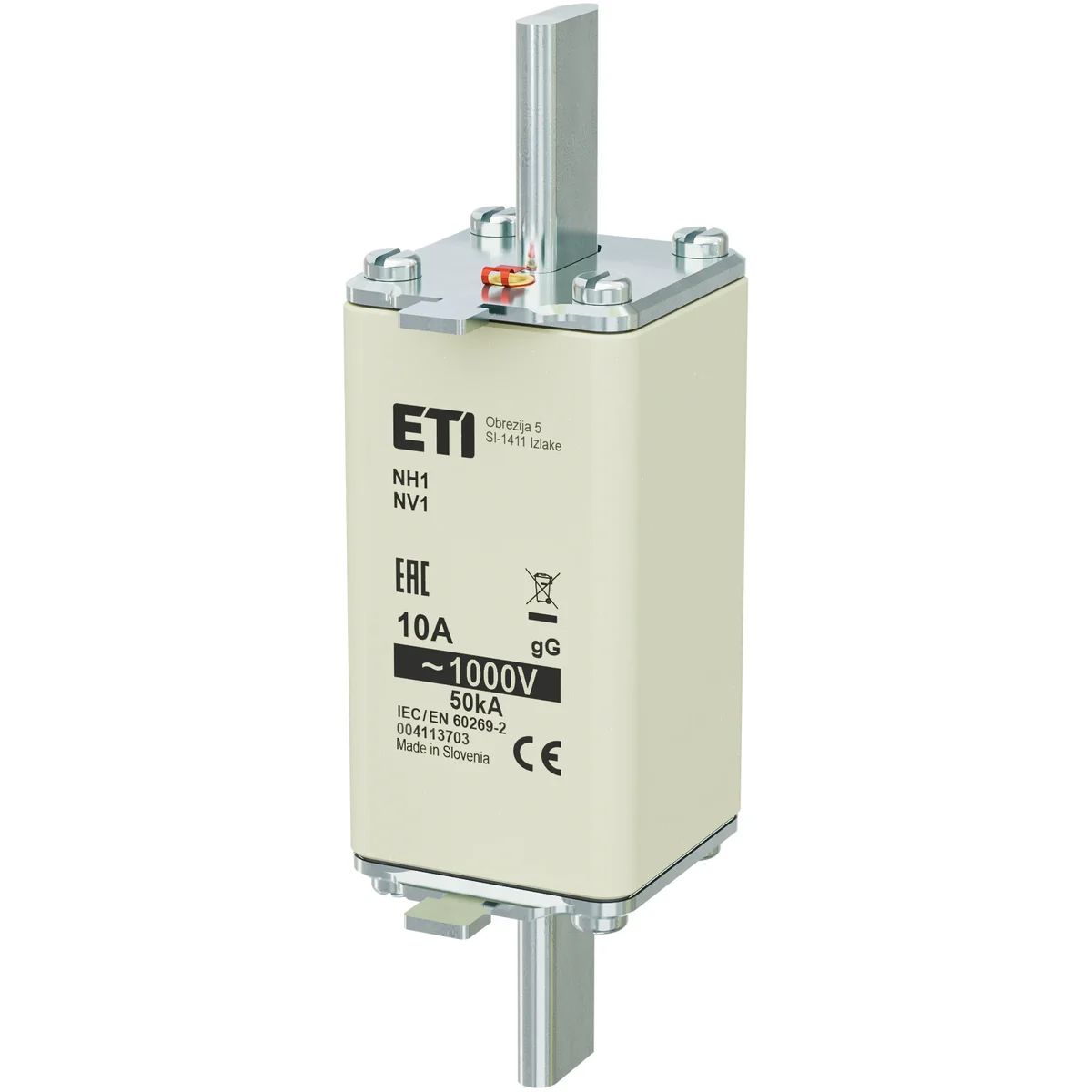

Industrial slow-acting fuse-link WT-1/gG 10A 1000 004113703

local index:
ABM150ETIP
Catalog No:
004113703
EAN code:
5904722911123
Manufacturer: ETI POLAM
Rated voltage [V]: 1000
Rated current [A]: 10
Weight [g]: 487
Price:
29,78 €
gross / pcs.
(including VAT 23%)
61,15 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1.3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Technical data

  • Rated voltage [V]
    1000
  • Weight [g]
    487
  • PKWIU
    27.12.21.0
  • Rated current [A]
    10
  • Rated short-circuit capacity [kA]
    115, 120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    50 kA
  • Rated current
    10 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 12 pcs.
Weight (kg) 1,450 -
Volume (m3) 0,001 -
Width (m) 0,140 -
Length (m) 0,143 -
Depth (m) 0,070 -
