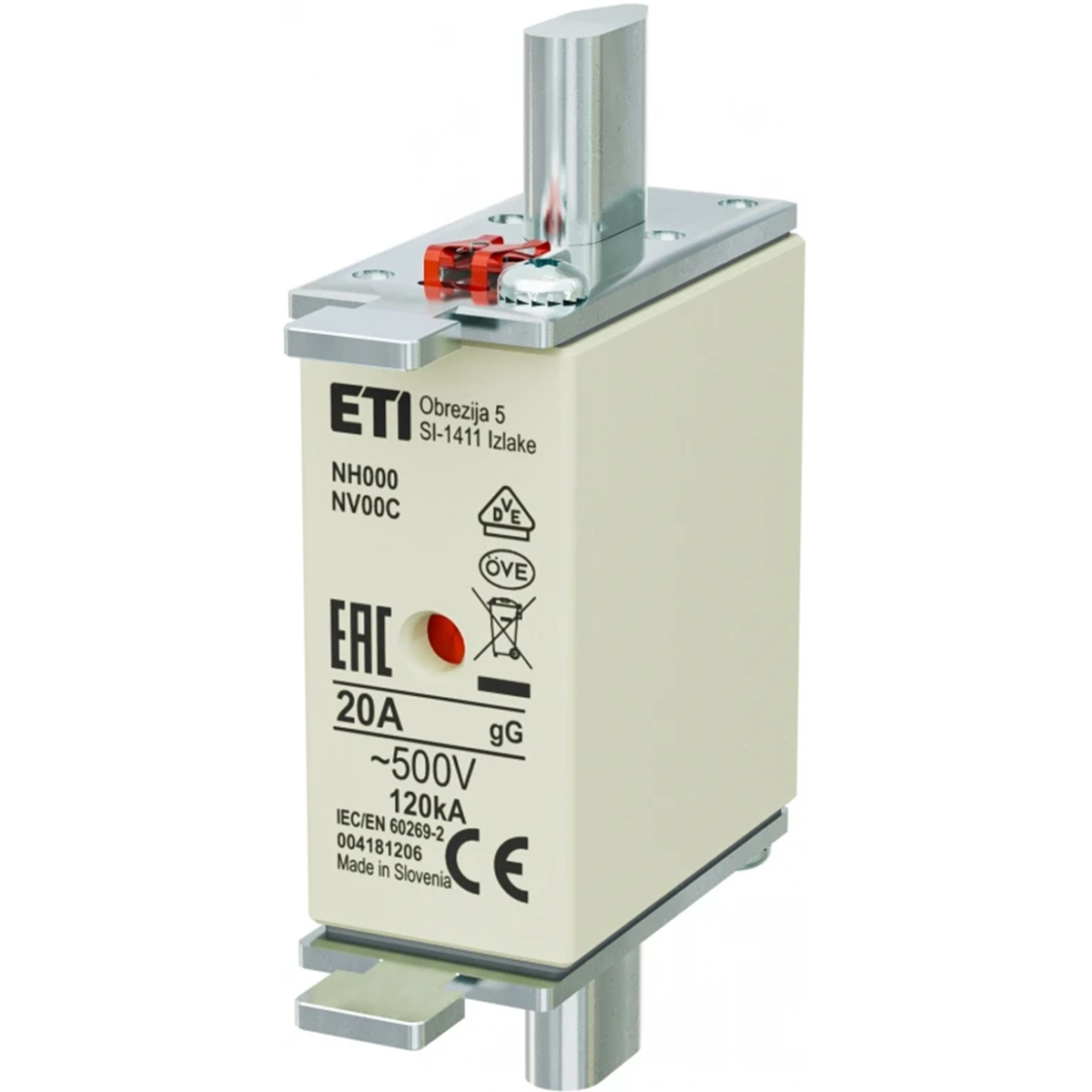

Industrial fuse link WT/NH-00C KOMBI gG 20A 500 - delayed 004181206

local index:
ABM058ETIP
Catalog No:
004181206
EAN code:
3838895353300
Manufacturer: ETI POLAM
Model: WT/NH-00C COMBI gG/gL 20A 500
Rated voltage [V]: 500
Rated current [A]: 20
Price:
4,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 95 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Industrial fuse links are designed to protect electrical installations against the effects of short circuits and overloads. The operation of the gG slow-blow fuse-link at small overloads is slower than that of fast-acting fuse-links, and very fast in the event of a short-circuit. They have a double activation indicator and are mounted in the fuse bases with the use of an insulating holder. Insulation class C-VDE 0110.

Technical data

  • Model
    WT/NH-00C COMBI gG/gL 20A 500
  • Rated current [A]
    20
  • Application
    Securing electrical devices and installations
  • Rated voltage [V]
    500
  • Type
    Industrial porcelain fuse link
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    20 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 3 pcs. 120 pcs.
Weight (kg) 0,370 -
Volume (m3) 0,000 -
Width (m) 0,065 0,295
Length (m) 0,085 0,235
Depth (m) 0,058 0,245
