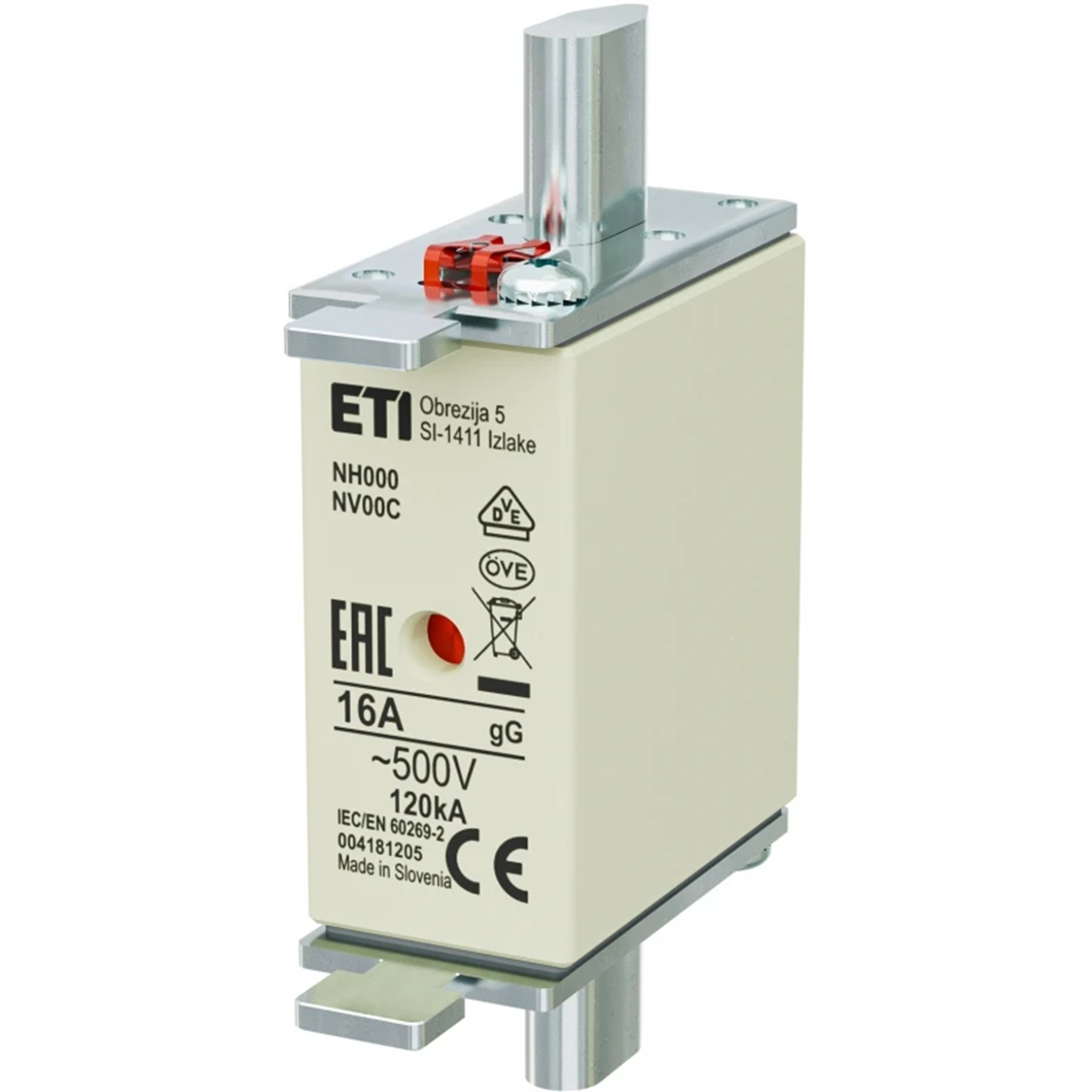

Industrial fuse link WT/NH-00C KOMBI gG 16A 500 - delayed 004181205

Index local:
ABM056ETIP
Numéro de catalogue:
004181205
Code EAN:
3838895353294
Producteur: ETI POLAM
Model: WT/NH-00C ESTATE gG/gL 16A 500
Rated voltage [V]: 500
Rated current [A]: 16
Prix:
19,62 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Accessible 87 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Industrial fuse links are designed to protect electrical installations against the effects of short circuits and overloads. The operation of the gG slow-blow fuse-link at small overloads is slower than that of fast-acting fuse-links, and very fast in the event of a short-circuit. They have a double activation indicator and are mounted in the fuse bases with the use of an insulating holder. Insulation class C-VDE 0110.

Données techniques

  • Model
    WT/NH-00C ESTATE gG/gL 16A 500
  • Rated current [A]
    16
  • Application
    Securing electrical devices and installations
  • Rated voltage [V]
    500
  • Type
    Industrial porcelain fuse link
  • PKWIU
    27.12.21.0

Autres données techniques

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    16 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

Détails du fabricant

Emballage en vrac

Une sorte de paquet Pudełko Pudełko
Quantité 3 pcs. 120 pcs.
poids (kg) 0,360 14,400
Volume (m3) 0,000 0,017
Largeur (m) 0,052 0,230
Longueur (m) 0,065 0,250
Profondeur (m) 0,080 0,290
