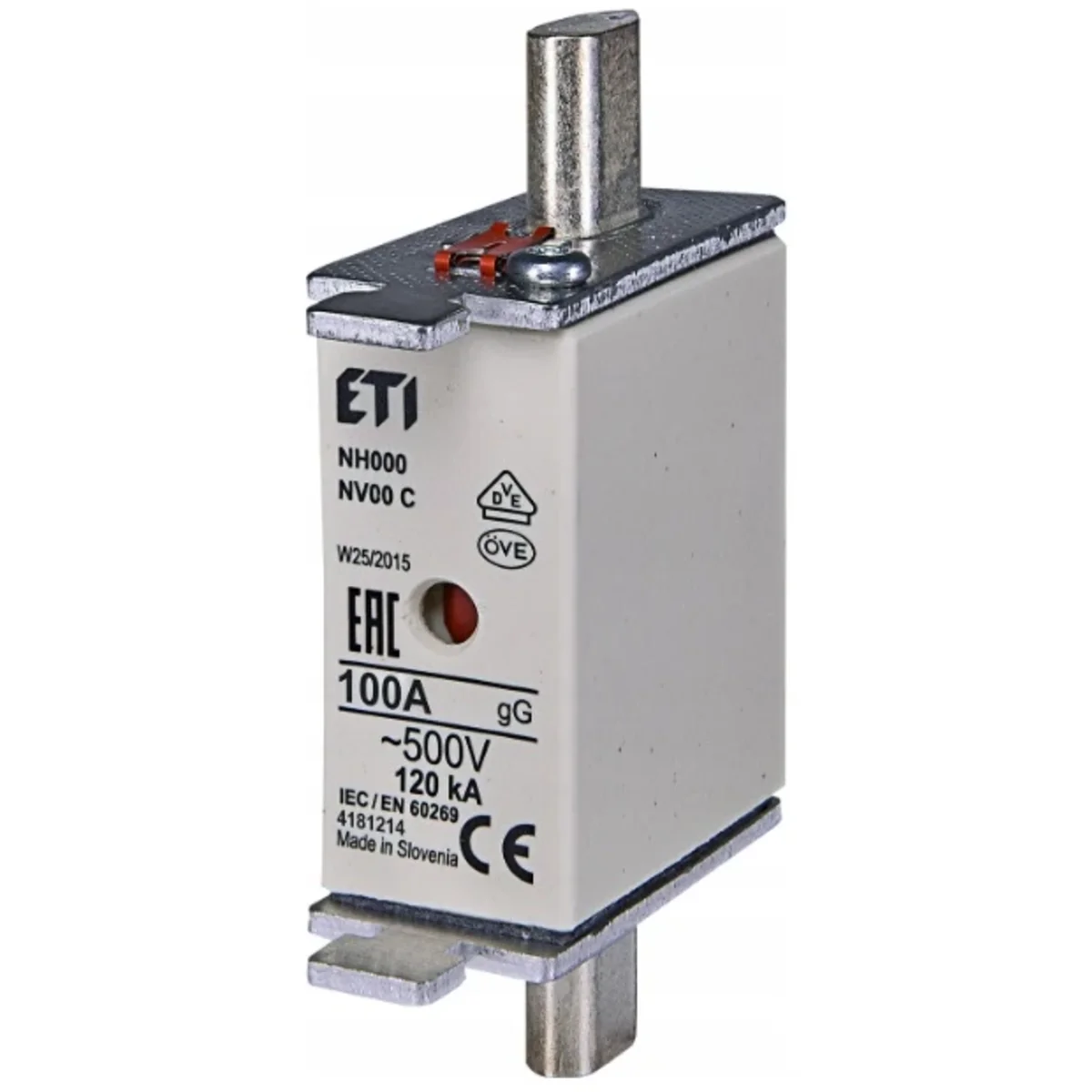

Industrial fuse link WT/NH-00C KOMBI gG 100A 500 - delayed. Industrial fuse links are designed to protect electrical installations against the effects of short circuits and overloads. The operation of the gG slow-blow fuse-link at small overloads is slower than that of fast-acting fuse-links, and very fast in the event of a short-circuit. They have a double activation indicator and are mounted in the fuse bases with the use of an insulating holder. Insulation class C-VDE 0110.

Model

WT/NH-00C COMBI gG/gL 100A 500
Rated current [A]

100
Application

Securing electrical devices and installations

Rated voltage [V]

500
Type

Industrial porcelain fuse link
PKWIU

27.12.21.0

Other technical data

Voltage type

AC
Rated switching capacity

120 kA
Type of fuse status indicator

Combination fuse status indicator

Rated current

100 A
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

A kind of package	Pudełko	Pudełko
Quantity	3 pcs.	120 pcs.
Weight (kg)	0,370	-
Volume (m3)	0,000	-
Width (m)	0,065	0,295
Length (m)	0,085	0,235
Depth (m)	0,058	0,245
