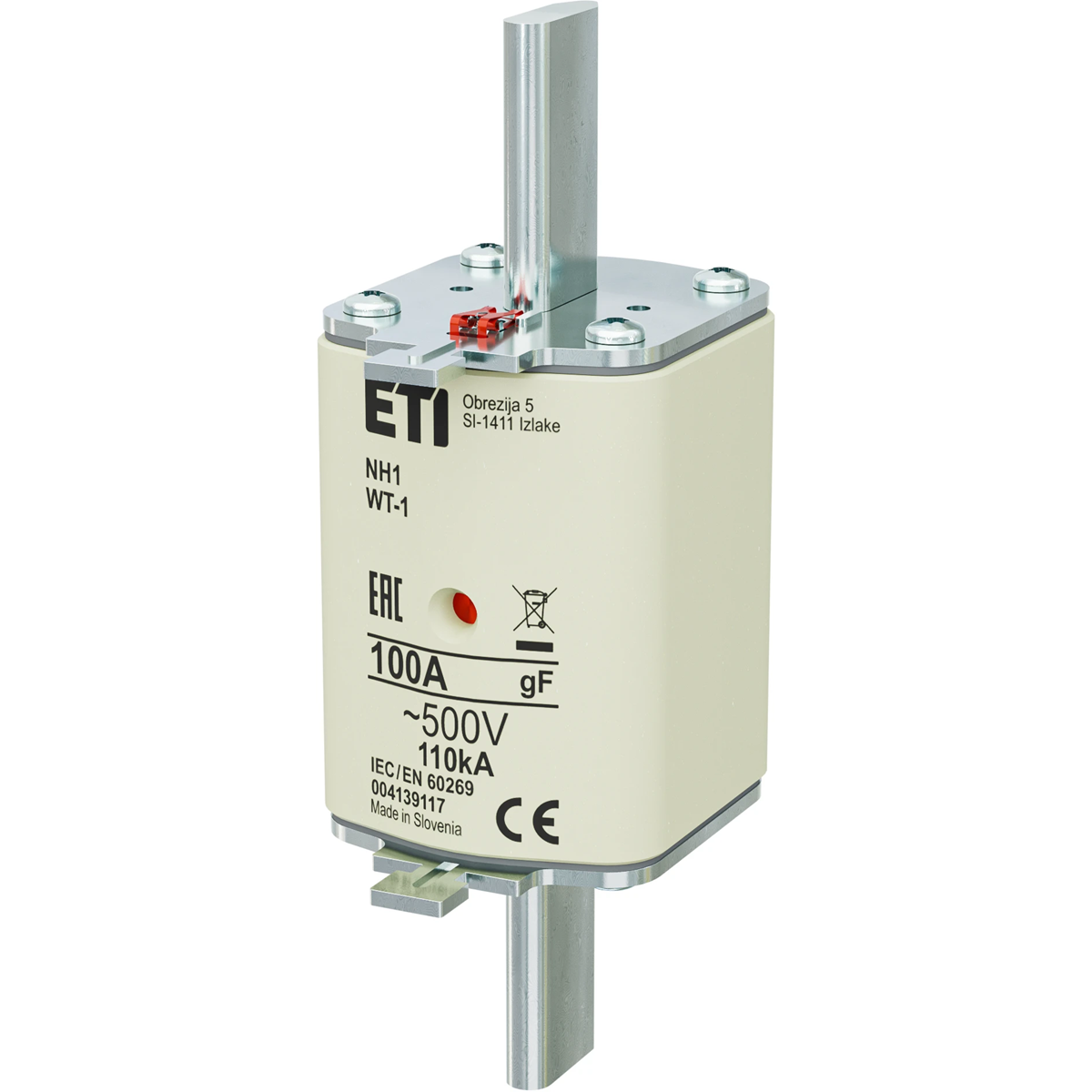

Industrial fuse-link Wt-1/gF 100A 500 - fast 004139117

Lokaler Index:
ABM568ETIP
Katalognummer:
004139117
EAN-Code:
5904722992115
Hersteller: ETI POLAM
Characteristic: gF
Rated voltage [V]: 500
Rated current [A]: 100
Preis:
49,74 zł
gross / stk.
(inklusive MwSt 23%)
117,04 zł gross/kg.
Lieferung in 3h
bis zu 2 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Industrial fuse links are designed to protect electrical installations against the effects of short circuits and overloads. Fuse-links with fast gF characteristics are intended for use in rural power lines - where, due to scattered buildings, small cross-sections of wires, low short-circuit powers of transformers, short-circuit currents may be small, and thus their tripping time by the fuse-link delayed - long. The operation of the gG slow-blow fuse-link at small overloads is slower than that of fast-acting fuse-links, and very fast in the event of a short-circuit. They have a trip indicator and are mounted in the fuse bases with an insulating holder. Insulation class C-VDE 0110.

Technische Daten

  • Characteristic
    gF
  • Rated current [A]
    100
  • Rated short-circuit capacity [kA]
    110
  • Rated voltage [V]
    500
  • Weight [g]
    425
  • PKWIU
    27.12.21.0

Weitere technische Daten

  • Voltage type
    AC
  • Rated switching capacity
    110 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    100 A
  • Utilization category
    Other

Hersteller-Details

Großpackungen

Eine Art Paket Pudełko Pudełko
Menge 3 stk. 24 stk.
Gewicht (kg) 1,260 10,080
Volumen (m3) 0,001 0,017
Breite (m) 0,065 0,230
Länge (m) 0,139 0,250
Tiefe (m) 0,150 0,290
