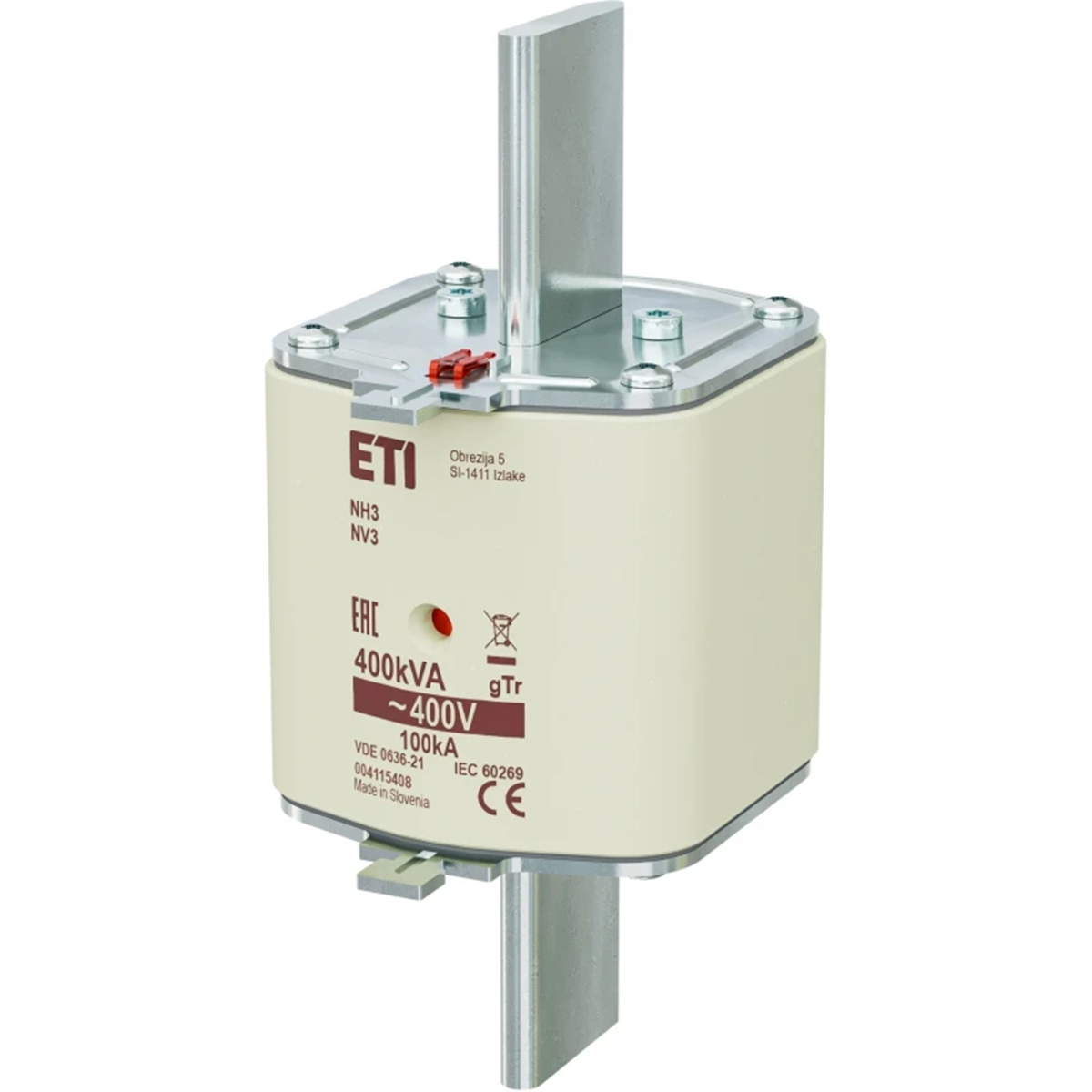

Industrial fuse-link - transformer WT-3 gTr 400kVA 400 004115408

local index:
ABM108ETIP
Catalog No:
004115408
EAN code:
5904722988897
Manufacturer: ETI POLAM
Rated voltage [V]: 400
Pieces in the package: 3
Weight [g]: 510
Price:
109,95 €
gross / pkg.
(including VAT 23%)
36,65 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The characteristics of the WT-gTr fuse-links are matched to the characteristics of the transformer loads and the characteristics of high-voltage fuses.
- The fuse-links are marked according to the transformer power in [kVA]
- They enable the use of overload capacity (1.3 x In)
- Trip at 1.5 x In occurs within 2 hours
- Rated voltage 400, 50Hz
- Utilization category: gTr according to VDE 0636/2011
- Short-circuit breaking capacity [kA]: - 100 kA

Technical data

  • Rated voltage [V]
    400
  • Weight [g]
    510
  • PKWIU
    27.12.21.0
  • Pieces in the package
    3
  • Rated short-circuit capacity [kA]
    100

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    100 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    577 A
  • Utilization category
    Other

Bulk packaging

A kind of package Pudełko Pudełko
Quantity 1 pkg. 4 pkg.
Weight (kg) 2,500 -
Volume (m3) 0,003 -
Width (m) 0,165 -
Length (m) 0,215 -
Depth (m) 0,090 -
