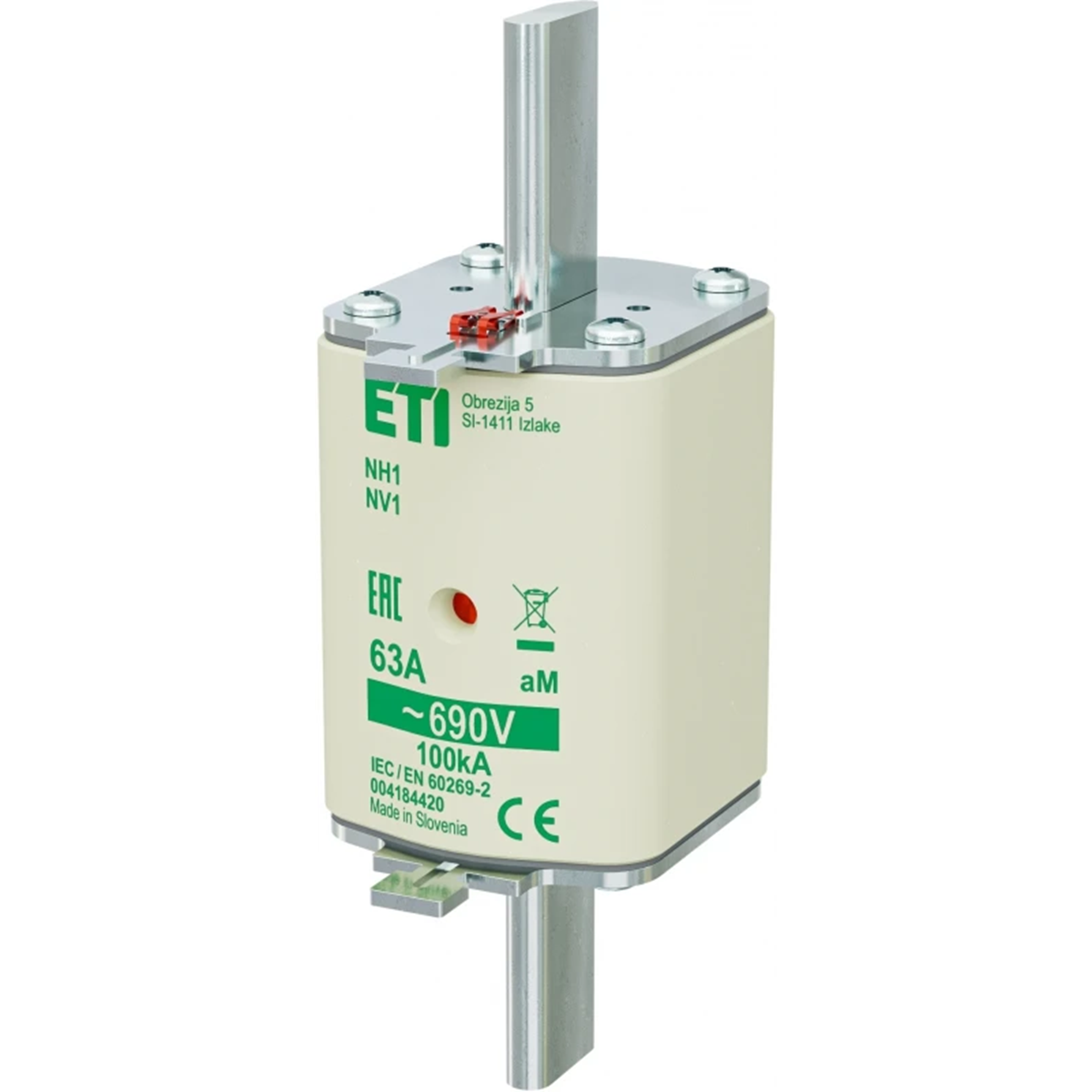

Industrial fuse-links with aM characteristics are designed to protect switchgear and electric motor power supply circuits, because fuse-links with gL or gG characteristics do not provide sufficient protection for these devices. They are made in all standard sizes for all standard rated currents and voltages up to 690 V. Their basic task is to enable full use of the switchgear in the range of inrush currents and to protect the contactor contacts against damage in the event of a short circuit. It should be emphasized that these inserts have a short-circuit characteristic, i.e. they protect devices against short-circuit. They should cooperate with an additional overcurrent device.

Rated voltage [V]

690
Weight [g]

425
PKWIU

27.12.21.0

Rated current [A]

63
Breaking capacity [kA]

100

Other technical data

Voltage type

AC
Rated switching capacity

25 kA

Rated current

63 A
Utilization category

aM (switchgear protection)

A kind of package	Pudełko	Pudełko
Quantity	3 pcs.	24 pcs.
Weight (kg)	1,280	-
Volume (m3)	0,001	-
Width (m)	0,140	-
Length (m)	0,143	-
Depth (m)	0,070	-
