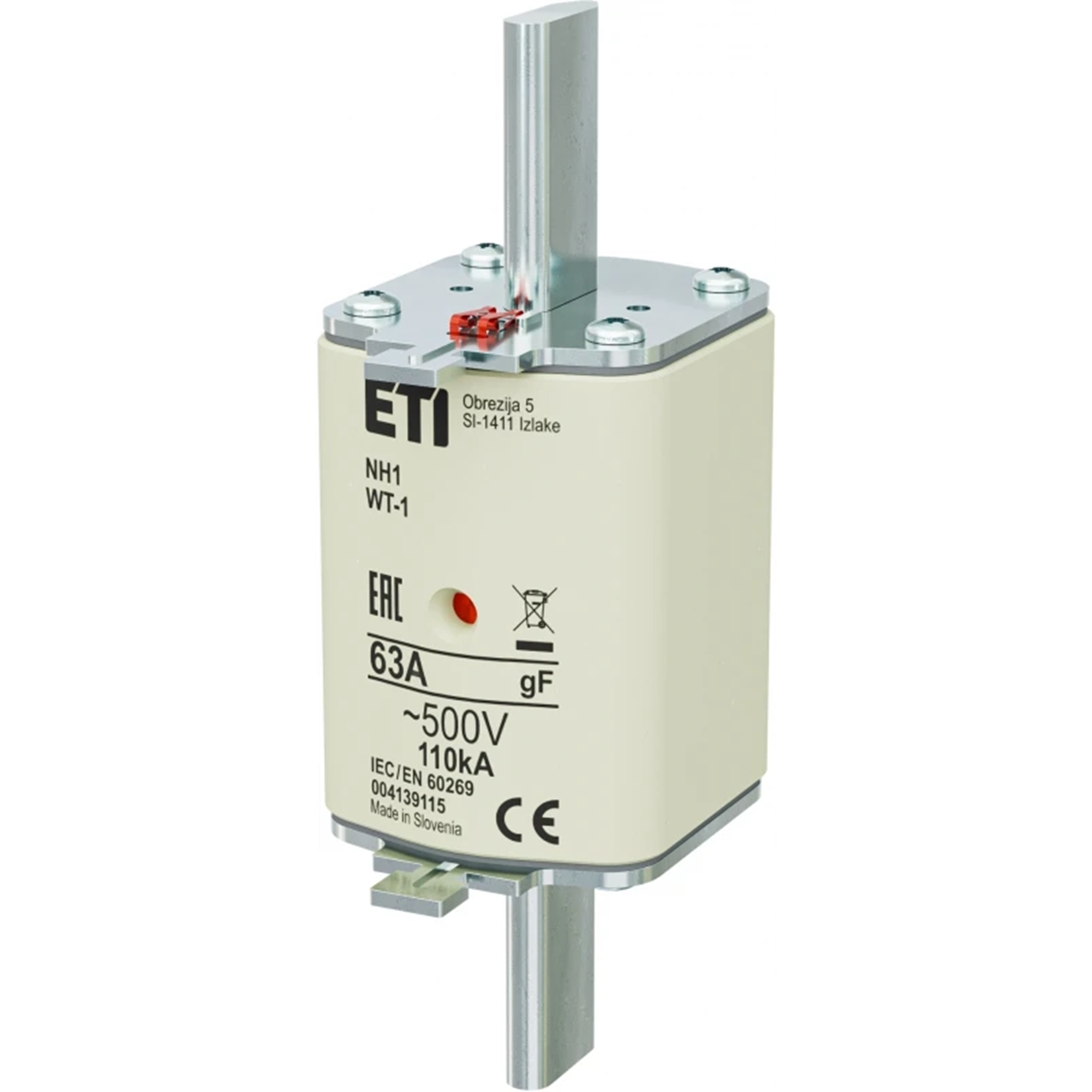

Industrial fast fuse link WT-1/gF 63A 004139115

Lokaler Index:
ABM274ETIP
Katalognummer:
004139115
EAN-Code:
5904722992092
Hersteller: ETI POLAM
Rated voltage [V]: 500
Rated current [A]: 63
Weight [g]: 425
Preis:
49,74 zł
gross / stk.
(inklusive MwSt 23%)
117,04 zł gross/kg.
Lieferung in 3h
bis zu 2 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

The body of the fuse link is made of full-fledged steatite, which is very resistant to thermal loads. Covers made of aluminum are permanently resistant to corrosion. In the inner part of the ceramic body there is a copper fusing element, which is attached to a specially prepared inner part of the knife contact. In addition, the interior of the ceramic body is filled with quartz sand with carefully selected granulation. Knife contacts are made of both copper and brass, and are protected by a layer of silver. The novelties include fuse links with a trip indicator in the frontal part of its body, as well as insulated hooks for inserting and removing fuse-links from the base, and a fuse-link with a striker.

Technische Daten

  • Rated voltage [V]
    500
  • Weight [g]
    425
  • PKWIU
    27.12.21.0
  • Rated current [A]
    63
  • Rated short-circuit capacity [kA]
    115, 120

Weitere technische Daten

  • Voltage type
    AC
  • Rated switching capacity
    110 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    63 A
  • Utilization category
    Other

Hersteller-Details

Großpackungen

Eine Art Paket Pudełko Pudełko
Menge 3 stk. 24 stk.
Gewicht (kg) 1,260 10,080
Volumen (m3) 0,001 0,017
Breite (m) 0,065 0,230
Länge (m) 0,139 0,250
Tiefe (m) 0,150 0,290
